ST162R-BLMVFQ (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

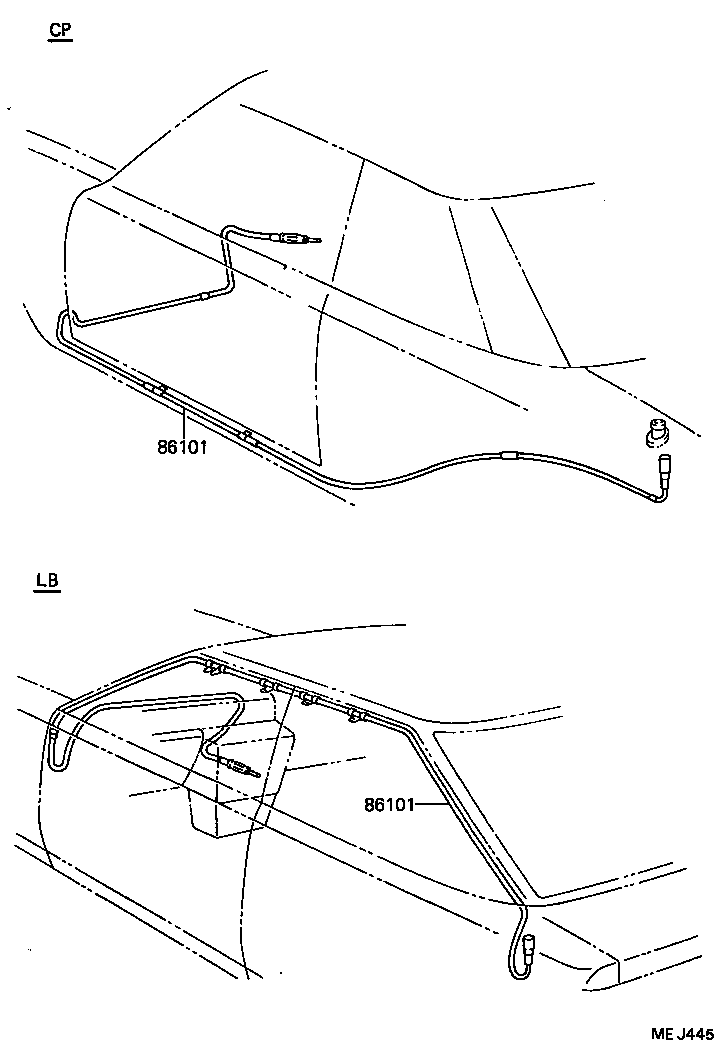

ILLUST NO. 1 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-20210 |
ST162..ARL PLANT NO.=A51-A54 |
1 | ||
| 86101-20150 |
ST162..ARL PLANT NO.=A41,A42 |
1 | ||
| 86101-20320 |
ST162..ARL |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-20210 |
ST162..ARL PLANT NO.=A51-A54 |
1 | ||
| 86101-20150 |
ST162..ARL PLANT NO.=A41,A42 |
1 | ||
| 86101-20320 |
ST162..ARL |
1 | ||

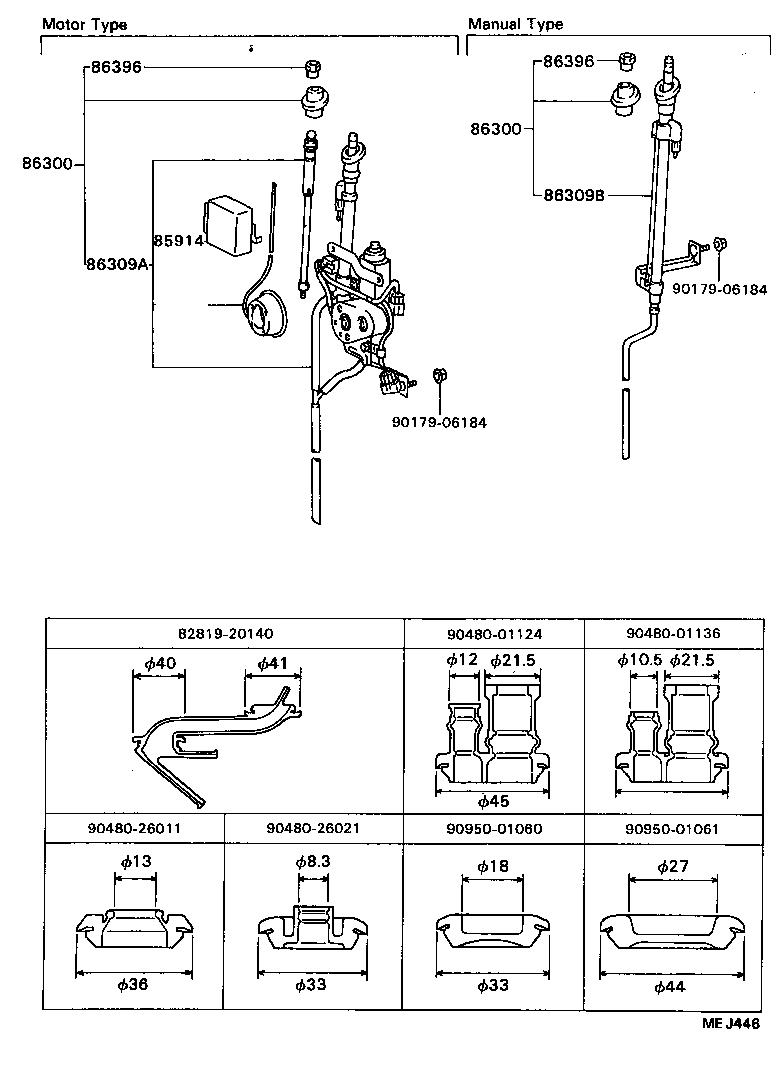

ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85914 - RELAY, MOTOR ANTENNA CONTROL | ||||
| 85914-14020 |
ST162..ARL |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-20220 |
ST162..LB |
1 | ||
| 86300-20290 |
ST162..SX MOTOR ANTENNA---W(REAR SPOILER) |
1 | ||
| 86300-20221 |
ST162..LB |
1 | ||
| 86300-20291 |
ST162..SX MOTOR ANTENNA---W(REAR SPOILER) |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-20220 |
ST162..LB |
1 | ||
| 86300-20290 |
ST162..SX MOTOR ANTENNA---W(REAR SPOILER) |
1 | ||
| 86300-20221 |
ST162..LB |
1 | ||
| 86300-20291 |
ST162..SX MOTOR ANTENNA---W(REAR SPOILER) |
1 | ||
| 86309A - POLE SUB-ASSY, MOTOR ANTENNA | ||||
| 86309-20161 |
ST162..LB |
1 | ||
| 86309-20170 |
ST162..SX W(REAR SPOILER) |
1 | ||
| 86309-20160 |
ST162..LB |
1 | ||
| 86309-20171 |
ST162..SX W(REAR SPOILER) |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-14041 |
ST162..ARL |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-14041 |
ST162..ARL |
1 | ||
| Common parts | ||||
| 82819-20140 | ||||
| 90179-06184 | ||||
| 90480-01124 | ||||
| 90480-01136 | ||||
| 90480-26011 | ||||
| 90480-26021 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
