ST162R-BLMVFQ (1987)
Toyota Celica

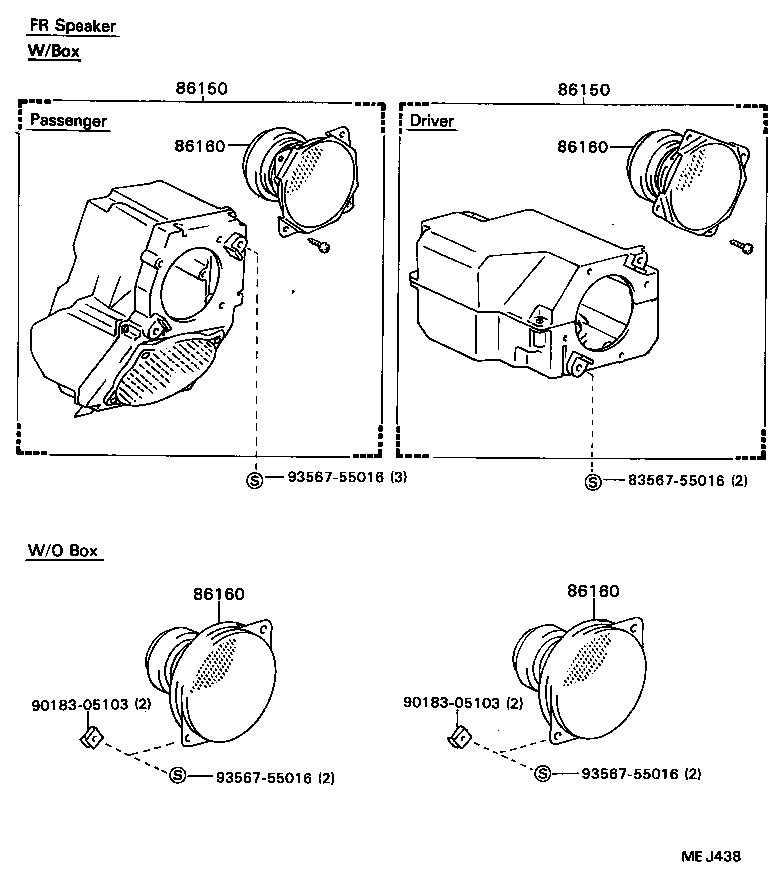

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-20090 |
ST162..SX RR-RH |
1 | ||
| 86150-20100 |
ST162..SX RR-LH |
1 | ||
| 86150-20050 |
ST162..SX FR-RH |
1 | ||
| 86150-20101 |
ST162..SX RR-LH |
1 | ||
| 86150-20060 |
ST162..SX FR-LH |
1 | ||
| 86150-20091 |
ST162..SX RR-RH |
1 | ||
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-20090 |
ST162..SX RR-RH |
1 | ||
| 86150-20100 |
ST162..SX RR-LH |
1 | ||
| 86150-20050 |
ST162..SX FR-RH |
1 | ||
| 86150-20101 |
ST162..SX RR-LH |
1 | ||
| 86150-20060 |
ST162..SX FR-LH |
1 | ||
| 86150-20091 |
ST162..SX RR-RH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-20280 |
ST162..SX W/BOX TYPE |
2 | ||
| 86160-20240 |
ST162..GT,ST W/O BOX TYPE |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-20280 |
ST162..SX W/BOX TYPE |
2 | ||
| 86160-20240 |
ST162..GT,ST W/O BOX TYPE |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-20280 |
ST162..SX W/BOX TYPE |
2 | ||
| 86160-20240 |
ST162..GT,ST W/O BOX TYPE |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-20280 |
ST162..SX W/BOX TYPE |
2 | ||
| 86160-20240 |
ST162..GT,ST W/O BOX TYPE |
2 | ||
| Common parts | ||||
| 83567-55016 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||

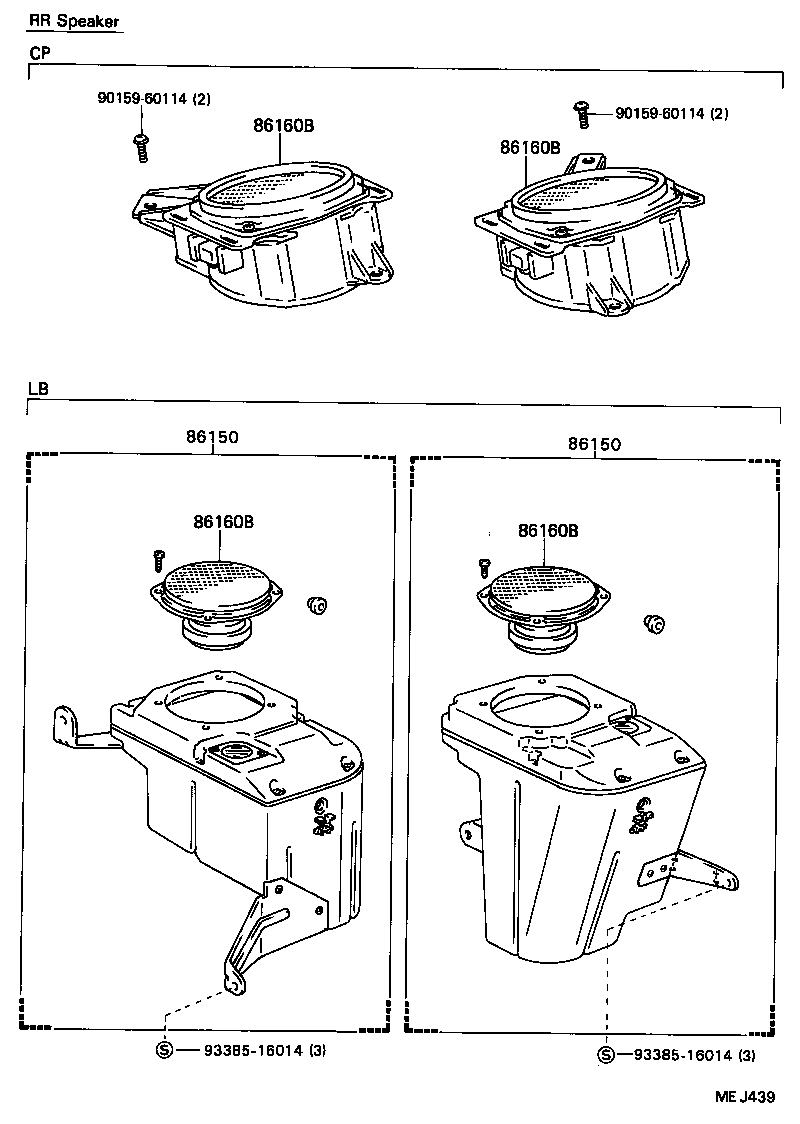

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-20090 |
ST162..SX RR-RH |
1 | ||
| 86150-20100 |
ST162..SX RR-LH |
1 | ||
| 86150-20050 |
ST162..SX FR-RH |
1 | ||
| 86150-20101 |
ST162..SX RR-LH |
1 | ||
| 86150-20060 |
ST162..SX FR-LH |
1 | ||
| 86150-20091 |
ST162..SX RR-RH |
1 | ||
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-20090 |
ST162..SX RR-RH |
1 | ||
| 86150-20100 |
ST162..SX RR-LH |
1 | ||
| 86150-20050 |
ST162..SX FR-RH |
1 | ||
| 86150-20101 |
ST162..SX RR-LH |
1 | ||
| 86150-20060 |
ST162..SX FR-LH |
1 | ||
| 86150-20091 |
ST162..SX RR-RH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20300 |
ST162..SX |
2 | ||
| 86160-20301 |
ST162..SX |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20300 |
ST162..SX |
2 | ||
| 86160-20301 |
ST162..SX |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20300 |
ST162..SX |
2 | ||
| 86160-20301 |
ST162..SX |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20300 |
ST162..SX |
2 | ||
| 86160-20301 |
ST162..SX |
2 | ||
| Common parts | ||||
| 90159-60114 | ||||
| 93385-16014 | ||||
