ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

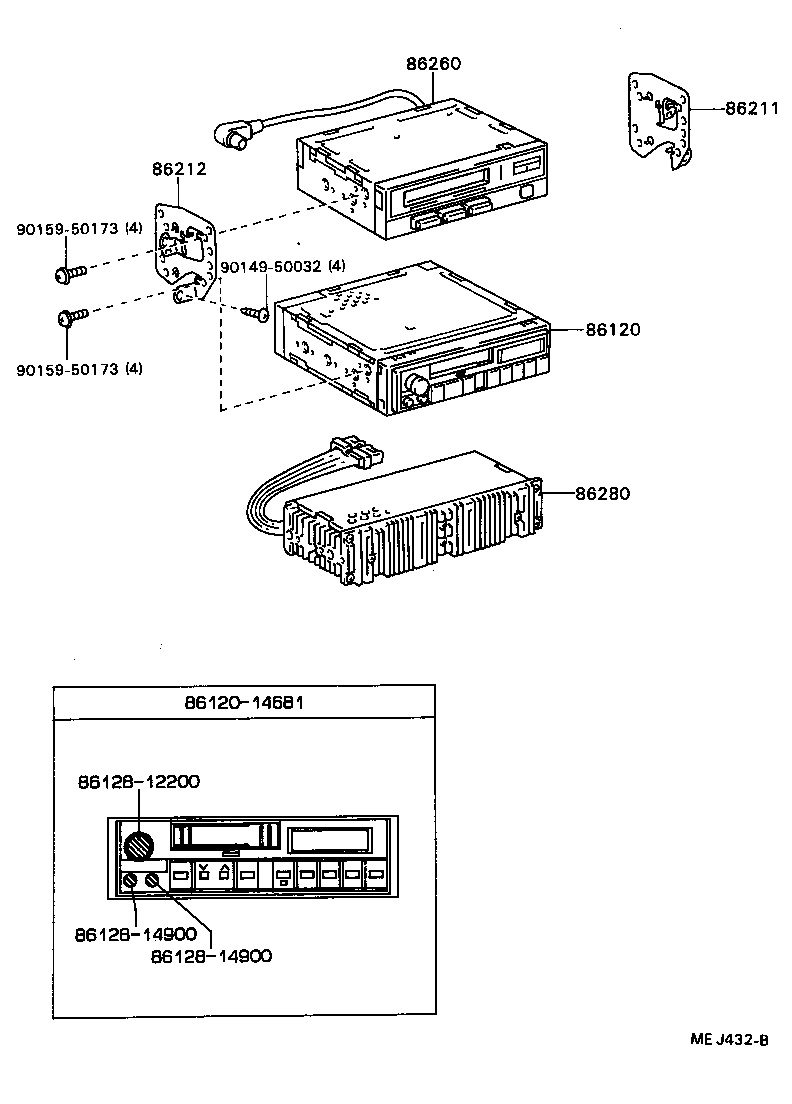

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 86120 8612014681 8612812200 8612814900 8612814900 86211 86212 86260 86280 9014950032 9015950173 9015950173
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-14681

ST162..SX

AM/FM MPX ETR CASSETTE

 1
86211 - BRACKET, RADIO, NO.1
86211-20150

AT160,ST162

 1
86212 - BRACKET, RADIO, NO.2
86212-20190

AT160,ST162

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-14191

ST162..SX

 1
Common parts
86120-14681
86128-12200
86128-14900
90149-50032
90159-50173

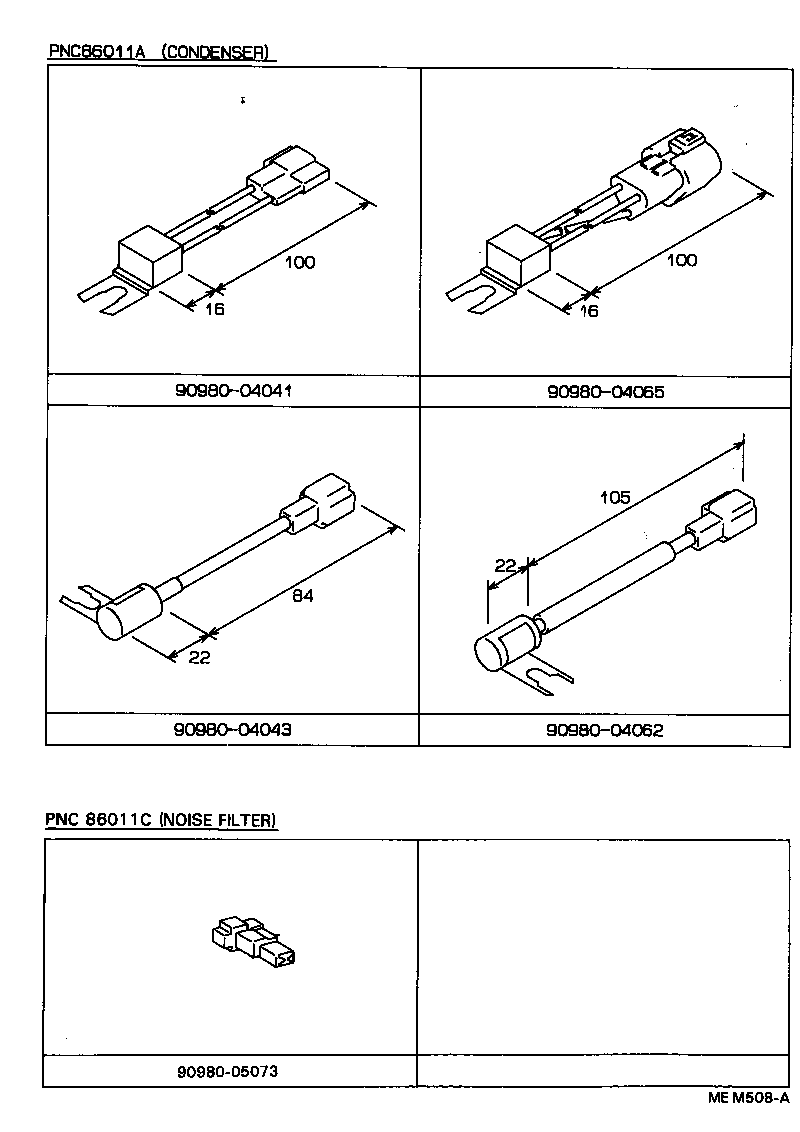

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 86011A 86011C 9098004041 9098004043 9098004062 9098004065 9098005073
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04065

ST162..SX

IGNITION COIL

 1
90980-04041

ST162..GT,ST

IGNITION COIL

 1
90980-04062

ST162..ARL

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05073

AT160,ST162

 1
Common parts
90980-04041
90980-04043
90980-04062
90980-04065
90980-05073
