ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

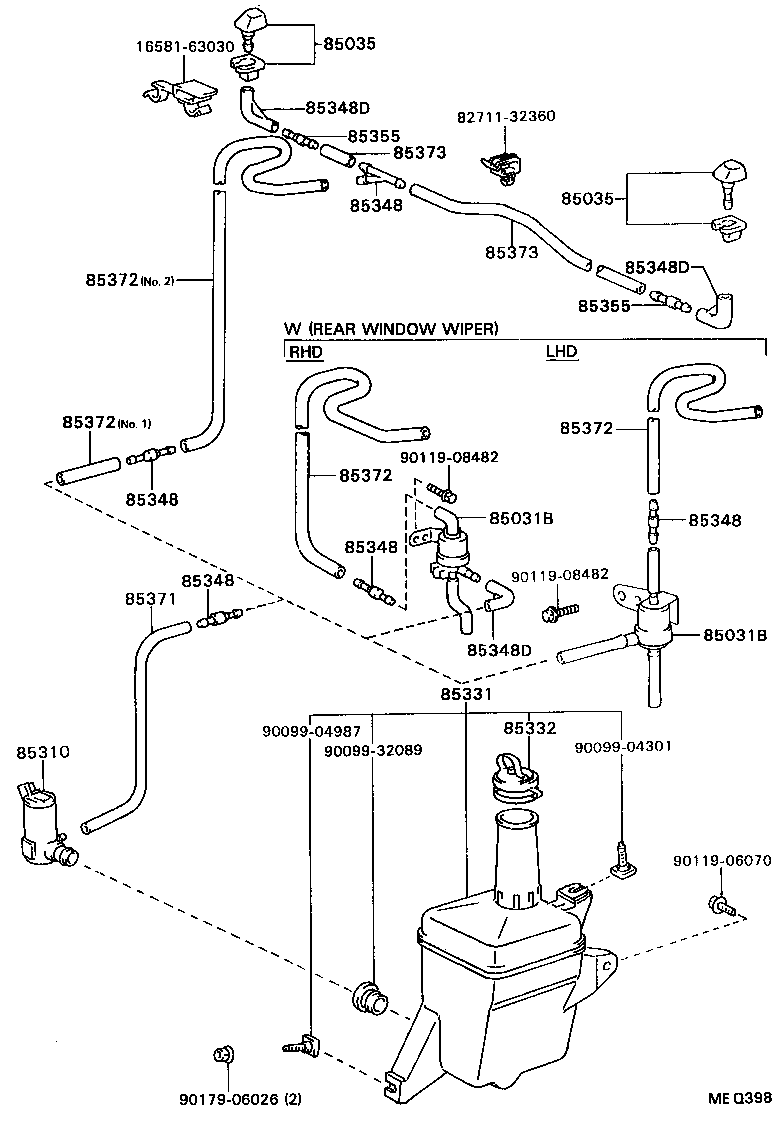

Click highlighted areas on diagram

diagram 1658163030 8271132360 85031B 85031B 85035 85035 85310 85331 85332 85348 85348 85348 85348 85348 85348D 85348D 85348D 85355 85355 85371 85372 85372 85372 85372 85373 85373 9009904301 9009904987 9009932089 9011906070 9011908482 9011908482 9017906026
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85031-20080

ST162..SX

 1
85031-20080

AT160,ST162..LB..RHD..(GT,ST)

 1
85031B - VALVE SUB-ASSY, WASHER
85031-20080

ST162..SX

 1
85031-20080

AT160,ST162..LB..RHD..(GT,ST)

 1
85035 - NOZZLE SUB-ASSY, WASHER
85035-20100

AT160,ST162..RHD

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-20100

AT160,ST162..RHD

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AT160,ST162

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-20560

AT160,ST162..LB..(GT,ST)

W(REAR WINDOW WIPER)

 1
85331-20560

ST162..SX

 1
85331-20500

AT160,ST162..GT,ST

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-32130

AT160,ST162

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AT160,ST162..LB..(GT,ST)

W(REAR WINDOW WIPER),3-WAY

 1
85348-12250

ST162..SX

3-WAY

 1
85348-14390

AT160,ST162..GT,ST

3-WAY

 1
85349-89122

AT160,ST162

2-WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AT160,ST162..LB..(GT,ST)

W(REAR WINDOW WIPER),3-WAY

 1
85348-12250

ST162..SX

3-WAY

 1
85348-14390

AT160,ST162..GT,ST

3-WAY

 1
85349-89122

AT160,ST162

2-WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AT160,ST162..LB..(GT,ST)

W(REAR WINDOW WIPER),3-WAY

 1
85348-12250

ST162..SX

3-WAY

 1
85348-14390

AT160,ST162..GT,ST

3-WAY

 1
85349-89122

AT160,ST162

2-WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AT160,ST162..LB..(GT,ST)

W(REAR WINDOW WIPER),3-WAY

 1
85348-12250

ST162..SX

3-WAY

 1
85348-14390

AT160,ST162..GT,ST

3-WAY

 1
85349-89122

AT160,ST162

2-WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AT160,ST162..LB..(GT,ST)

W(REAR WINDOW WIPER),3-WAY

 1
85348-12250

ST162..SX

3-WAY

 1
85348-14390

AT160,ST162..GT,ST

3-WAY

 1
85349-89122

AT160,ST162

2-WAY

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AT160,ST162

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AT160,ST162

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AT160,ST162

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

AT160,ST162

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

AT160,ST162

 2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

AT160,ST162

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ST162..SX

L=1450

 1
90099-33299

AT160,ST162..GT,ST

*H,L=50,NO.1

 1
90099-33094

AT160,ST162..GT,ST

*H,L=580,NO.2

 1
90099-33080

AT160,ST162..LB..(GT,ST)

*H,L=610,W(REAR WINDOW WIPER)

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ST162..SX

L=1450

 1
90099-33299

AT160,ST162..GT,ST

*H,L=50,NO.1

 1
90099-33094

AT160,ST162..GT,ST

*H,L=580,NO.2

 1
90099-33080

AT160,ST162..LB..(GT,ST)

*H,L=610,W(REAR WINDOW WIPER)

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ST162..SX

L=1450

 1
90099-33299

AT160,ST162..GT,ST

*H,L=50,NO.1

 1
90099-33094

AT160,ST162..GT,ST

*H,L=580,NO.2

 1
90099-33080

AT160,ST162..LB..(GT,ST)

*H,L=610,W(REAR WINDOW WIPER)

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ST162..SX

L=1450

 1
90099-33299

AT160,ST162..GT,ST

*H,L=50,NO.1

 1
90099-33094

AT160,ST162..GT,ST

*H,L=580,NO.2

 1
90099-33080

AT160,ST162..LB..(GT,ST)

*H,L=610,W(REAR WINDOW WIPER)

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AT160,ST162

*H,L=30,LH,RH

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AT160,ST162

*H,L=30,LH,RH

 1
Common parts
16581-63030
82711-32360
90099-04301
90099-04987
90099-32089
90119-06070
90119-08482
90179-06026
