ST162R-BLMVFQ (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )RHD

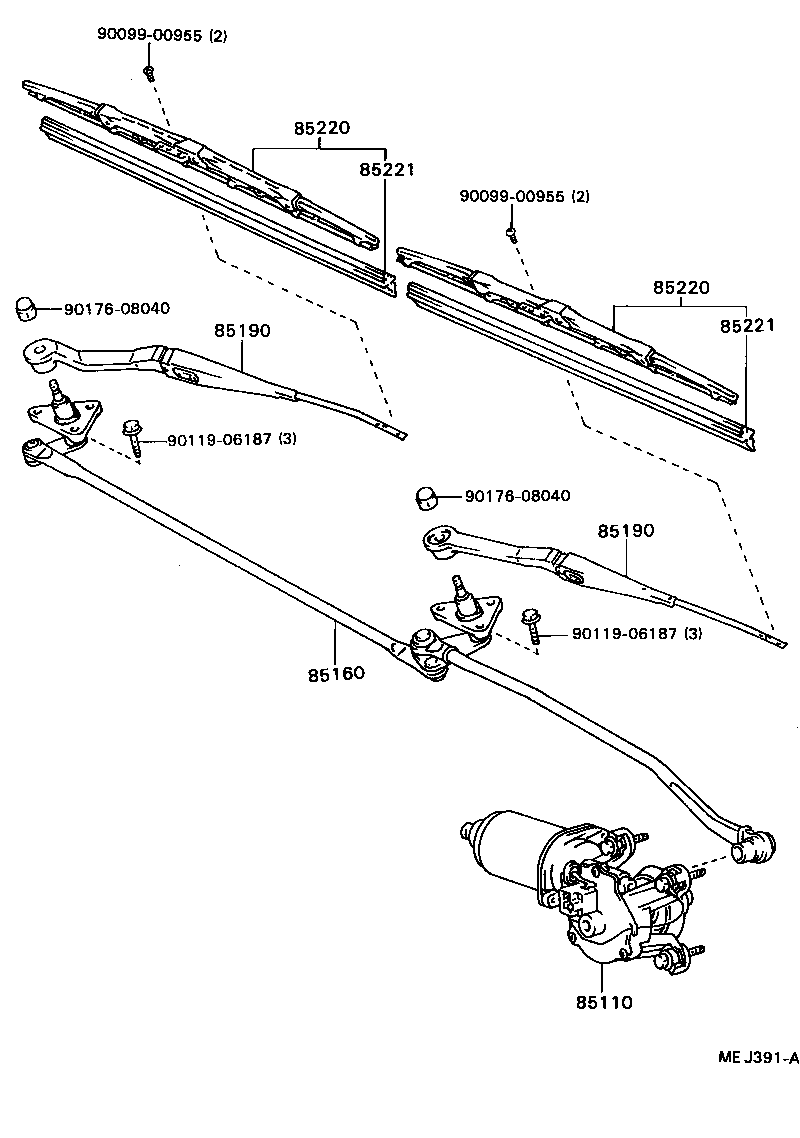

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-20561 |
ST162..ARL |
1 | ||
| 85110-20562 |
ST162..ARL |
1 | ||
| 85110-20560 |
ST162..ARL |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-20300 |
AT160,ST162..RHD |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-20131 |
AT160,ST162..RHD LH |
1 | ||
| 85190-20460 |
AT160,ST162..RHD RH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-20131 |
AT160,ST162..RHD LH |
1 | ||
| 85190-20460 |
AT160,ST162..RHD RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16320 |
AT160,ST162..RHD LH |
1 | ||
| 85220-32540 |
AT160,ST162..RHD RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16320 |
AT160,ST162..RHD LH |
1 | ||
| 85220-32540 |
AT160,ST162..RHD RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30120 |
AT160,ST162..RHD LH |
1 | ||
| 85221-24040 |
AT160,ST162..RHD RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30120 |
AT160,ST162..RHD LH |
1 | ||
| 85221-24040 |
AT160,ST162..RHD RH |
1 | ||
| Common parts | ||||
| 90099-00955 | ||||
| 90119-06187 | ||||
| 90176-08040 | ||||
