ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

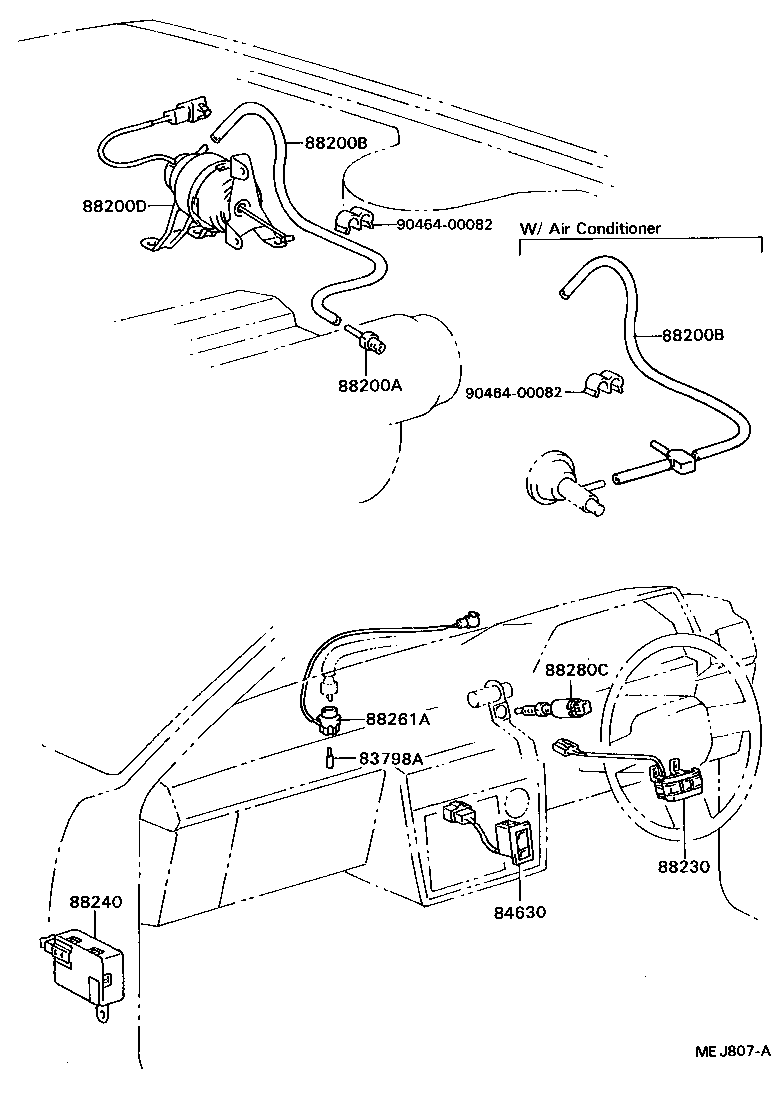

Click highlighted areas on diagram

diagram 83798A 84630 88200A 88200B 88200B 88200D 88230 88240 88261A 88280C 9046400082 9046400082
Part # Description Qty Price
83798A - KEY, SPEEDOMETER CABLE ADAPTER
83798-20020

ST162..SX

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-20070

ST162..SX

 1
88200A - UNION OR WAY, CRUISE CONTROL VACUUM
90404-51010

ST162..SX

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-20010

ST162..SX

W(AIR CONDITIONER)

 1
95411-10095

ST162..SX

*H,L=950,MARK=#0

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-20010

ST162..SX

W(AIR CONDITIONER)

 1
95411-10095

ST162..SX

*H,L=950,MARK=#0

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-20040

ST162..SX

 1
88200-20041

ST162..SX

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-2008004

ST162..SX

DEEP BLUE,TRIM8#

 1
88230-2008005

ST162..SX

DARK BEIGE,TRIM4#

 1
88230-2008001

ST162..SX

BLACK,TRIM2#

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-20200

ST162..SX

 1
88261A - SENSOR, SPEED CRUISE CONTROL
88261-20060

ST162..SX

 1
88280C - SWITCH ASSY, CLUTCH
88280-35010

ST162..5F..SX

 1
Common parts
90464-00082
