ST162R-BLMVFQ (1987)
Toyota Celica

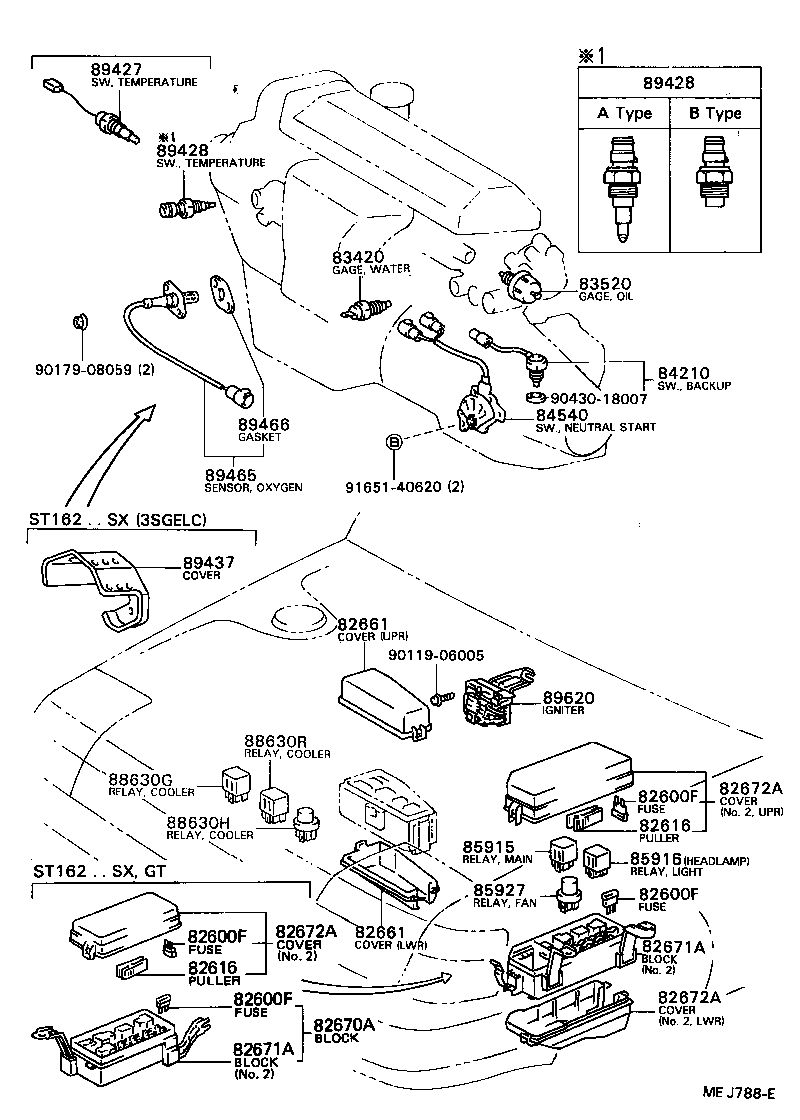

ILLUST NO. 1 OF 5(8708- )ST162
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
ST162..ARL 15A |
2 | ||
| 90982-07011 |
AT160,ST162 30A,GREEN |
2 | ||
| 90982-09003 |
AT160,ST162 15A |
5 | ||
| 90982-09002 |
AT160,ST162 10A |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
1 | ||
| 90982-09002 |
AT160,ST162 10A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AT160,ST162 15A |
5 | ||
| 90982-09003 |
ST162..ARL 15A |
2 | ||
| 90982-07011 |
AT160,ST162 30A,GREEN |
2 | ||
| 90982-09002 |
AT160,ST162 10A |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
1 | ||
| 90982-09002 |
AT160,ST162 10A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AT160,ST162 15A |
5 | ||
| 90982-09003 |
ST162..ARL 15A |
2 | ||
| 90982-07011 |
AT160,ST162 30A,GREEN |
2 | ||
| 90982-09002 |
AT160,ST162 10A |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
1 | ||
| 90982-09002 |
AT160,ST162 10A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AT160,ST162 15A |
5 | ||
| 90982-09003 |
ST162..ARL 15A |
2 | ||
| 90982-07011 |
AT160,ST162 30A,GREEN |
2 | ||
| 90982-09002 |
AT160,ST162 10A |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
1 | ||
| 90982-09002 |
AT160,ST162 10A |
3 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AT160,ST162 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AT160,ST162 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20030 |
ST162;AT160..LHD LWR |
1 | ||
| 82661-20150 |
ST162;AT160..LHD UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20030 |
ST162;AT160..LHD LWR |
1 | ||
| 82661-20150 |
ST162;AT160..LHD UPR |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20200 |
AT160;ST162..GT,SX |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20040 |
AT160;ST162..GT,SX NO.2 |
1 | ||
| 82671-20030 |
AT160,ST162 NO.1 |
1 | ||
| 82671-20080 |
ST162..ST NO.2 |
1 | ||
| 82671-20050 |
AT160,ST162 NO.3 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20040 |
AT160;ST162..GT,SX NO.2 |
1 | ||
| 82671-20030 |
AT160,ST162 NO.1 |
1 | ||
| 82671-20080 |
ST162..ST NO.2 |
1 | ||
| 82671-20050 |
AT160,ST162 NO.3 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20070 |
AT160,ST162..RHD NO.3 |
1 | ||
| 82672-20180 |
AT160,ST162..RHD NO.1 |
1 | ||
| 82672-20110 |
ST162..ST LWR,NO.2 |
1 | ||
| 82672-20211 |
AT160;ST162..GT,SX NO.2 |
1 | ||
| 82672-20121 |
ST162..ST UPR,NO.2 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20070 |
AT160,ST162..RHD NO.3 |
1 | ||
| 82672-20180 |
AT160,ST162..RHD NO.1 |
1 | ||
| 82672-20110 |
ST162..ST LWR,NO.2 |
1 | ||
| 82672-20211 |
AT160;ST162..GT,SX NO.2 |
1 | ||
| 82672-20121 |
ST162..ST UPR,NO.2 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20070 |
AT160,ST162..RHD NO.3 |
1 | ||
| 82672-20180 |
AT160,ST162..RHD NO.1 |
1 | ||
| 82672-20110 |
ST162..ST LWR,NO.2 |
1 | ||
| 82672-20211 |
AT160;ST162..GT,SX NO.2 |
1 | ||
| 82672-20121 |
ST162..ST UPR,NO.2 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
ST162..ST |
1 | ||
| 83420-20020 |
AT160;ST162..GT,SX |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14043 |
ST162 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ST162..5F |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AT160,ST162 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AT160,ST162 TAIL LAMP,MARUKO |
1 | ||
| 90987-02006 |
AT160,ST162 HEADLAMP |
1 | ||
| 90987-02004 |
AT160,ST162 TAIL LAMP,DENSO |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
AT160,ST162 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AT160,ST162 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AT160,ST162 |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 85926-30020 |
AT160,ST162 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-32010 |
ST162 |
1 | ||
| 89428-20060 |
AT160,ST162 B TYPE |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-32010 |
ST162 |
1 | ||
| 89428-20060 |
AT160,ST162 B TYPE |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-20030 |
ST162..SX |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29275 |
ST162..SX |
1 | ||
| 89465-39145 |
ST162..ST |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
ST162..ARL |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-20221 |
ST162..GT,SX |
1 | ||
| 89620-20320 |
ST162..ST |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-10020 |
AT160,ST162..(GT,SX)..(ARL,GEN) |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29695 |
AT160,ST162..RHD..(GT,ST) MATSUSHITA |
1 | ||
| 84112-29715 |
ST162..SX MATSUSHITA |
1 | ||
| 84112-29685 |
AT160,ST162..RHD..(GT,ST) TOKAIRIKA |
1 | ||
| 84112-29705 |
ST162..SX TOKAIRIKA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
ST162 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
ST162 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
ST162 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
AT160,ST162..RHD..(GT,ST) MATSUSHITA |
1 | ||
| 84140-12220 |
AT160,ST162..RHD..(GT,ST) TOKAIRIKA |
1 | ||
| 84140-20230 |
ST162..SX TOKAIRIKA |
1 | ||
| 84140-20260 |
ST162..SX MATSUSHITA |
1 | ||
| 84140-20300 |
AT160,ST162..RHD..(GT,ST) TOKAIRIKA |
1 | ||
| 84140-20310 |
AT160,ST162..RHD..(GT,ST) MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2B270 |
ST162..SX |
1 | ||
| 84310-2B240 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 84310-2B330 |
AT160,ST162..LB..RHD..(GT,ST) W(RR WINDOW WIPER) |
1 | ||
| 84310-2B280 |
ST162..SX W(CRUISE CONTROL) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AT160,ST162 TOKAIRIKA |
1 | ||
| 84312-12050 |
AT160,ST162 MATSUSHITA |
1 | ||
| 84315 - SLIPRING, HORN CONTACT | ||||
| 84315-20040 |
ST162..SX MATSUSHITA |
1 | ||
| 84315-20070 |
ST162..SX TOKAIRIKA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 84329-20010 |
ST162..SX |
1 | ||
| 84329-20040 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-2016001 |
AT160,ST162..RHD BLACK,TRIM2# |
1 | ||
| 84332-2016004 |
AT160,ST162..RHD DEEP BLUE,TRIM8# |
1 | ||
| 84332-2016005 |
AT160,ST162..RHD DARK BEIGE,TRIM4# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14060 |
AT160,ST162..(GT,SX)..(ARL,GEN) W(POWER WINDOW) |
1 | ||
| 84450-20170 |
AT160,ST162..ARL,GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2B260 |
AT160,ST162..LB..RHD..(GT,ST) W(REAR WINDOW WIPER),TOKAIRIKA |
1 | ||
| 84652-2B240 |
ST162..SX W(CRUISE CONTROL),TOKAIRIKA |
1 | ||
| 84652-2B220 |
ST162..SX TOKAIRIKA |
1 | ||
| 84652-2B170 |
AT160,ST162..RHD..(GT,ST) TOKAIRIKA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20090 |
ST162..ARL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20160 |
ST162;AT160..LHD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-2015001 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 84790-2015005 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 84790-2016101 |
ST162..SX BLACK,TRIM2# |
1 | ||
| 84790-2016104 |
ST162..SX BLUE,TRIM8# |
1 | ||
| 84790-2015004 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 84790-2016105 |
ST162..SX BEIGE,TRIM4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20200 |
AT160,ST162 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT160,ST162 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT160,ST162 14V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
AT160,ST162 |
1 | ||
| Common parts | ||||
| 84999-10090 | ||||
| 84999-10160 | ||||
| 88607-20060 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

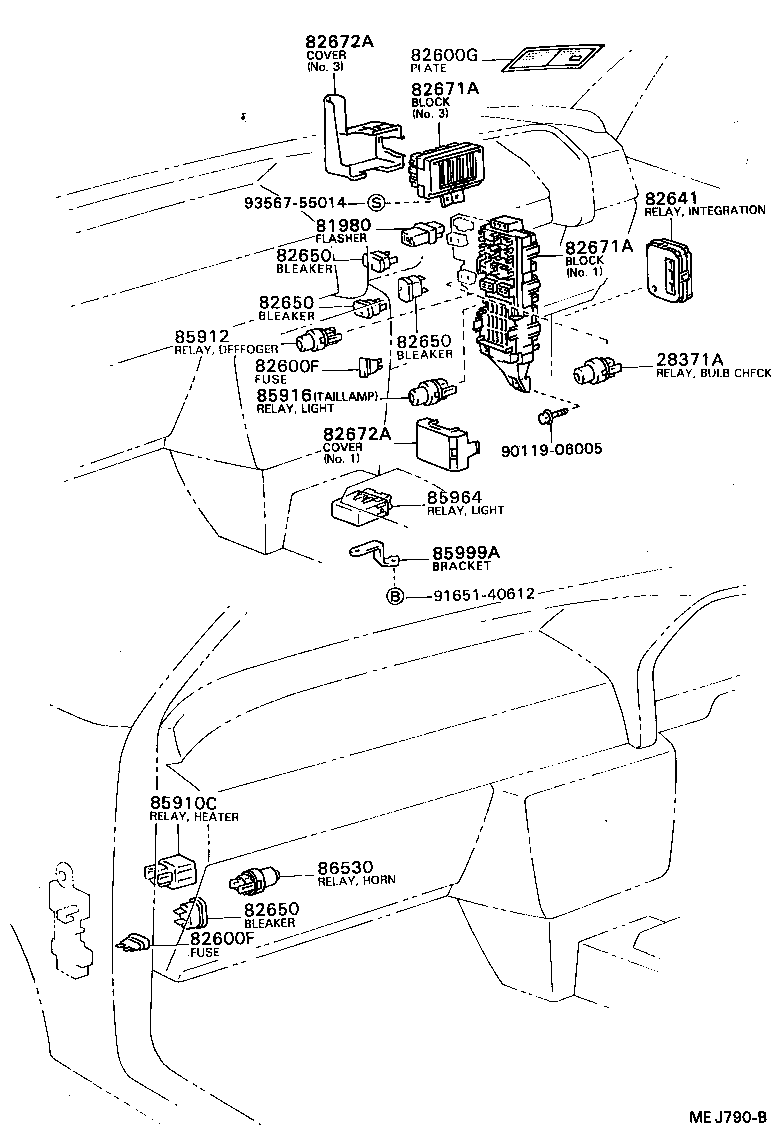

ILLUST NO. 3 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371A - RELAY, BULB CHECK | ||||
| 90987-02004 |
3SFE,3SGELC..ST162 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
AT160,ST162 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
ST162..ARL 15A |
2 | ||
| 90982-07011 |
AT160,ST162 30A,GREEN |
2 | ||
| 90982-09003 |
AT160,ST162 15A |
5 | ||
| 90982-09002 |
AT160,ST162 10A |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
1 | ||
| 90982-09002 |
AT160,ST162 10A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
ST162..ARL 15A |
2 | ||
| 90982-07011 |
AT160,ST162 30A,GREEN |
2 | ||
| 90982-09003 |
AT160,ST162 15A |
5 | ||
| 90982-09002 |
AT160,ST162 10A |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
1 | ||
| 90982-09004 |
AT160,ST162 20A,YELLOW |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
2 | ||
| 90982-09005 |
AT160,ST162 7.5A |
1 | ||
| 90982-09002 |
AT160,ST162 10A |
3 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-20020 |
AT160,ST162 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20110 |
ST162..SX |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160..LHD;ST162..GT,SX 30A |
3 | ||
| 82650-20011 |
AT160,ST162..(GT,ST)..(ARL,GEN) 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160..LHD;ST162..GT,SX 30A |
3 | ||
| 82650-20011 |
AT160,ST162..(GT,ST)..(ARL,GEN) 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160..LHD;ST162..GT,SX 30A |
3 | ||
| 82650-20011 |
AT160,ST162..(GT,ST)..(ARL,GEN) 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160..LHD;ST162..GT,SX 30A |
3 | ||
| 82650-20011 |
AT160,ST162..(GT,ST)..(ARL,GEN) 30A |
2 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20040 |
AT160;ST162..GT,SX NO.2 |
1 | ||
| 82671-20030 |
AT160,ST162 NO.1 |
1 | ||
| 82671-20080 |
ST162..ST NO.2 |
1 | ||
| 82671-20050 |
AT160,ST162 NO.3 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20040 |
AT160;ST162..GT,SX NO.2 |
1 | ||
| 82671-20030 |
AT160,ST162 NO.1 |
1 | ||
| 82671-20080 |
ST162..ST NO.2 |
1 | ||
| 82671-20050 |
AT160,ST162 NO.3 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20070 |
AT160,ST162..RHD NO.3 |
1 | ||
| 82672-20180 |
AT160,ST162..RHD NO.1 |
1 | ||
| 82672-20110 |
ST162..ST LWR,NO.2 |
1 | ||
| 82672-20211 |
AT160;ST162..GT,SX NO.2 |
1 | ||
| 82672-20121 |
ST162..ST UPR,NO.2 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20070 |
AT160,ST162..RHD NO.3 |
1 | ||
| 82672-20180 |
AT160,ST162..RHD NO.1 |
1 | ||
| 82672-20110 |
ST162..ST LWR,NO.2 |
1 | ||
| 82672-20211 |
AT160;ST162..GT,SX NO.2 |
1 | ||
| 82672-20121 |
ST162..ST UPR,NO.2 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT160,ST162 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
ST162..ARL MARUKO |
1 | ||
| 90987-02004 |
ST162..ARL DENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AT160,ST162 TAIL LAMP,MARUKO |
1 | ||
| 90987-02006 |
AT160,ST162 HEADLAMP |
1 | ||
| 90987-02004 |
AT160,ST162 TAIL LAMP,DENSO |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-17010 |
AT160,ST162 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
AT160,ST162 MARUKO |
1 | ||
| 90987-02004 |
AT160,ST162 DENSO |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91651-40612 | ||||
| 93567-55014 | ||||
ILLUST NO. 4 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80021 |
ST162..ARL |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80021 |
ST162..ARL |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AT160,ST162 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AT160,ST162 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20120 |
AT160,ST162 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20130 |
AT160,ST162..LB |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
AT160,ST162 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22100 |
ST162..SX W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84340-30030 |
AT160,ST162 MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16010 |
AT160,ST162 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
ST162 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-20080 |
AT160,ST162..LB..(GT,ST) |
1 | ||
| 85940-20080 |
ST162..SX |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-20070 |
ST162..GT,SX |
1 | ||
| 89373-20190 |
ST162..SX |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||

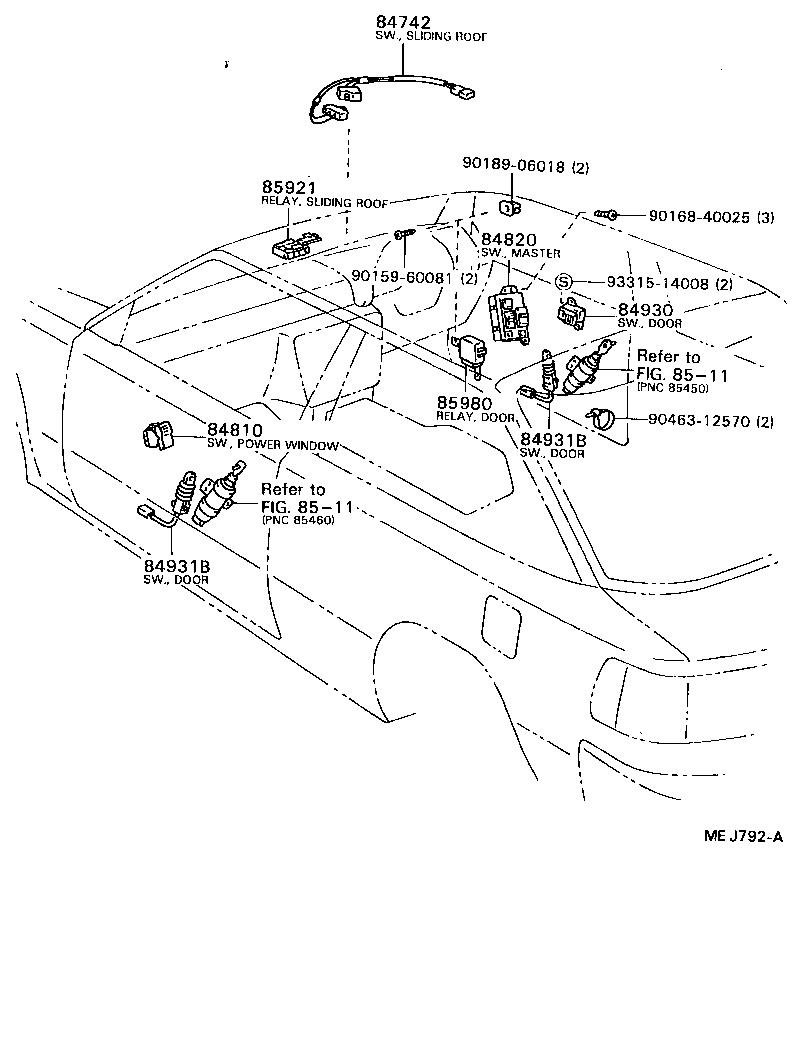

ILLUST NO. 5 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-20020 |
AT160,ST162 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20080 |
AT160,ST162..(GT,SX)..(ARL,GEN) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20190 |
AT160,ST162..RHD..(GT,SX) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-20020 |
ST162..SX |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20071 |
ST162..SX |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20071 |
ST162..SX |
2 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20020 |
AT160,ST162 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-14100 |
ST162..SX |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90168-40025 | ||||
| 90189-06018 | ||||
| 90463-12570 | ||||
| 93315-14008 | ||||
| Linked diagrams | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
