ST162R-BLMVFQ (1987)
Toyota Celica

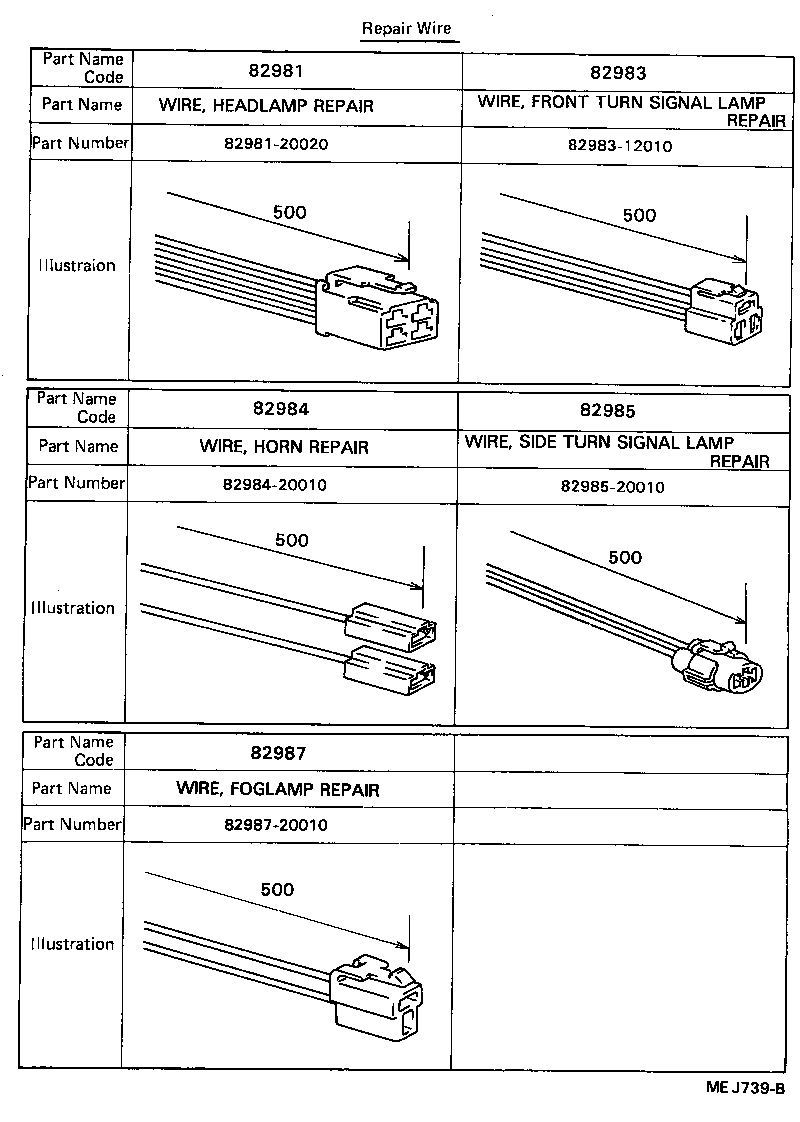

ILLUST NO. 6 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20020 |
AT160,ST162 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-12010 |
AT160,ST162 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AT160,ST162 |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-20010 |
AT160,ST162 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-20010 |
AT160,ST162 |
1 | ||
| Common parts | ||||
| 82981-20020 | ||||
| 82983-12010 | ||||
| 82984-20010 | ||||
| 82985-20010 | ||||
| 82987-20010 | ||||

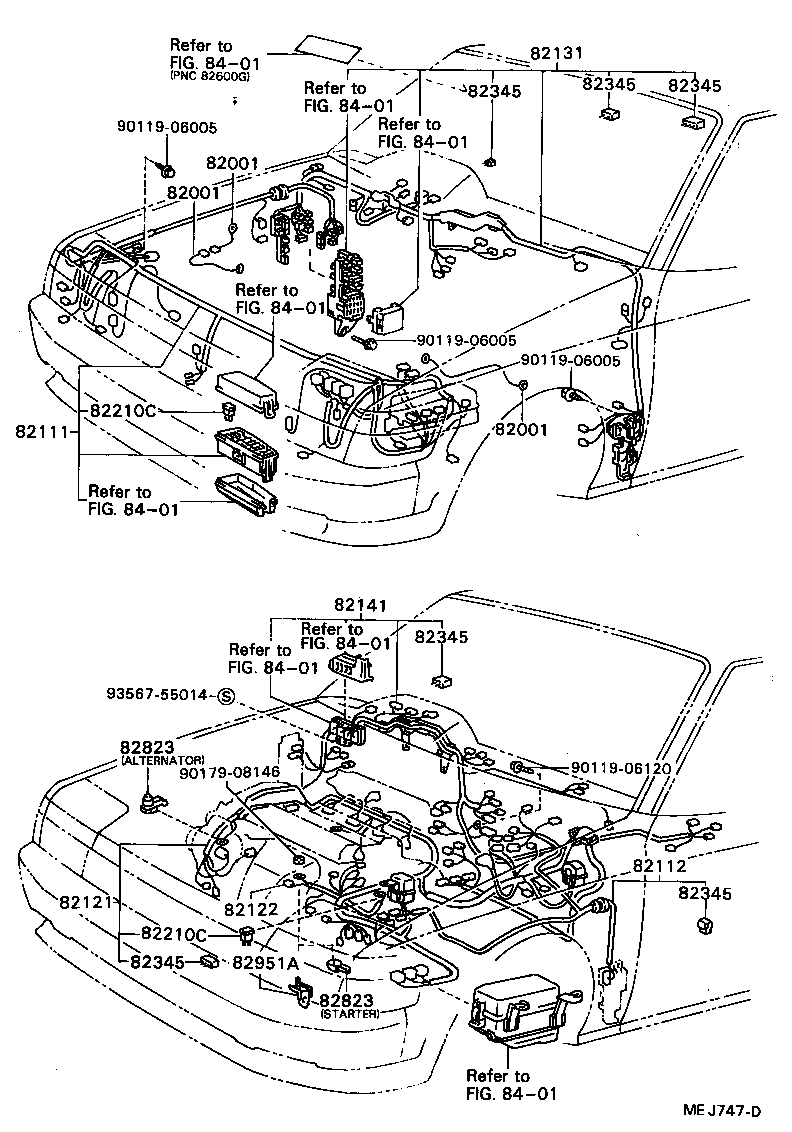

ILLUST NO. 1 OF 7(8708- )TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT160,ST162 T/M---FENDER-LH |
1 | ||
| 90980-07280 |
ST162..ST ENGINE HANGER |
1 | ||
| 90980-07206 |
AT160,ST162 FENDER-RH |
1 | ||
| 90980-07307 |
ST162..GT,SX ENGINE HANGER |
1 | ||
| 90980-07239 |
ST162..GT,SX ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT160,ST162 T/M---FENDER-LH |
1 | ||
| 90980-07280 |
ST162..ST ENGINE HANGER |
1 | ||
| 90980-07206 |
AT160,ST162 FENDER-RH |
1 | ||
| 90980-07307 |
ST162..GT,SX ENGINE HANGER |
1 | ||
| 90980-07239 |
ST162..GT,SX ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT160,ST162 T/M---FENDER-LH |
1 | ||
| 90980-07280 |
ST162..ST ENGINE HANGER |
1 | ||
| 90980-07206 |
AT160,ST162 FENDER-RH |
1 | ||
| 90980-07307 |
ST162..GT,SX ENGINE HANGER |
1 | ||
| 90980-07239 |
ST162..GT,SX ENGINE HANGER |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-20870 |
ST162..ST |
1 | ||
| 82111-20860 |
ST162..SX |
1 | ||
| 82111-20871 |
ST162..ST |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-20240 |
ST162..SX |
1 | ||
| 82112-20250 |
ST162..ST |
1 | ||
| 82112-20251 |
ST162..ST |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-2B412 |
ST162..5F..SX |
1 | ||
| 82121-2B410 |
ST162..5F..SX |
1 | ||
| 82121-2B391 |
ST162..5F..ST |
1 | ||
| 82121-2B393 |
ST162..5F..ST |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-20071 |
ST162..GT,SX |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-2D620 |
ST162..ST |
1 | ||
| 82131-2D630 |
ST162..SX |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-20730 |
ST162..ST;ST162..5F..SX |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
AT160,ST162 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
AT160,ST162 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08223 |
AT160,ST162 30A,TERM.:MALE,PNK |
1 | ||
| 90982-08246 |
ST162..ST 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
AT160,ST162 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
AT160,ST162 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08223 |
AT160,ST162 30A,TERM.:MALE,PNK |
1 | ||
| 90982-08246 |
ST162..ST 100A,TERM.:MALE,BLUE |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
AT160,ST162 NO.7 |
1 | ||
| 82345-20040 |
AT160,ST162..TWC NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
AT160,ST162 NO.7 |
1 | ||
| 82345-20040 |
AT160,ST162..TWC NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
AT160,ST162 NO.7 |
1 | ||
| 82345-20040 |
AT160,ST162..TWC NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
AT160,ST162 NO.7 |
1 | ||
| 82345-20040 |
AT160,ST162..TWC NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
AT160,ST162 NO.7 |
1 | ||
| 82345-20040 |
AT160,ST162..TWC NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
AT160,ST162 NO.7 |
1 | ||
| 82345-20040 |
AT160,ST162..TWC NO.6 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
AT160,ST162..ST STARTER |
1 | ||
| 82823-22060 |
ST162 ALTERNATOR |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
AT160,ST162..ST STARTER |
1 | ||
| 82823-22060 |
ST162 ALTERNATOR |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06120 | ||||
| 90179-08146 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

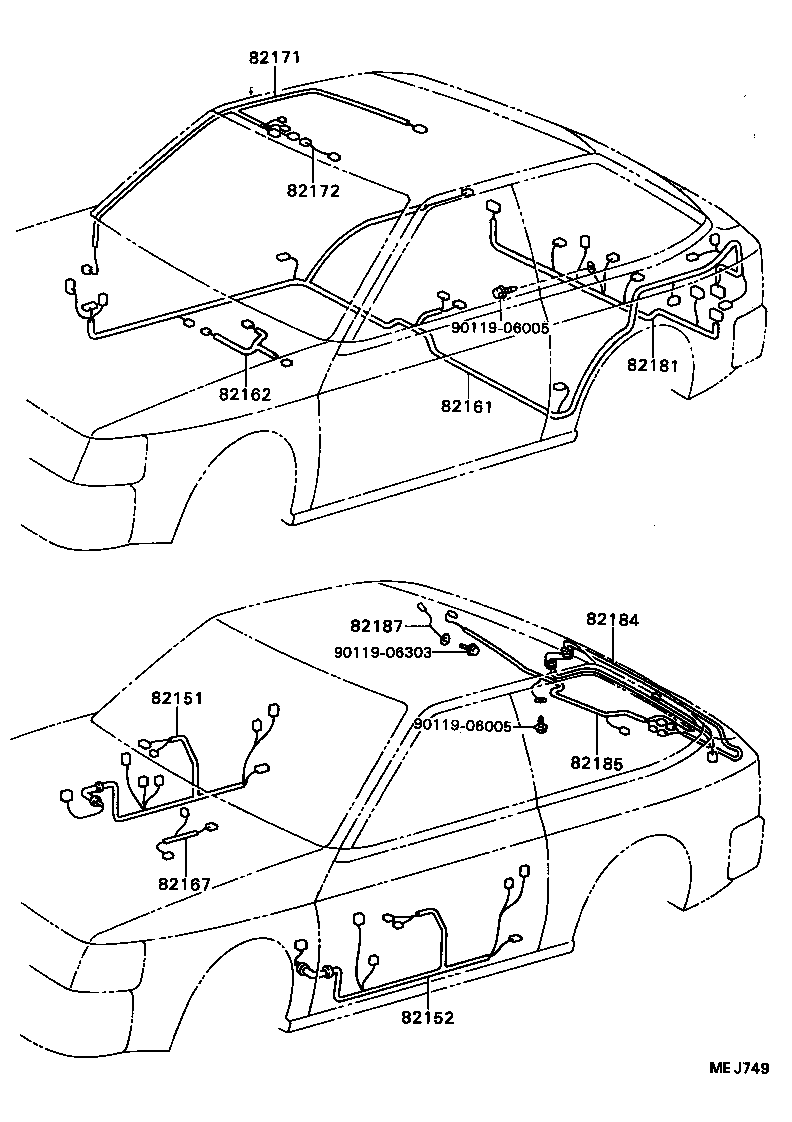

ILLUST NO. 2 OF 7(8708- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-20260 |
ST162..ARL |
1 | ||
| 82151-20520 |
ST162..SX W(POWER WINDOW) |
1 | ||
| 82151-20521 |
ST162..SX W(POWER WINDOW) |
1 | ||
| 82151-2B040 |
ST162..ARL |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-20240 |
ST162..ARL |
1 | ||
| 82152-20460 |
ST162..SX W(POWER WINDOW) |
1 | ||
| 82152-20810 |
ST162..ARL |
1 | ||
| 82152-20461 |
ST162..SX W(POWER WINDOW) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-2B290 |
AT160,ST162..LB..RHD..(GT,ST) |
1 | ||
| 82161-2B291 |
AT160,ST162..LB..RHD..(GT,ST) |
1 | ||
| 82161-2B300 |
ST162..SX |
1 | ||
| 82161-2B301 |
ST162..SX |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20181 |
AT160,ST162..RHD |
1 | ||
| 82171-20290 |
AT160,ST162..RHD W(SUN ROOF) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-20010 |
AT160,ST162 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20150 |
AT160,ST162..LB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-20070 |
ST162..SX |
1 | ||
| 82184-20070 |
ST162..LB..ST W(REAR WINDOW WIPER) |
1 | ||
| 82184-20050 |
ST162..LB |
1 | ||
| 82184-20060 |
ST162..LB..ST |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-20210 |
ST162..LB..ST |
1 | ||
| 82185-20220 |
ST162..LB..ST W(REAR WINDOW WIPER) |
1 | ||
| 82185-20200 |
ST162..SX |
1 | ||
| 82185-20200 |
ST162..LB..ST W(REAR WINDOW WIPER) |
1 | ||
| 82185-20190 |
ST162..LB..ST |
1 | ||
| 82185-20220 |
ST162..SX |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20100 |
ST162..LB |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06303 | ||||
ILLUST NO. 5 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12450 | ||||
| 82711-14110 | ||||
| 82711-14350 | ||||
| 82711-17181 | ||||
| 82711-1A160 | ||||
| 82711-1A170 | ||||
| 82711-1A180 | ||||
| 82711-1A330 | ||||
| 82711-20490 | ||||
| 82711-20620 | ||||
| 82711-20720 | ||||
| 82711-20850 | ||||
| 82711-20880 | ||||
| 82711-22220 | ||||
| 82711-22270 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-2B160 | ||||
| 82711-2B180 | ||||
| 82711-2B350 | ||||
| 82711-30660 | ||||
| 82711-32460 | ||||
| 82711-32490 | ||||
| 82711-32501 | ||||
ILLUST NO. 5 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32780 | ||||
| 82817-16100 | ||||
| 82817-20690 | ||||
| 82819-20140 | ||||
| 90950-01061 | ||||
| 90950-01066 | ||||

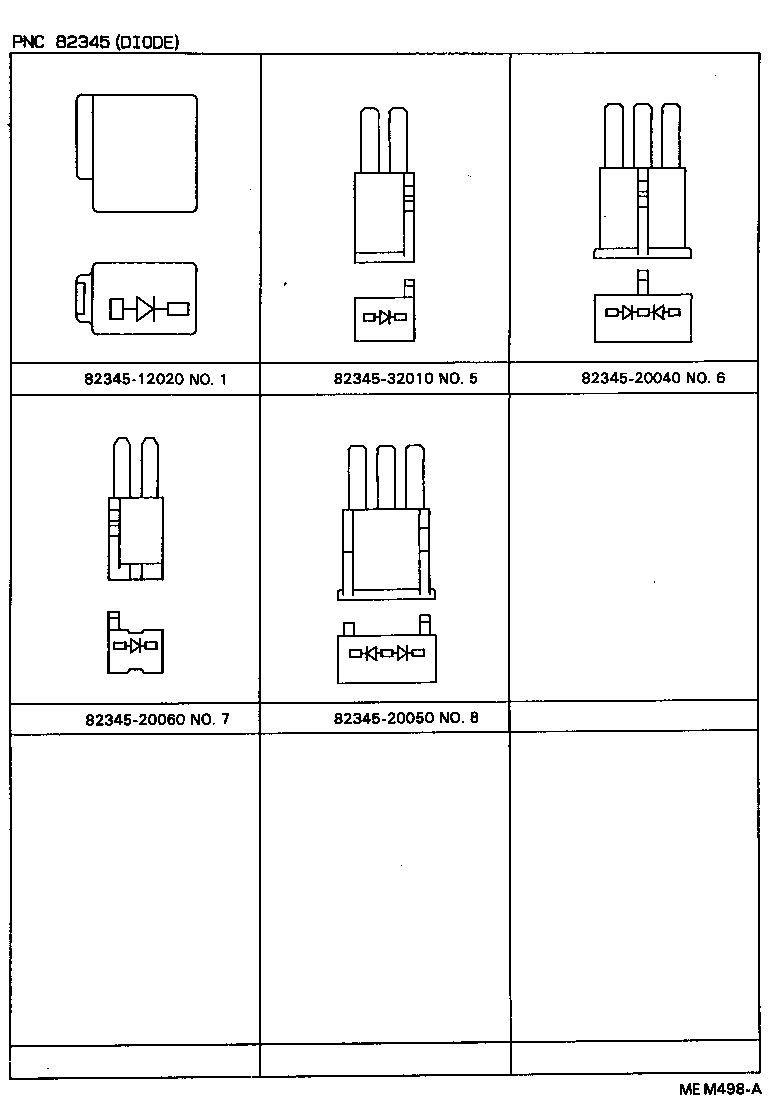

ILLUST NO. 4 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82345-12020 | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-20060 | ||||
| 82345-32010 | ||||

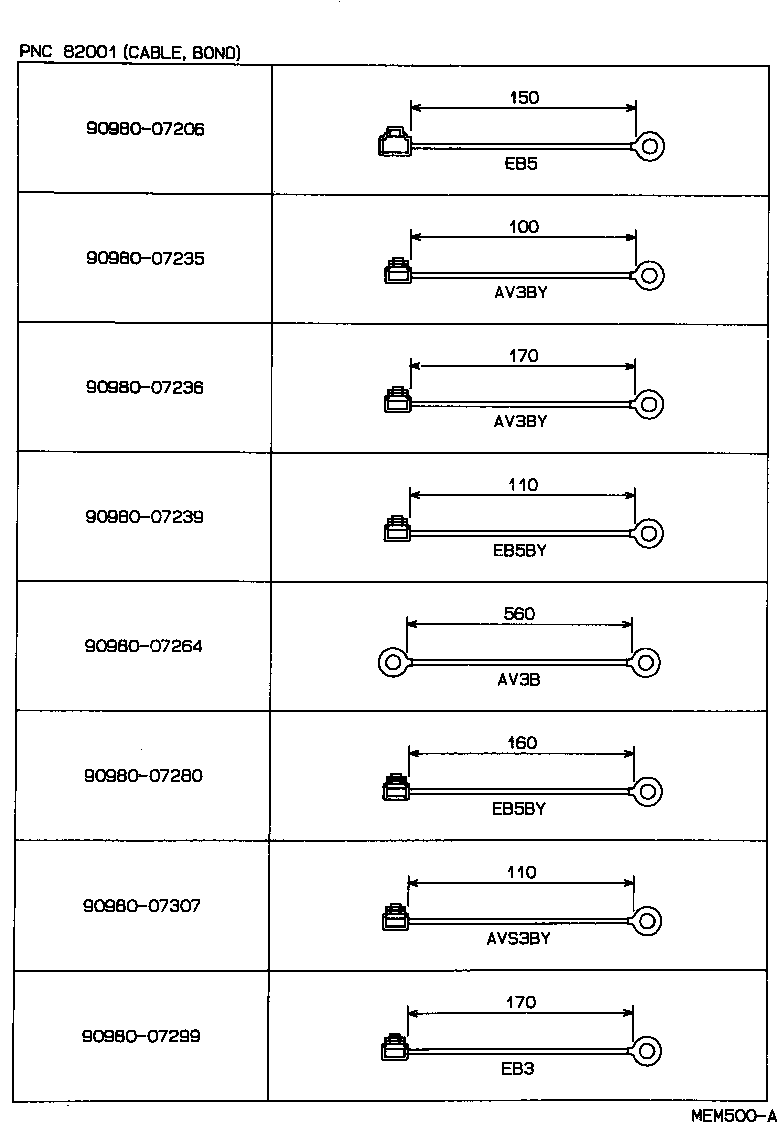

ILLUST NO. 3 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT160,ST162 T/M---FENDER-LH |
1 | ||
| 90980-07280 |
ST162..ST ENGINE HANGER |
1 | ||
| 90980-07206 |
AT160,ST162 FENDER-RH |
1 | ||
| 90980-07307 |
ST162..GT,SX ENGINE HANGER |
1 | ||
| 90980-07239 |
ST162..GT,SX ENGINE HANGER |
1 | ||
| Common parts | ||||
| 90980-07206 | ||||
| 90980-07235 | ||||
| 90980-07236 | ||||
| 90980-07239 | ||||
| 90980-07264 | ||||
| 90980-07280 | ||||
| 90980-07299 | ||||
| 90980-07307 | ||||

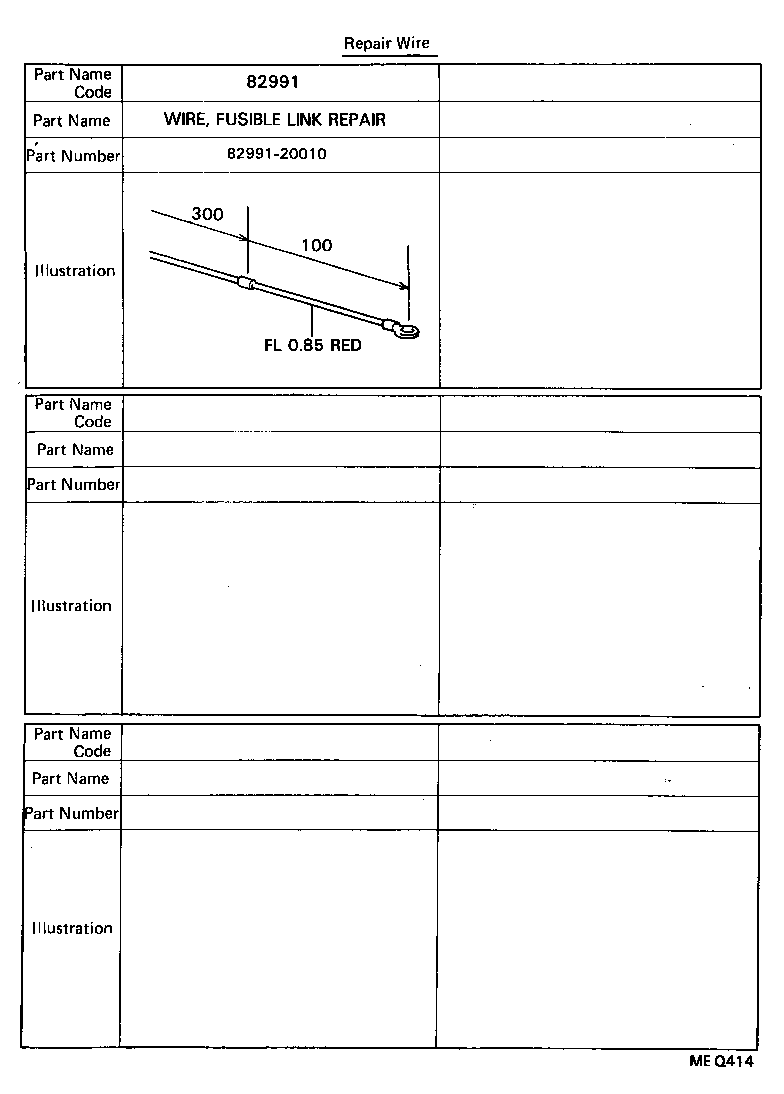

ILLUST NO. 7 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20010 |
AT160,ST162 |
1 | ||
| Common parts | ||||
| 82991-20010 | ||||
