ST162R-BLMVFQ (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

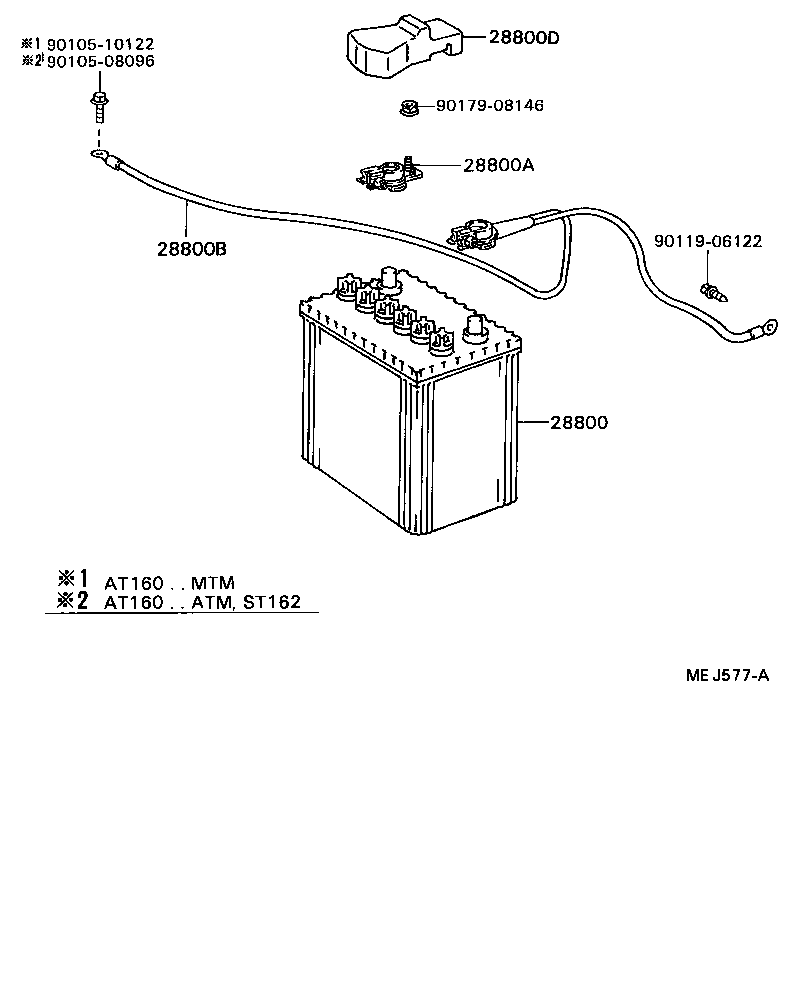

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-70011 |
4A#,3SGEL..AT160,ST162 34B19L |
1 | ||
| 28800-31031 |
3SFE,3SGELC..ST162 32C24L,GS |
1 | ||
| 28800-31020 |
3SFE,3SGELC..ST162 32C24L,KOBE |
1 | ||
| 28800-31020 |
4A#,3SGEL..AT160,ST162 32C24L,KOBE |
1 | ||
| 28800-31031 |
4A#,3SGEL..AT160,ST162 32C24L,GS |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05030 |
3SFE,3SGELC..ST162 W(BATTERY=32C24L) |
1 | ||
| 90982-05028 |
4A#,3SGEL..AT160,ST162 W(BATTERY=34B19L) |
1 | ||
| 90982-05030 |
3SGEL..ST162 W(BATTERY=32C24L) |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 82123-20080 |
4A#,3SGEL..AT160,ST162 W(BATTERY=34B19L) |
1 | ||
| 82123-20090 |
3SFE,3SGELC..ST162 W(BATTERY=32C24L) |
1 | ||
| 82123-20090 |
3SGEL..ST162 W(BATTERY=32C24L) |
1 | ||
| 82123-20081 |
4A#,3SGEL..AT160,ST162 W(BATTERY=34B19L) |
1 | ||
| 82123-20091 |
3SFE,3SGELC..ST162 W(BATTERY=32C24L) |
1 | ||
| 82123-20091 |
3SGEL..ST162 W(BATTERY=32C24L) |
1 | ||
| 82123-20091 |
3SGELC..ST162;3SFE..ST162..5F W(BATTERY=32C24L) |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-12190 |
3SG#..ST162 |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06122 | ||||
| 90179-08146 | ||||
