ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

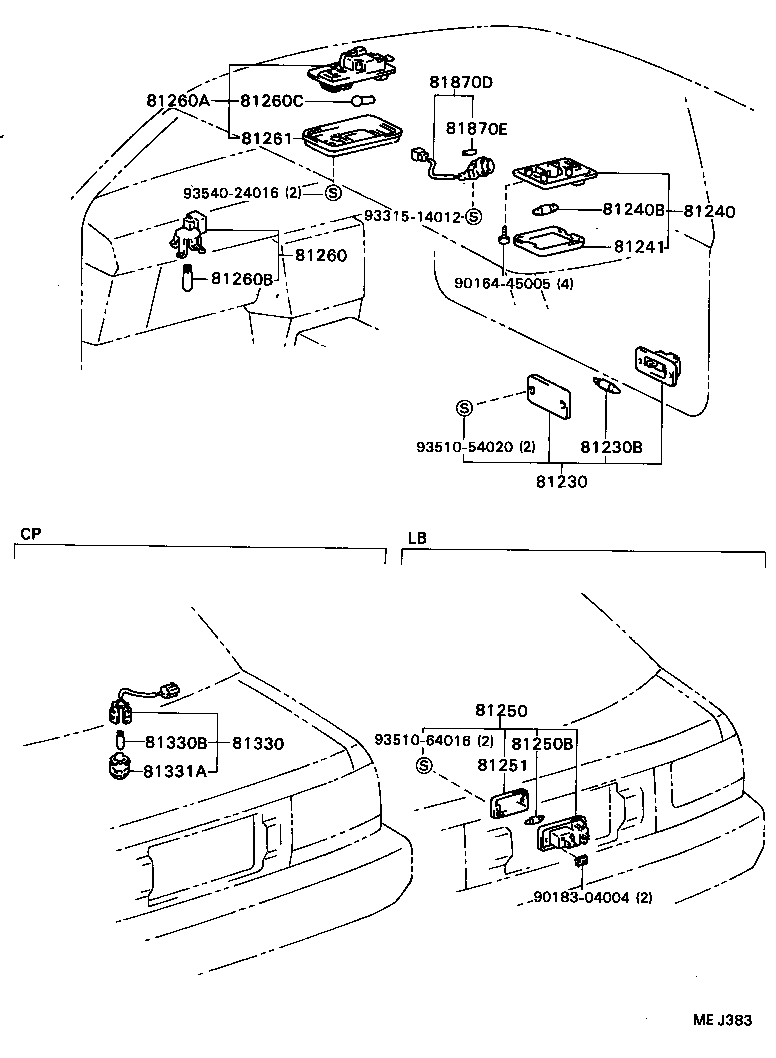

Click highlighted areas on diagram

diagram 81230 81230B 81240 81240B 81241 81250 81250B 81251 81260 81260A 81260B 81260C 81261 81330 81330B 81331A 81870D 81870E 9016445005 9018304004 9331514012 9351054020 9351064016 9354024016
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-14040

AT160,ST162

 2
81230B - BULB(FOR COURTESY LAMP)
99132-13050

AT160,ST162

12V 5W

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-2208135

AT160,ST162

DARK BEIGE,TRIM4#

 1
81240-2208104

AT160,ST162

DARK BLUE,TRIM8#

 1
81240-2208113

AT160,ST162

SHADOW GRAY,TRIM2#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AT160,ST162

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

AT160,ST162

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-1403015

AT160,ST162..LB

DARK BEIGE,TRIM4#

 1
81250-1403011

AT160,ST162..LB

BLACK,TRIM2#

 1
81250-1403024

AT160,ST162..LB

DEEP BLUE,TRIM8#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AT160,ST162..LB

12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-14030

AT160,ST162..LB

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22070

AT160,ST162

 1
81260A - LAMP ASSY, MAP
81260-2009004

AT160,ST162

DEEP BLUE,TRIM8#

 1
81260-2009005

AT160,ST162

DARK BEIGE,TRIM4#

 1
81260-2009003

AT160,ST162

SHADOW GRAY,TRIM2#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

AT160,ST162

12V 1.2W W/O SOCKET

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AT160,ST162

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-2009005

AT160,ST162

DARK BEIGE,TRIM4#

 1
81261-2009003

AT160,ST162

SHADOW GRAY,TRIM2#

 1
81261-2009004

AT160,ST162

DEEP BLUE,TRIM8#

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-20011

ST162..GT,SX

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

ST162..GT,SX

12V 1.2W W/O SOCKET

 1
Common parts
90164-45005
90183-04004
93315-14012
93510-54020
93510-64016
93540-24016
