ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

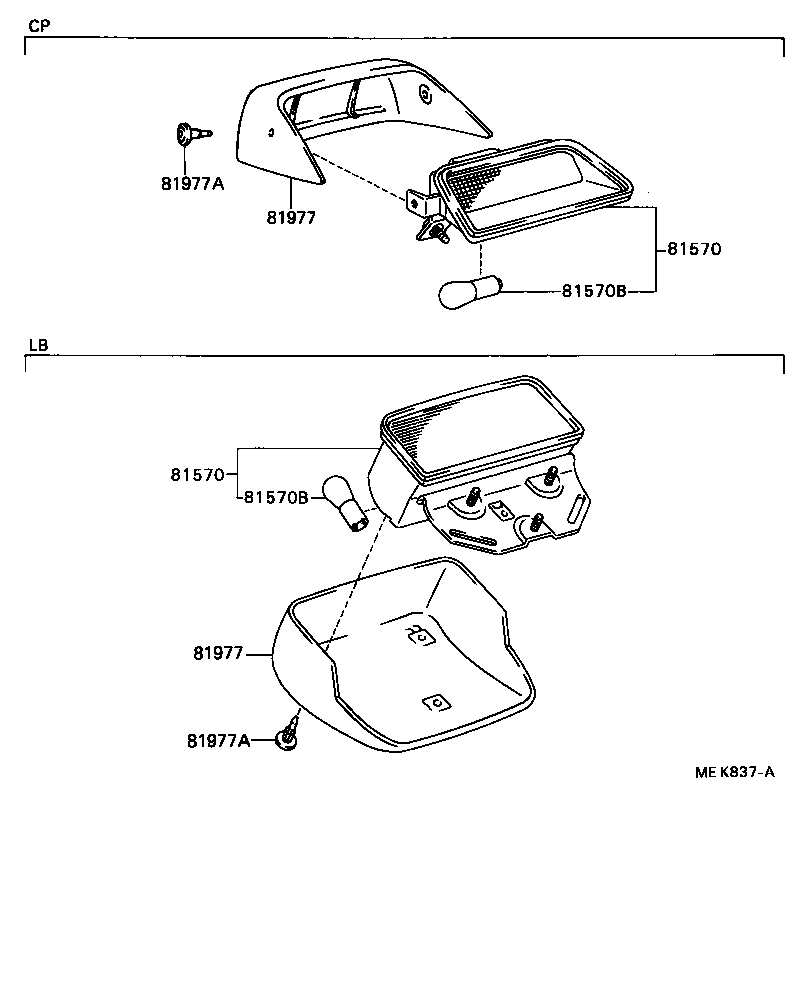

diagram 81570 81570 81570B 81570B 81977 81977 81977A 81977A
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-20010

ST162..LB

 1
81570 - LAMP ASSY, CENTER STOP
81570-20010

ST162..LB

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

ST162..ARL

12V 27W

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

ST162..ARL

12V 27W

 1
81977 - COVER, CENTER STOP LAMP
81977-2001004

ST162..LB

DEEP BLUE,TRIM8#

 1
81977-2001005

ST162..LB

DARK BEIGE,TRIM4#

 1
81977-2001001

ST162..LB

BLACK,TRIM2#

 1
81977 - COVER, CENTER STOP LAMP
81977-2001004

ST162..LB

DEEP BLUE,TRIM8#

 1
81977-2001005

ST162..LB

DARK BEIGE,TRIM4#

 1
81977-2001001

ST162..LB

BLACK,TRIM2#

 1
81977A - CLIP (FOR CENTER STOP LAMP)
90467-0704111

ST162..LB

BLACK,TRIM2#

 3
90467-0704145

ST162..LB

DARK BEIGE,TRIM4#

 3
90467-0704124

ST162..LB

DEEP BLUE,TRIM8#

 3
81977A - CLIP (FOR CENTER STOP LAMP)
90467-0704111

ST162..LB

BLACK,TRIM2#

 3
90467-0704145

ST162..LB

DARK BEIGE,TRIM4#

 3
90467-0704124

ST162..LB

DEEP BLUE,TRIM8#

 3
