ST162R-BLMVFQ (1987)
Toyota Celica

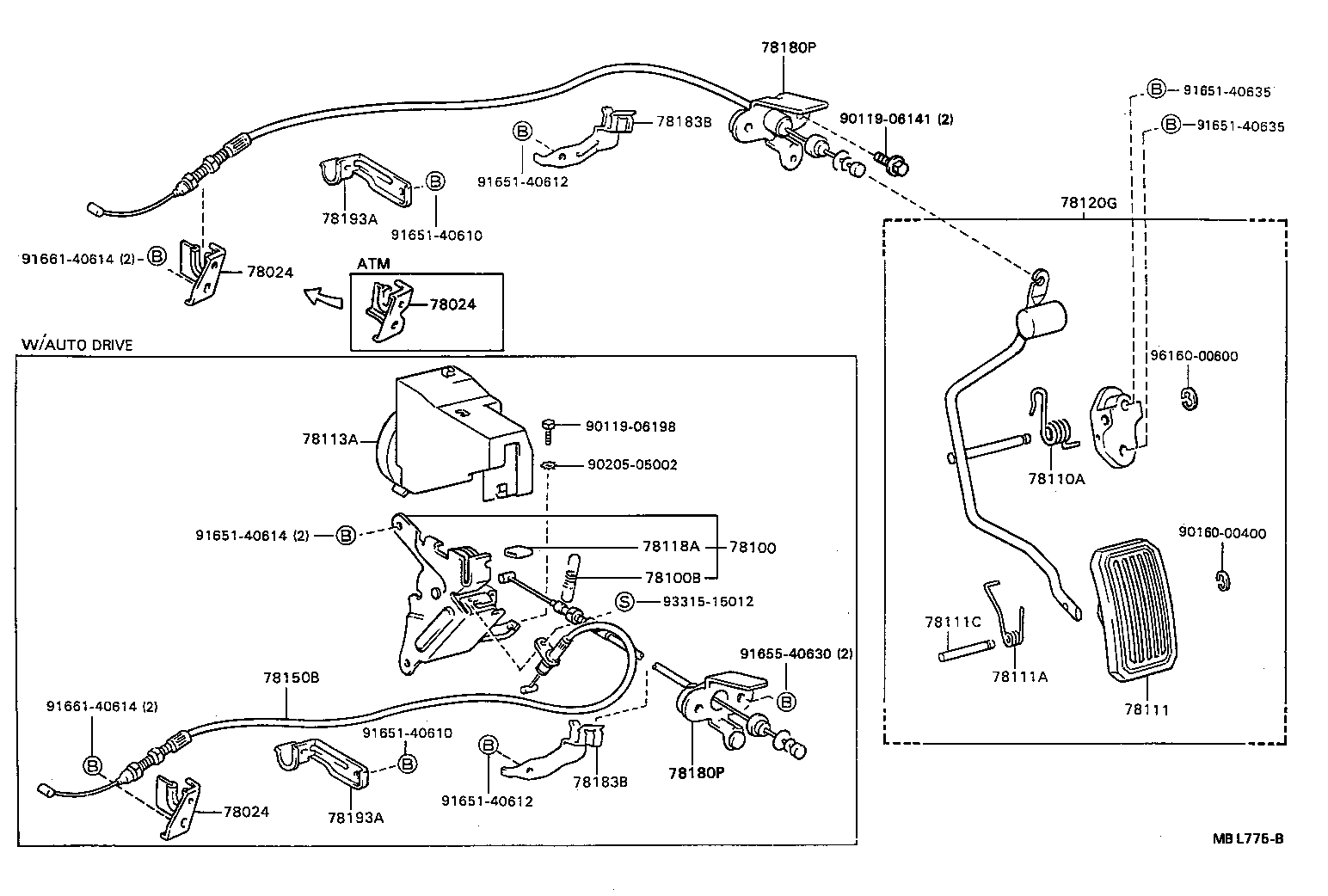

(8708- )SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20070 |
ST162..5F..SX;ST162..4FC..(GT,SX) |
1 | ||
| 78024-32070 |
ST162..ST |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20070 |
ST162..5F..SX;ST162..4FC..(GT,SX) |
1 | ||
| 78024-32070 |
ST162..ST |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20070 |
ST162..5F..SX;ST162..4FC..(GT,SX) |
1 | ||
| 78024-32070 |
ST162..ST |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-20030 |
ST162..SX |
1 | ||
| 78100B - SPRING (FOR ACCELERATOR LINK) | ||||
| 90506-08019 |
ST162..SX |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18050 |
ST162..5F..SX W(CRUISE CONTROL) |
1 | ||
| 90508-26054 |
AT160,ST162..RHD..5F |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20030 |
AT160,ST162 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18048 |
ST162..5F..SX W(CRUISE CONTROL) |
1 | ||
| 90508-18050 |
ST162..4FC..ME;AT160,ST162..5F |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT160,ST162 |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-20140 |
ST162..SX |
1 | ||
| 78113-20141 |
ST162..SX |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-12010 |
ST162..SX |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20270 |
ST162..5F..SX W(CRUISE CONTROL) |
1 | ||
| 78120-20260 |
ST162..5F..ARL |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-20040 |
ST162..SX |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-20430 |
ST162..SX |
1 | ||
| 78180-20440 |
ST162..SX W(CRUISE CONTROL) |
1 | ||
| 78180-20671 |
ST162..ST |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-20430 |
ST162..SX |
1 | ||
| 78180-20440 |
ST162..SX W(CRUISE CONTROL) |
1 | ||
| 78180-20671 |
ST162..ST |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20030 |
AT160,ST162..RHD..(GT,SX) APRON |
1 | ||
| 78183-20090 |
ST162..ST |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20030 |
AT160,ST162..RHD..(GT,SX) APRON |
1 | ||
| 78183-20090 |
ST162..ST |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-20030 |
ST162..GT,SX |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-20030 |
ST162..GT,SX |
1 | ||
| Common parts | ||||
| 90119-06141 | ||||
| 90119-06198 | ||||
| 90160-00400 | ||||
| 90205-05002 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40635 | ||||
| 91655-40630 | ||||
| 91661-40614 | ||||
| 93315-15012 | ||||
| 96160-00600 | ||||

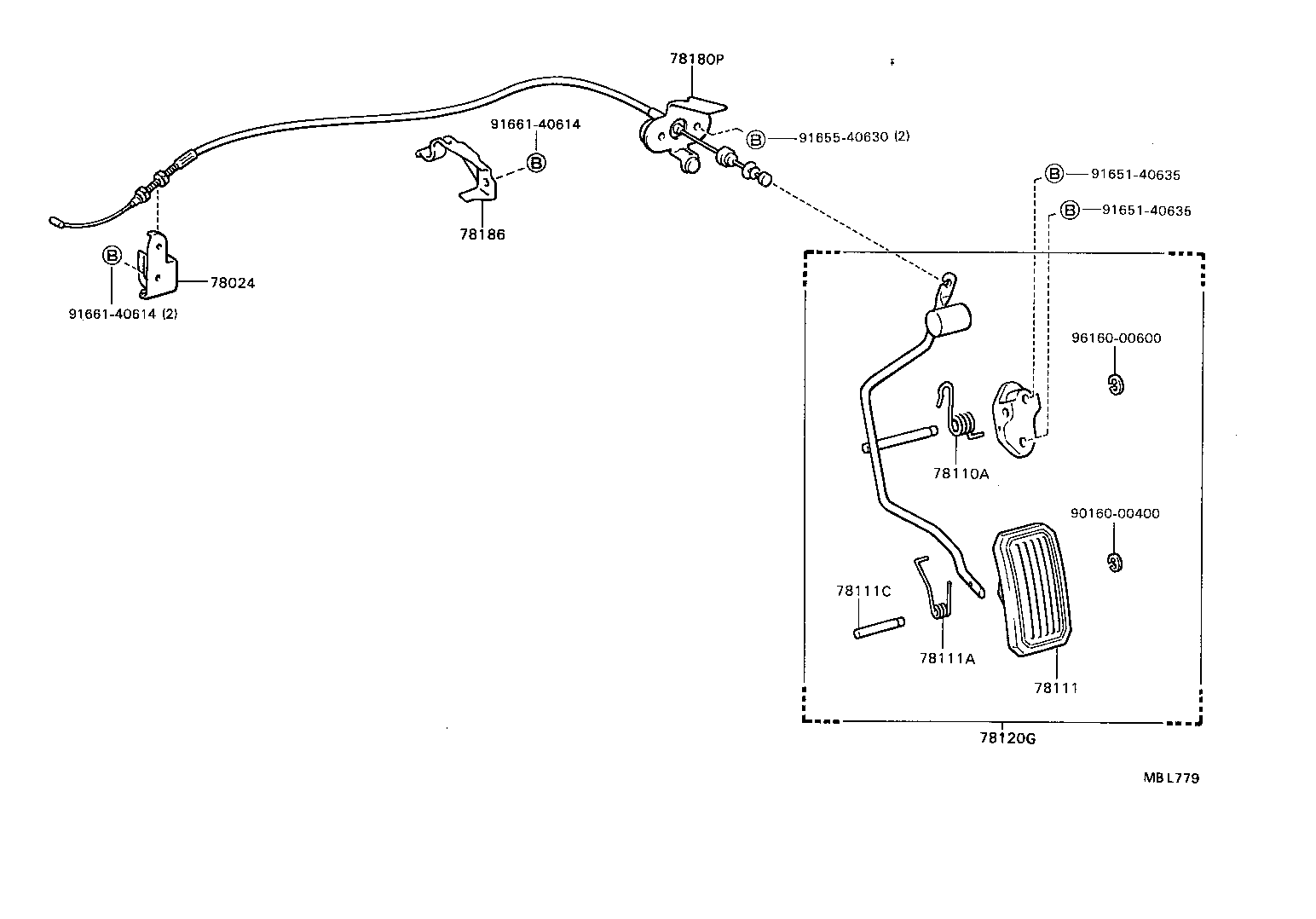

(8708- )ST162..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20070 |
ST162..5F..SX;ST162..4FC..(GT,SX) |
1 | ||
| 78024-32070 |
ST162..ST |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18050 |
ST162..5F..SX W(CRUISE CONTROL) |
1 | ||
| 90508-26054 |
AT160,ST162..RHD..5F |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20030 |
AT160,ST162 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18048 |
ST162..5F..SX W(CRUISE CONTROL) |
1 | ||
| 90508-18050 |
ST162..4FC..ME;AT160,ST162..5F |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT160,ST162 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20270 |
ST162..5F..SX W(CRUISE CONTROL) |
1 | ||
| 78120-20260 |
ST162..5F..ARL |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-20430 |
ST162..SX |
1 | ||
| 78180-20440 |
ST162..SX W(CRUISE CONTROL) |
1 | ||
| 78180-20671 |
ST162..ST |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-32040 |
ST162..ST |
1 | ||
| Common parts | ||||
| 90160-00400 | ||||
| 91651-40635 | ||||
| 91655-40630 | ||||
| 91661-40614 | ||||
| 96160-00600 | ||||
