ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LB

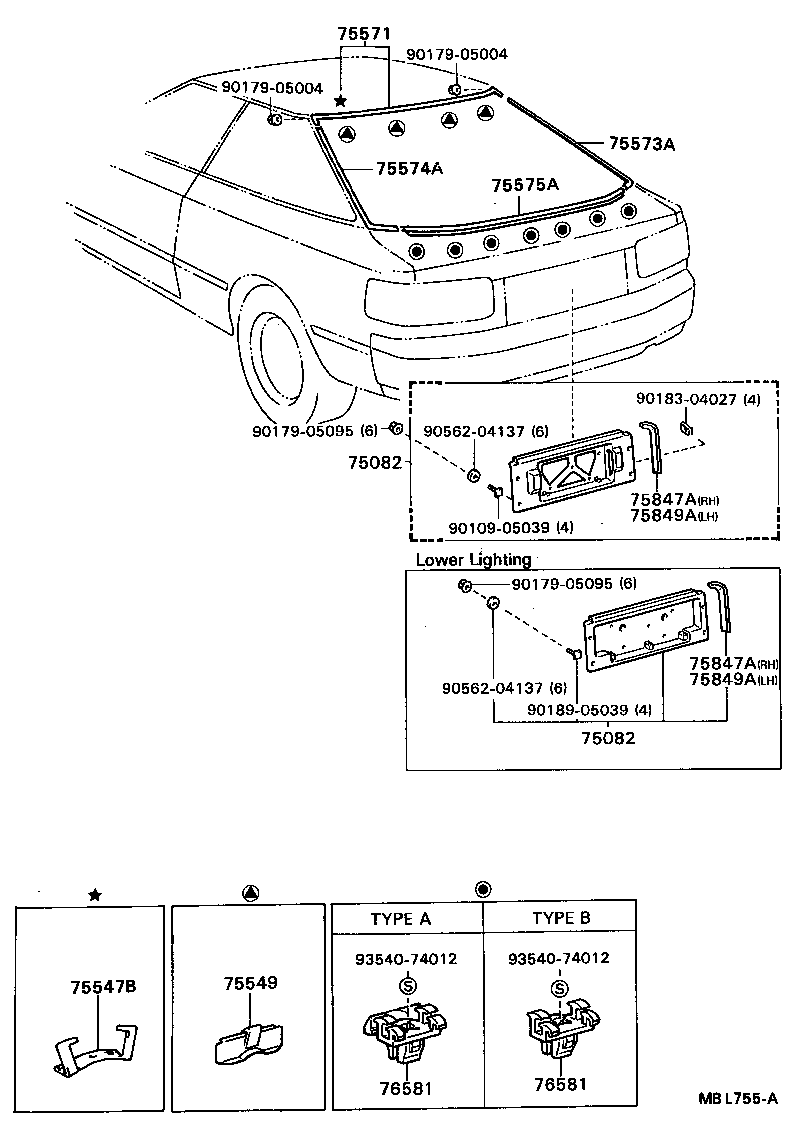

Click highlighted areas on diagram

diagram 75082 75082 75547B 75549 75571 75573A 75574A 75575A 75847A 75847A 75849A 75849A 76581 76581 9010905039 9017905004 9017905004 9017905095 9017905095 9018304027 9018905039 9056204137 9056204137 9354074012 9354074012
Part # Description Qty Price
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-2016013

ST162..SX

GRAY M,168

 1
75082-2016004

ST162..SX

BLUE MAICA,8E3

 1
75082-2016008

ST162..SX

SUPER WHITE 2,040

 1
75082-2016002

ST162..SX

SUPER RED 2,3E5

 1
75082-20130

ST162..LB

 1
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-2016013

ST162..SX

GRAY M,168

 1
75082-2016004

ST162..SX

BLUE MAICA,8E3

 1
75082-2016008

ST162..SX

SUPER WHITE 2,040

 1
75082-2016002

ST162..SX

SUPER RED 2,3E5

 1
75082-20130

ST162..LB

 1
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-20050

AT160,ST162..LB

 4
75549 - FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75549-20080

AT160,ST162..LB

 4
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75507-20170

AT160,ST162..LB

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75501-20031

AT160,ST162..LB

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75502-20011

AT160,ST162..LB

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-20200

AT160,ST162..LB

 1
75847A - PAD, LOWER BACK PANEL MOULDING, RH
75847-20070

ST162..LB;AT160..LB..LHD

 1
75847-20070

AT160,ST162..LB

 1
75847A - PAD, LOWER BACK PANEL MOULDING, RH
75847-20070

ST162..LB;AT160..LB..LHD

 1
75847-20070

AT160,ST162..LB

 1
75849A - PAD, LOWER BACK PANEL MOULDING, LH
75849-20060

AT160,ST162..LB

 1
75849-20060

ST162..LB;AT160..LB..LHD

 1
75849A - PAD, LOWER BACK PANEL MOULDING, LH
75849-20060

AT160,ST162..LB

 1
75849-20060

ST162..LB;AT160..LB..LHD

 1
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76581-20020

AT160,ST162..LB

TYPE A

 2
76583-20010

AT160,ST162..LB

TYPE B

 5
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76581-20020

AT160,ST162..LB

TYPE A

 2
76583-20010

AT160,ST162..LB

TYPE B

 5
Common parts
90109-05039
90179-05004
90179-05095
90183-04027
90189-05039
90562-04137
93540-74012
