ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ARL

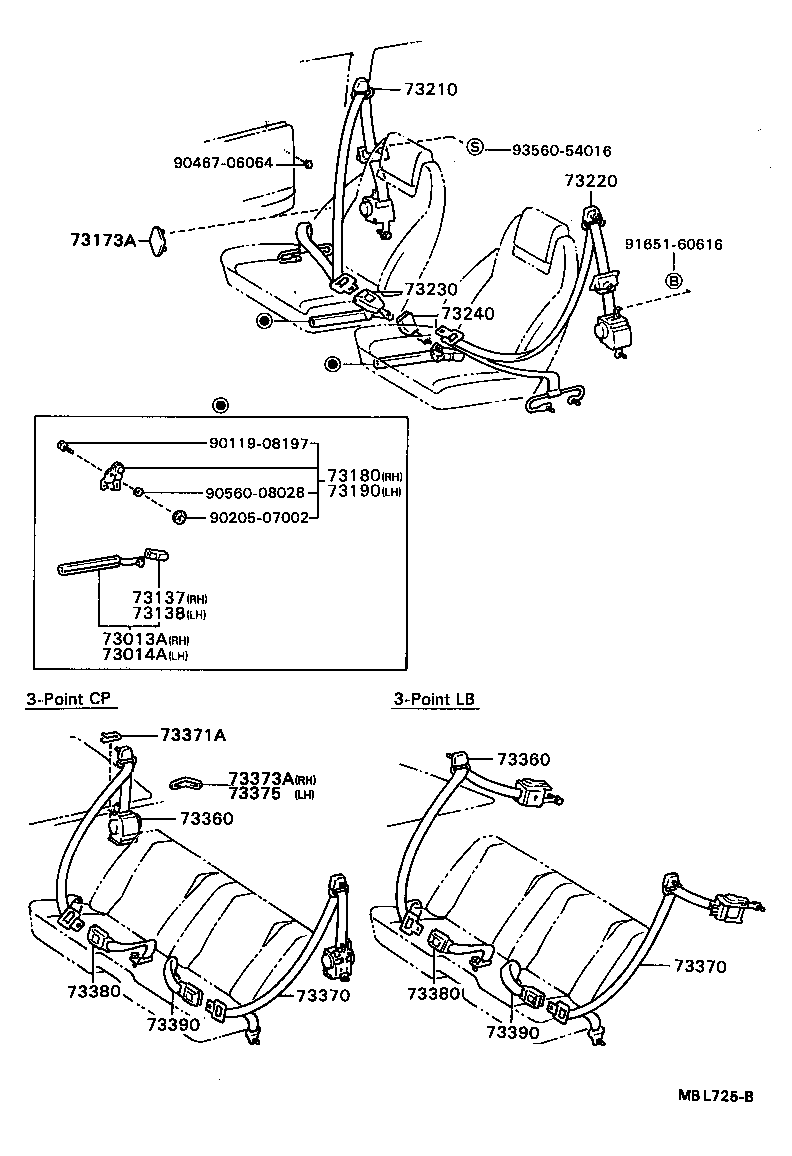

Click highlighted areas on diagram

diagram 73013A 73014A 73137 73138 73173A 73180 73190 73210 73220 73230 73240 73360 73360 73370 73370 73371A 73373A 73375 73380 73380 73390 73390 9011908197 9020507002 9046706064 9056008028 9165160616 9356054016
Part # Description Qty Price
73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73013-2002016

ST162..ARL

SABLE,TRIM4#

 1
73013-2002004

ST162..ARL

DEEP BLUE,TRIM8#

 1
73013-2002001

ST162..ARL

BLACK,TRIM2#

 1
73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73014-2002004

ST162..ARL

DEEP BLUE,TRIM8#

 1
73014-2002001

ST162..ARL

BLACK,TRIM2#

 1
73014-2002016

ST162..ARL

SABLE,TRIM4#

 1
73137 - CAP, FRONT SEAT BELT INNER ANCHOR, RH
73137-2003001

ST162..ARL

BLACK,TRIM2#

 1
73137-2003005

ST162..ARL

DARK BEIGE,TRIM4#

 1
73137-2003004

ST162..ARL

DEEP BLUE,TRIM8#

 1
73138 - CAP, FRONT SEAT BELT INNER ANCHOR, LH
73138-2003004

ST162..ARL

DEEP BLUE,TRIM8#

 1
73138-2003005

ST162..ARL

DARK BEIGE,TRIM4#

 1
73138-2003001

ST162..ARL

BLACK,TRIM2#

 1
73173A - COVER, FRONT SEAT BELT HOLE
73173-14010

ST162..ARL

 2
73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73011-20020

ST162..ARL

 1
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73012-20020

ST162..ARL

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-2036101

ST162..ARL

BLACK,TRIM2#

 1
73210-2036105

ST162..ARL

DARK BEIGE,TRIM4#

 1
73210-2036201

ST162..ARL

BLACK,TRIM2#

 1
73210-2036205

ST162..ARL

DARK BEIGE,TRIM4#

 1
73210-2036104

ST162..ARL

DEEP BLUE,TRIM8#

 1
73210-2036204

ST162..ARL

DEEP BLUE,TRIM8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-2025105

ST162..ARL

DARK BEIGE,TRIM4#

 1
73220-2025101

ST162..ARL

BLACK,TRIM2#

 1
73220-2025205

ST162..ARL

DARK BEIGE,TRIM4#

 1
73220-2025204

ST162..ARL

DEEP BLUE,TRIM8#

 1
73220-2025104

ST162..ARL

DEEP BLUE,TRIM8#

 1
73220-2025201

ST162..ARL

BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-2033101

ST162..ARL

BLACK,TRIM2#

 1
73230-2033105

ST162..ARL

DARK BEIGE,TRIM4#

 1
73230-2033104

ST162..ARL

DEEP BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-2033101

ST162..ARL

BLACK,TRIM2#

 1
73230-2033105

ST162..ARL

DARK BEIGE,TRIM4#

 1
73230-2033104

ST162..ARL

DEEP BLUE,TRIM8#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-2008001

ST162..LB

BLACK,TRIM2#

 1
73360-2008004

ST162..LB

DEEP BLUE,TRIM8#

 1
73360-2008005

ST162..LB

DARK BEIGE,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-2008001

ST162..LB

BLACK,TRIM2#

 1
73360-2008004

ST162..LB

DEEP BLUE,TRIM8#

 1
73360-2008005

ST162..LB

DARK BEIGE,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-2005001

ST162..LB

BLACK,TRIM2#

 1
73370-2005004

ST162..LB

DEEP BLUE,TRIM8#

 1
73370-2005005

ST162..LB

DARK BEIGE,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-2005001

ST162..LB

BLACK,TRIM2#

 1
73370-2005004

ST162..LB

DEEP BLUE,TRIM8#

 1
73370-2005005

ST162..LB

DARK BEIGE,TRIM4#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-2006105

ST162..ARL

DARK BEIGE,TRIM4#

 1
73380-2006104

ST162..ARL

DEEP BLUE,TRIM8#

 1
73380-2006101

ST162..ARL

BLACK,TRIM2#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-2006105

ST162..ARL

DARK BEIGE,TRIM4#

 1
73380-2006104

ST162..ARL

DEEP BLUE,TRIM8#

 1
73380-2006101

ST162..ARL

BLACK,TRIM2#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-2006105

ST162..ARL

DARK BEIGE,TRIM4#

 1
73380-2006104

ST162..ARL

DEEP BLUE,TRIM8#

 1
73380-2006101

ST162..ARL

BLACK,TRIM2#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-2006105

ST162..ARL

DARK BEIGE,TRIM4#

 1
73380-2006104

ST162..ARL

DEEP BLUE,TRIM8#

 1
73380-2006101

ST162..ARL

BLACK,TRIM2#

 1
Common parts
90119-08197
90205-07002
90467-06064
90560-08028
91651-60616
93560-54016
