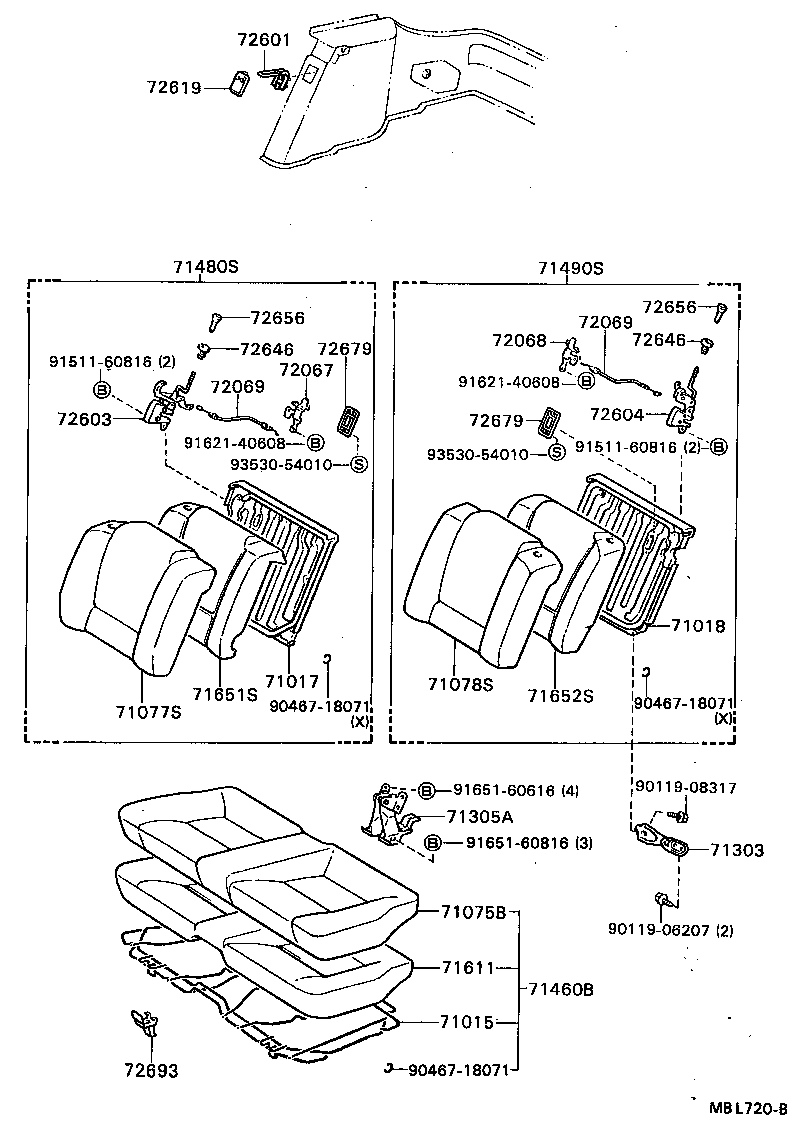

ST162R-BLMVFQ (1987)
Toyota Celica
(8708- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-20190 |
AT160,ST162 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-20240 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-20050 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2067101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 71065-2068004 |
ST162..SX DEEP BLUE,TRIM8# |
1 | ||
| 71065-2068013 |
ST162..SX GRAY,TRIM2# |
1 | ||
| 71065-2069005 |
ST162..SX W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71065-2067104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 71065-2067105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 71065-2068005 |
ST162..SX DARK BEIGE,TRIM4# |
1 | ||
| 71065-2069013 |
ST162..SX W(SPORTS SEAT),GRAY,TRIM2# |
1 | ||
| 71065-2069004 |
ST162..SX W(SPORTS SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2B65104 |
ST162..SX W(SPORTS SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B70105 |
AT160,ST162..LB..ST DARK BEIGE,TRIM4# |
1 | ||
| 71077-2B70104 |
AT160,ST162..LB..ST DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B70101 |
AT160,ST162..LB..ST BLACK,TRIM2# |
1 | ||
| 71077-2B71104 |
AT160,ST162..(GT,SX)..(ARL,GEN) DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B71113 |
AT160,ST162..(GT,SX)..(ARL,GEN) GRAY,TRIM2# |
1 | ||
| 71077-2B65113 |
ST162..SX W(SPORTS SEAT),GRAY,TRIM2# |
1 | ||
| 71077-2B71113 |
AT160,ST162..LB..(GT,SX) GRAY,TRIM2# |
1 | ||
| 71077-2B71105 |
AT160,ST162..LB..(GT,SX) DARK BEIGE,TRIM4# |
1 | ||
| 71077-2B71105 |
AT160,ST162..(GT,SX)..(ARL,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 71077-2B65105 |
ST162..SX W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71077-2B71104 |
AT160,ST162..LB..(GT,SX) DEEP BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2031104 |
ST162..SX W(SPORTS SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71078-2035105 |
AT160,ST162..(GT,SX)..(ARL,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 71078-2034104 |
AT160,ST162..LB..ST DEEP BLUE,TRIM8# |
1 | ||
| 71078-2031113 |
ST162..SX W(SPORTS SEAT),GRAY,TRIM2# |
1 | ||
| 71078-2034105 |
AT160,ST162..LB..ST DARK BEIGE,TRIM4# |
1 | ||
| 71078-2031105 |
ST162..SX W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71078-2035104 |
AT160,ST162..(GT,SX)..(ARL,GEN) DEEP BLUE,TRIM8# |
1 | ||
| 71078-2035113 |
AT160,ST162..(GT,SX)..(ARL,GEN) GRAY,TRIM2# |
1 | ||
| 71078-2034101 |
AT160,ST162..LB..ST BLACK,TRIM2# |
1 | ||
| 71078-2035104 |
AT160,ST162..LB..(GT,SX) DEEP BLUE,TRIM8# |
1 | ||
| 71078-2035113 |
AT160,ST162..LB..(GT,SX) GRAY,TRIM2# |
1 | ||
| 71078-2035105 |
AT160,ST162..LB..(GT,SX) DARK BEIGE,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-16010 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20050 |
AT160,ST162..LB |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2063104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 71560-2065005 |
ST162..SX W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71560-2064005 |
ST162..SX DARK BEIGE,TRIM4# |
1 | ||
| 71560-2063101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 71560-2065004 |
ST162..SX W(SPORTS SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71560-2064013 |
ST162..SX GRAY,TRIM2# |
1 | ||
| 71560-2063105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 71560-2064004 |
ST162..SX DEEP BLUE,TRIM8# |
1 | ||
| 71560-2065013 |
ST162..SX W(SPORTS SEAT),GRAY,TRIM2# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-2B63104 |
AT160,ST162..LB..ST DEEP BLUE,TRIM8# |
1 | ||
| 71480-2B74113 |
AT160,ST162..(GT,SX)..(ARL,GEN) GRAY,TRIM2# |
1 | ||
| 71480-2B63101 |
AT160,ST162..LB..ST BLACK,TRIM2# |
1 | ||
| 71480-2B63105 |
AT160,ST162..LB..ST DARK BEIGE,TRIM4# |
1 | ||
| 71480-2B74104 |
AT160,ST162..(GT,SX)..(ARL,GEN) DEEP BLUE,TRIM8# |
1 | ||
| 71480-2B75104 |
ST162..SX W(SPORTS SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71480-2B75113 |
ST162..SX W(SPORTS SEAT),GRAY,TRIM2# |
1 | ||
| 71480-2B75105 |
ST162..SX W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71480-2B74105 |
AT160,ST162..(GT,SX)..(ARL,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-2034104 |
AT160,ST162..(GT,SX)..(ARL,GEN) DEEP BLUE,TRIM8# |
1 | ||
| 71490-2026104 |
AT160,ST162..LB..ST DEEP BLUE,TRIM8# |
1 | ||
| 71490-2034113 |
AT160,ST162..(GT,SX)..(ARL,GEN) GRAY,TRIM2# |
1 | ||
| 71490-2035105 |
ST162..SX W(SPORTS SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71490-2026105 |
AT160,ST162..LB..ST DARK BEIGE,TRIM4# |
1 | ||
| 71490-2035113 |
ST162..SX W(SPORTS SEAT),GRAY,TRIM2# |
1 | ||
| 71490-2035104 |
ST162..SX W(SPORTS SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71490-2026101 |
AT160,ST162..LB..ST BLACK,TRIM2# |
1 | ||
| 71490-2034105 |
AT160,ST162..(GT,SX)..(ARL,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-20340 |
AT160,ST162 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20410 |
ST162..SX W(SPORTS SEAT) |
1 | ||
| 71651-20400 |
AT160..TWC;AT160,ST162..LB..(ST,SX) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20260 |
AT160..TWC;AT160,ST162..LB..(ST,SX) |
1 | ||
| 71652-20270 |
ST162..SX W(SPORTS SEAT) |
1 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20010 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20010 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20010 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20010 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72610-20010 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-20010 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-20010 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-2001014 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) BLUE,TRIM8# |
2 | ||
| 72615-2001001 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) BLACK,TRIM2# |
2 | ||
| 72615-2001005 |
AT160,ST162..LB DARK BEIGE,TRIM4# |
2 | ||
| 72615-2001001 |
AT160,ST162..LB BLACK,TRIM2# |
2 | ||
| 72615-2001005 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DARK BEIGE,TRIM4# |
2 | ||
| 72615-2001014 |
AT160,ST162..LB BLUE,TRIM8# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2002004 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DEEP BLUE,TRIM8# |
1 | ||
| 72646-2002005 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DARK BEIGE,TRIM4# |
1 | ||
| 72646-2002001 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) BLACK,TRIM2# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2002004 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DEEP BLUE,TRIM8# |
1 | ||
| 72646-2002005 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DARK BEIGE,TRIM4# |
1 | ||
| 72646-2002001 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) BLACK,TRIM2# |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1201001 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) BLACK,TRIM2# |
1 | ||
| 72661-1201014 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DEEP BLUE,TRIM8# |
1 | ||
| 72661-1201005 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DARK BEIGE,TRIM4# |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1201001 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) BLACK,TRIM2# |
1 | ||
| 72661-1201014 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DEEP BLUE,TRIM8# |
1 | ||
| 72661-1201005 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DARK BEIGE,TRIM4# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601001 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) BLACK,TRIM2# |
2 | ||
| 72679-1601015 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DARK BEIGE,TRIM4# |
2 | ||
| 72679-1601004 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DEEP BLUE,TRIM8# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601001 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) BLACK,TRIM2# |
2 | ||
| 72679-1601015 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DARK BEIGE,TRIM4# |
2 | ||
| 72679-1601004 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) DEEP BLUE,TRIM8# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20010 |
AT160,ST162 |
2 | ||
| Common parts | ||||
| 90119-06207 | ||||
| 90119-08317 | ||||
| 90467-18071 | ||||
| 91511-60816 | ||||
| 91621-40608 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 93530-54010 | ||||
