ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LB

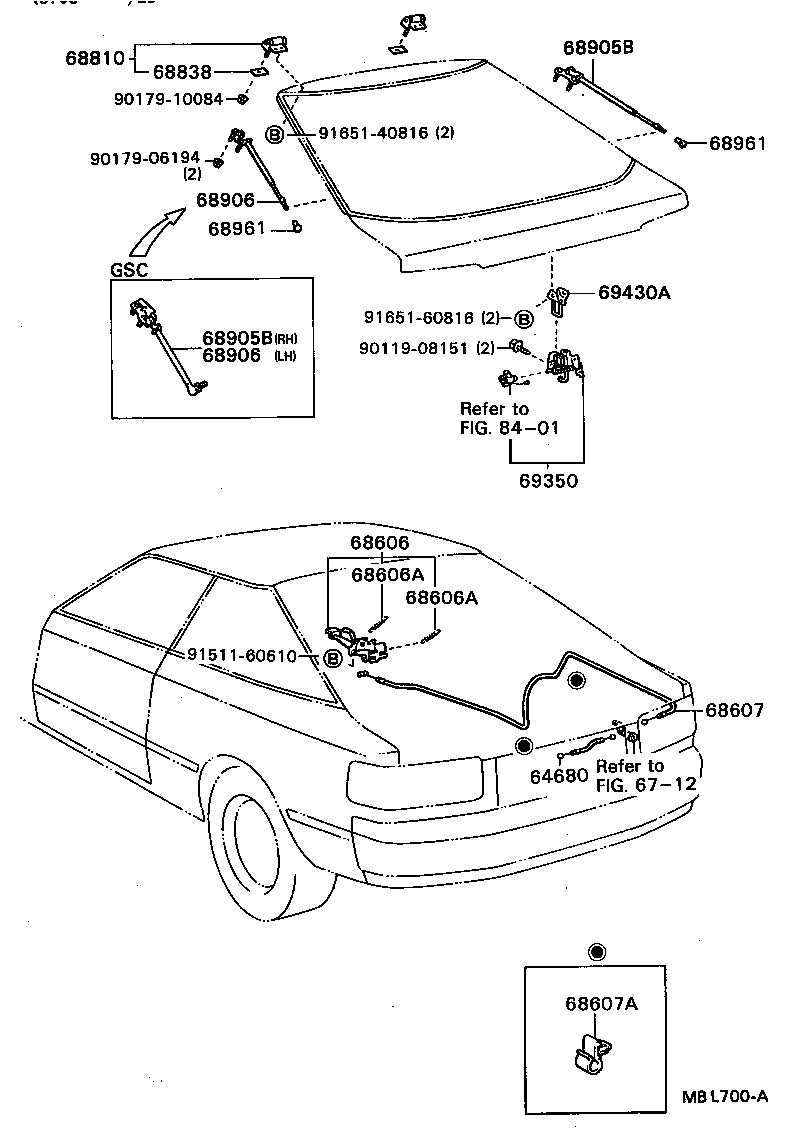

Click highlighted areas on diagram

diagram 64680 6712 68606 68606A 68606A 68607 68607A 68810 68838 68905B 68905B 68906 68906 68961 68961 69350 69430A 8401 9011908151 9017906194 9017910084 9151160610 9165140816 9165160816
Part # Description Qty Price
64680 - CABLE ASSY, BACK DOOR LOCK CONTROL
64680-20010

AT160,ST162..LB

 1
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-20070

AT160,ST162..LB..RHD

 1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09004

AT160,ST162..LB

 2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09004

AT160,ST162..LB

 2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-20190

AT160,ST162..LB..RHD

 1
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
69749-12010

AT160,ST162..LB

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-20030

AT160,ST162..LB

 2
68801-20031

AT160,ST162..LB

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-20011

AT160,ST162..LB

 2
68838-20010

AT160,ST162..LB

 2
68905B - STAY SUB-ASSY, BACK DOOR, RH
68905-20022

ST162..SX

KYB

 1
68905-20011

AT160,ST162..LB..(GT,ST)

KYB

 1
68905-20012

AT160,ST162..LB..(GT,ST)

KYB

 1
68905-20021

ST162..SX

KYB

 1
68905-20031

AT160,ST162..LB..(GT,ST)..TWC

W(REAR SPOILER & RR WIPER),KYB

 1
68905-20021

AT160,ST162..LB..(GT,ST)..TWC

W(RR WIPER),KYB

 1
68905-20032

ST162..SX

W(REAR SPOILER),KYB

 1
68950-20091

AT160,ST162..LB..(GT,ST)..TWC

GSC

 1
68950-20091

ST162..SX

GSC

 1
68905-20022

AT160,ST162..LB..(GT,ST)..TWC

W(RR WIPER),KYB

 1
68905-20032

AT160,ST162..LB..(GT,ST)..TWC

W(REAR SPOILER & RR WIPER),KYB

 1
68905-20031

ST162..SX

W(REAR SPOILER),KYB

 1
68905B - STAY SUB-ASSY, BACK DOOR, RH
68905-20022

ST162..SX

KYB

 1
68905-20011

AT160,ST162..LB..(GT,ST)

KYB

 1
68905-20012

AT160,ST162..LB..(GT,ST)

KYB

 1
68905-20021

ST162..SX

KYB

 1
68905-20031

AT160,ST162..LB..(GT,ST)..TWC

W(REAR SPOILER & RR WIPER),KYB

 1
68905-20021

AT160,ST162..LB..(GT,ST)..TWC

W(RR WIPER),KYB

 1
68905-20032

ST162..SX

W(REAR SPOILER),KYB

 1
68950-20091

AT160,ST162..LB..(GT,ST)..TWC

GSC

 1
68950-20091

ST162..SX

GSC

 1
68905-20022

AT160,ST162..LB..(GT,ST)..TWC

W(RR WIPER),KYB

 1
68905-20032

AT160,ST162..LB..(GT,ST)..TWC

W(REAR SPOILER & RR WIPER),KYB

 1
68905-20031

ST162..SX

W(REAR SPOILER),KYB

 1
68906 - STAY SUB-ASSY, BACK DOOR, LH
68906-20021

ST162..SX

KYB

 1
68906-20021

AT160,ST162..LB..(GT,ST)..TWC

W(RR WIPER),KYB

 1
68906-20011

AT160,ST162..LB..(GT,ST)

KYB

 1
68906-20022

ST162..SX

KYB

 1
68960-20031

ST162..SX

GSC

 1
68906-20031

AT160,ST162..LB..(GT,ST)..TWC

W(REAR SPOILER & RR WIPER),KYB

 1
68906-20012

AT160,ST162..LB..(GT,ST)

KYB

 1
68906-20032

AT160,ST162..LB..(GT,ST)..TWC

W(REAR SPOILER & RR WIPER),KYB

 1
68906-20032

ST162..SX

W(REAR SPOILER),KYB

 1
68960-20031

AT160,ST162..LB..(GT,ST)..TWC

GSC

 1
68906-20022

AT160,ST162..LB..(GT,ST)..TWC

W(RR WIPER),KYB

 1
68906-20031

ST162..SX

W(REAR SPOILER),KYB

 1
68906 - STAY SUB-ASSY, BACK DOOR, LH
68906-20021

ST162..SX

KYB

 1
68906-20021

AT160,ST162..LB..(GT,ST)..TWC

W(RR WIPER),KYB

 1
68906-20011

AT160,ST162..LB..(GT,ST)

KYB

 1
68906-20022

ST162..SX

KYB

 1
68960-20031

ST162..SX

GSC

 1
68906-20031

AT160,ST162..LB..(GT,ST)..TWC

W(REAR SPOILER & RR WIPER),KYB

 1
68906-20012

AT160,ST162..LB..(GT,ST)

KYB

 1
68906-20032

AT160,ST162..LB..(GT,ST)..TWC

W(REAR SPOILER & RR WIPER),KYB

 1
68906-20032

ST162..SX

W(REAR SPOILER),KYB

 1
68960-20031

AT160,ST162..LB..(GT,ST)..TWC

GSC

 1
68906-20022

AT160,ST162..LB..(GT,ST)..TWC

W(RR WIPER),KYB

 1
68906-20031

ST162..SX

W(REAR SPOILER),KYB

 1
68961 - BOLT, BACK DOOR STAY
68961-20060

AT160,ST162..LB

 2
68961 - BOLT, BACK DOOR STAY
68961-20060

AT160,ST162..LB

 2
69350 - LOCK ASSY, BACK DOOR
69350-20030

AT160,ST162..LB

 1
69430A - STRIKER ASSY, BACK DOOR LOWER LOCK
69430-20060

AT160,ST162..LB

 1
Common parts
90119-08151
90179-06194
90179-10084
91511-60610
91651-40816
91651-60816
Linked diagrams
6712
8401
