ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LB

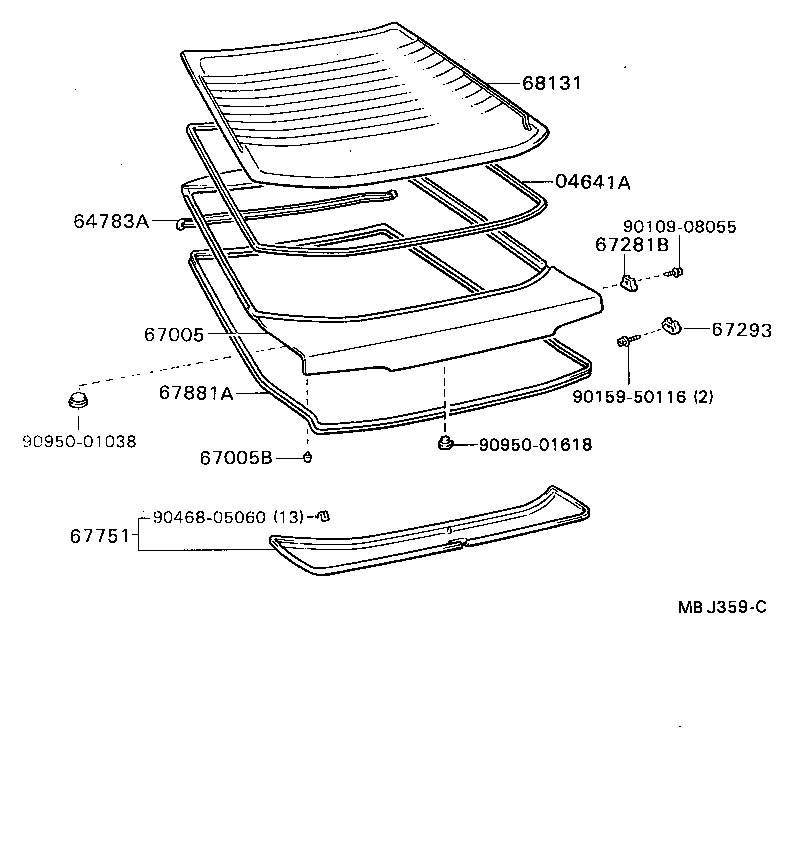

Click highlighted areas on diagram

diagram 04641A 64783A 67005 67005B 67281B 67293 67751 67881A 68131 9010908055 9015950116 9046805060 9095001038 9095001618
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
04562-30040

AT160,ST162..LB

 1
64783A - TRIM, BACK WINDOW PANEL, UPPER
64783-20020

AT160,ST162..LB

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-20621

AT160,ST162..LB..(GT,ST)

 1
67005-2B011

ST162..SX

W(REAR SPOILER)

 1
67005-20611

AT160,ST162..LB..(GT,ST)..TWC

W(RR WIPER)

 1
67005-20661

AT160,ST162..LB..(GT,ST)..TWC

W(REAR SPOILER & RR WIPER)

 1
67005-20631

ST162..LB..ST

W(RR WIPER)

 1
67005-2B021

ST162..SX

 1
67005-20641

ST162..LB..ST

 1
67005-2B170

ST162..SX

 1
67005-20681

ST162..LB..ST

W(REAR SPOILER & RR WIPER)

 1
67005-20681

ST162..SX

W(REAR SPOILER)

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09041

AT160,ST162..LB

 2
67281B - STOPPER, BACK DOOR, LOWER
67281-20020

AT160,ST162..LB

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-20020

AT160,ST162..LB

 2
67751 - BOARD, BACK DOOR TRIM
64781-2004001

AT160,ST162..LB

BLACK,TRIM2#

 1
64781-2004005

AT160,ST162..LB

DARK BEIGE,TRIM4#

 1
64781-2005001

ST162..LB

BLACK,TRIM2#

 1
64781-2005005

ST162..LB

DARK BEIGE,TRIM4#

 1
64781-2004004

AT160,ST162..LB

DEEP BLUE,TRIM8#

 1
64781-2005004

ST162..LB

DEEP BLUE,TRIM8#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-20050

AT160,ST162..LB

 1
68131 - GLASS, BACK DOOR
68131-20150

ST162..LB

*EHTT,T=4.0

 1
Common parts
90109-08055
90159-50116
90468-05060
90950-01038
90950-01618
