ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LB

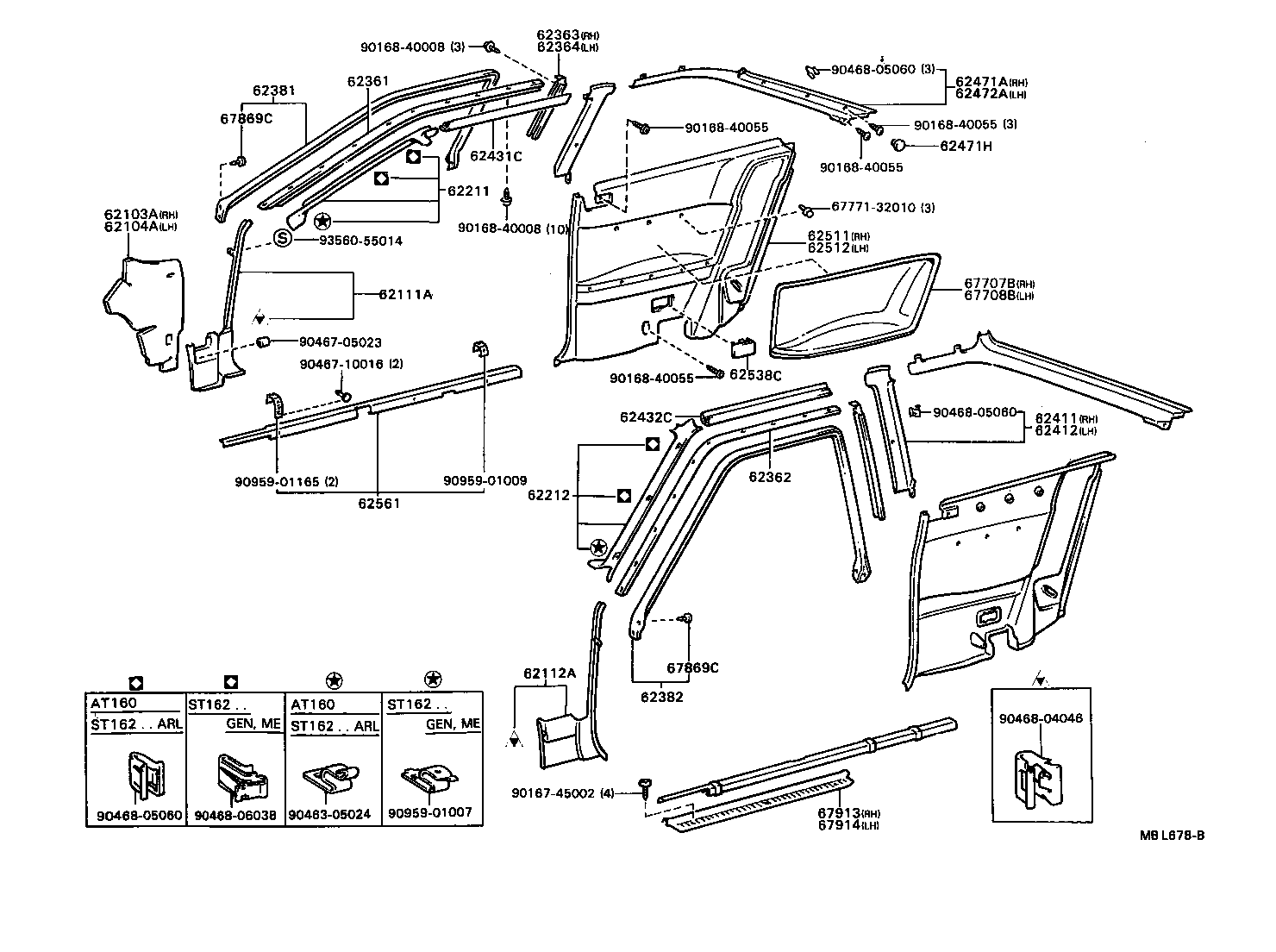

Click highlighted areas on diagram

diagram 62103A 62104A 62111A 62112A 62211 62212 62361 62362 62363 62364 62381 62382 62411 62412 62431C 62432C 62471A 62471H 62472A 62511 62512 62538C 62561 67707B 67708B 6777132010 67869C 67869C 67913 67914 9016745002 9016840008 9016840008 9016840055 9016840055 9016840055 9016840055 9046305024 9046705023 9046710016 9046804046 9046805060 9046805060 9046805060 9046806038 9095901007 9095901009 9095901165 9356055014
Part # Description Qty Price
62103A - INSULATOR SUB-ASSY, COWL SIDE, RH
62105-20080

AT160,ST162..RHD

 1
62104A - INSULATOR SUB-ASSY, COWL SIDE, LH
62106-20080

AT160,ST162..RHD

 1
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62101-2015005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
62101-2015001

AT160,ST162..RHD

BLACK,TRIM2#

 1
62101-2015004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62102-2012005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
62102-2012001

AT160,ST162..RHD

BLACK,TRIM2#

 1
62102-2012004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-2014004

AT160,ST162..ARL,GEN

DEEP BLUE,TRIM8#

 1
62211-2014005

AT160,ST162..ARL,GEN

DARK BEIGE,TRIM4#

 1
62211-2014001

AT160,ST162..ARL,GEN

BLACK,TRIM2#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-2014004

AT160,ST162..ARL,GEN

DEEP BLUE,TRIM8#

 1
62212-2014005

AT160,ST162..ARL,GEN

DARK BEIGE,TRIM4#

 1
62212-2014001

AT160,ST162..ARL,GEN

BLACK,TRIM2#

 1
62361 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
62361-20030

AT160,ST162

 1
62362 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
62362-20030

AT160,ST162

 1
62363 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH
62371-20040

AT160,ST162

 1
62364 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH
62372-20030

AT160,ST162

 1
62381 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
62381-20040

AT160,ST162

 1
62382 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
62382-20040

AT160,ST162

 1
62411 - GARNISH, CENTER PILLAR, RH
62411-2023001

AT160,ST162

BLACK,TRIM2#

 1
62411-2023005

AT160,ST162

DARK BEIGE,TRIM4#

 1
62411-2023004

AT160,ST162

DEEP BLUE,TRIM8#

 1
62412 - GARNISH, CENTER PILLAR, LH
62412-2023005

AT160,ST162

DARK BEIGE,TRIM4#

 1
62412-2023004

AT160,ST162

DEEP BLUE,TRIM8#

 1
62412-2023001

AT160,ST162

BLACK,TRIM2#

 1
62431C - GARNISH, ROOF SIDE RAIL, FRONT RH
62431-2003005

AT160,ST162

DARK BEIGE,TRIM4#

 1
62431-2003001

AT160,ST162

BLACK,TRIM2#

 1
62431-2003004

AT160,ST162

DEEP BLUE,TRIM8#

 1
62432C - GARNISH, ROOF SIDE RAIL, FRONT LH
62431-2003001

AT160,ST162

BLACK,TRIM2#

 1
62431-2003004

AT160,ST162

DEEP BLUE,TRIM8#

 1
62431-2003005

AT160,ST162

DARK BEIGE,TRIM4#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-2023005

AT160,ST162..LB

DARK BEIGE,TRIM4#

 1
62471-2023001

AT160,ST162..LB

BLACK,TRIM2#

 1
62471-2023004

AT160,ST162..LB

DEEP BLUE,TRIM8#

 1
62471-2023001

ST162..LB

BLACK,TRIM2#

 1
62471-2023005

ST162..LB

DARK BEIGE,TRIM4#

 1
62471-2023004

ST162..LB

DEEP BLUE,TRIM8#

 1
62471H - PLUG, HOLE(FOR ROOF SIDE INNER GARNISH)
90950-0150305

AT160,ST162..LB

DARK BEIGE,TRIM4#

 6
90950-0150304

AT160,ST162..LB

BLUE,TRIM8#

 6
90950-0150301

AT160,ST162..LB

BLACK,TRIM2#

 6
62472A - GARNISH, ROOF SIDE, INNER LH
62472-2025005

AT160,ST162..LB

DARK BEIGE,TRIM4#

 1
62472-2025001

ST162..LB

BLACK,TRIM2#

 1
62472-2025001

AT160,ST162..LB

BLACK,TRIM2#

 1
62472-2025004

ST162..LB

DEEP BLUE,TRIM8#

 1
62472-2025004

AT160,ST162..LB

DEEP BLUE,TRIM8#

 1
62472-2025005

ST162..LB

DARK BEIGE,TRIM4#

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62511-2013004

AT160,ST162..LB..ST

DEEP BLUE,TRIM8#

 1
62511-2013005

AT160,ST162..LB..ST

DARK BEIGE,TRIM4#

 1
62511-2014001

AT160,ST162..LB..(GT,SX)

BLACK,TRIM2#

 1
62511-2013001

AT160,ST162..LB..ST

BLACK,TRIM2#

 1
62511-2014004

AT160,ST162..LB..(GT,SX)

DEEP BLUE,TRIM8#

 1
62511-2014005

AT160,ST162..LB..(GT,SX)

DARK BEIGE,TRIM4#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62512-2014004

AT160,ST162..LB..(GT,SX)

DEEP BLUE,TRIM8#

 1
62512-2014005

AT160,ST162..LB..(GT,SX)

DARK BEIGE,TRIM4#

 1
62512-2014001

AT160,ST162..LB..(GT,SX)

BLACK,TRIM2#

 1
62512-2013001

AT160,ST162..LB..ST

BLACK,TRIM2#

 1
62512-2013005

AT160,ST162..LB..ST

DARK BEIGE,TRIM4#

 1
62512-2013004

AT160,ST162..LB..ST

DEEP BLUE,TRIM8#

 1
62538C - COVER, QUARTER TRIM, HOLE
62538-1401005

AT160,ST162

DARK BEIGE,TRIM4#

 2
62538-1401011

AT160,ST162

BLACK,TRIM2#

 2
62538-1401014

AT160,ST162

DEEP BLUE,TRIM8#

 2
62561 - PROTECTOR, ROCKER PANEL, INNER FRONT
62561-20061

AT160,ST162..ARL,GEN

RH

 1
62562-20041

AT160,ST162..ARL,GEN

LH

 1
67707B - ORNAMENT SUB-ASSY, QUARTER TRIM, RH
67707-2014005

AT160,ST162..GT,SX

DARK BEIGE,TRIM4#

 1
67707-2014004

AT160,ST162..GT,SX

DEEP BLUE,TRIM8#

 1
67707-2014013

AT160,ST162..GT,SX

GRAY,TRIM2#

 1
67708B - ORNAMENT SUB-ASSY, QUARTER TRIM, LH
67708-2015013

AT160,ST162..GT,SX

GRAY,TRIM2#

 1
67708-2015004

AT160,ST162..GT,SX

DEEP BLUE,TRIM8#

 1
67708-2015005

AT160,ST162..GT,SX

DARK BEIGE,TRIM4#

 1
67869C - CLIP, ROOF SIDE RAIL WEATHERSTRIP
67869-30020

AT160,ST162

 8
67869C - CLIP, ROOF SIDE RAIL WEATHERSTRIP
67869-30020

AT160,ST162

 8
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-2014001

AT160,ST162

BLACK,TRIM2#

 1
67913-2014004

AT160,ST162

DEEP BLUE,TRIM8#

 1
67913-2014005

AT160,ST162

DARK BEIGE,TRIM4#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67913-2014001

AT160,ST162

BLACK,TRIM2#

 1
67913-2014004

AT160,ST162

DEEP BLUE,TRIM8#

 1
67913-2014005

AT160,ST162

DARK BEIGE,TRIM4#

 1
Common parts
67771-32010
90167-45002
90168-40008
90168-40055
90463-05024
90467-05023
90467-10016
90468-04046
90468-05060
90468-06038
90959-01007
90959-01009
90959-01165
93560-55014
