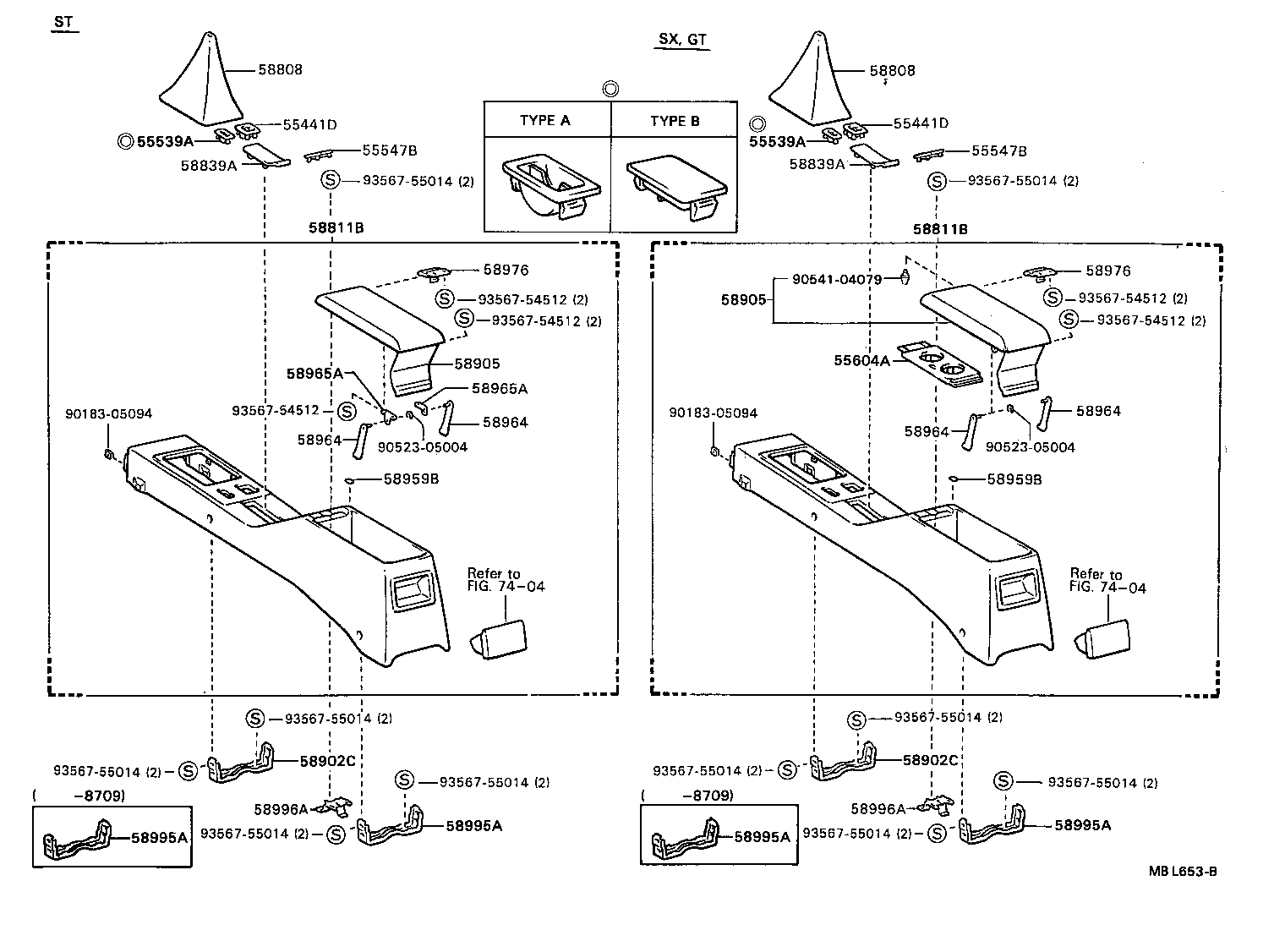

ST162R-BLMVFQ (1987)
Toyota Celica
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2015004 |
AT160,ST162 DEEP BLUE,TRIM8# |
1 | ||
| 55441-2015001 |
AT160,ST162 BLACK,TRIM2# |
1 | ||
| 55441-2015005 |
AT160,ST162 DARK BEIGE,TRIM4# |
1 | ||
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2015004 |
AT160,ST162 DEEP BLUE,TRIM8# |
1 | ||
| 55441-2015001 |
AT160,ST162 BLACK,TRIM2# |
1 | ||
| 55441-2015005 |
AT160,ST162 DARK BEIGE,TRIM4# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2002004 |
ST162..5F..(GT,SX);AT160,ST162..(GT,ST)..(ARL,GEN) TYPE A,DEEP BLUE,TRIM8#,TYPE A |
1 | ||
| 55539-2003004 |
AT160,ST162 TYPE B,DEEP BLUE,TRIM8#,TYPE B |
1 | ||
| 55539-2003001 |
AT160,ST162 TYPE B,BLACK,TRIM2#,TYPE B |
1 | ||
| 55539-2002011 |
ST162..5F..(GT,SX);AT160,ST162..(GT,ST)..(ARL,GEN) TYPE A,BLACK,TRIM2#,TYPE A |
1 | ||
| 55539-2002005 |
ST162..5F..(GT,SX);AT160,ST162..(GT,ST)..(ARL,GEN) BEIGE,TRIM4#,TYPE A |
1 | ||
| 55539-2003005 |
AT160,ST162 DARK BEIGE,TRIM4#,TYPE B |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2002004 |
ST162..5F..(GT,SX);AT160,ST162..(GT,ST)..(ARL,GEN) TYPE A,DEEP BLUE,TRIM8#,TYPE A |
1 | ||
| 55539-2003004 |
AT160,ST162 TYPE B,DEEP BLUE,TRIM8#,TYPE B |
1 | ||
| 55539-2003001 |
AT160,ST162 TYPE B,BLACK,TRIM2#,TYPE B |
1 | ||
| 55539-2002011 |
ST162..5F..(GT,SX);AT160,ST162..(GT,ST)..(ARL,GEN) TYPE A,BLACK,TRIM2#,TYPE A |
1 | ||
| 55539-2002005 |
ST162..5F..(GT,SX);AT160,ST162..(GT,ST)..(ARL,GEN) BEIGE,TRIM4#,TYPE A |
1 | ||
| 55539-2003005 |
AT160,ST162 DARK BEIGE,TRIM4#,TYPE B |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-20010 |
AT160,ST162..GT,SX |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-2005001 |
AT160,ST162..5F BLACK,TRIM2# |
1 | ||
| 58808-2005005 |
AT160,ST162..5F DARK BEIGE,TRIM4# |
1 | ||
| 58808-2005004 |
AT160,ST162..5F DEEP BLUE,TRIM8# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-2005001 |
AT160,ST162..5F BLACK,TRIM2# |
1 | ||
| 58808-2005005 |
AT160,ST162..5F DARK BEIGE,TRIM4# |
1 | ||
| 58808-2005004 |
AT160,ST162..5F DEEP BLUE,TRIM8# |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58801-2015004 |
AT160,ST162..GT,SX DEEP BLUE,TRIM8# |
1 | ||
| 58801-2015005 |
AT160,ST162..GT,SX DARK BEIGE,TRIM4# |
1 | ||
| 58801-2014001 |
AT160,ST162..ST BLACK,TRIM2# |
1 | ||
| 58801-2014005 |
AT160,ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 58801-2014004 |
AT160,ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 58801-2015001 |
AT160,ST162..GT,SX BLACK,TRIM2# |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58801-2015004 |
AT160,ST162..GT,SX DEEP BLUE,TRIM8# |
1 | ||
| 58801-2015005 |
AT160,ST162..GT,SX DARK BEIGE,TRIM4# |
1 | ||
| 58801-2014001 |
AT160,ST162..ST BLACK,TRIM2# |
1 | ||
| 58801-2014005 |
AT160,ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 58801-2014004 |
AT160,ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 58801-2015001 |
AT160,ST162..GT,SX BLACK,TRIM2# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-2002004 |
AT160,ST162 DEEP BLUE,TRIM8# |
1 | ||
| 58839-2002005 |
AT160,ST162 DARK BEIGE,TRIM4# |
1 | ||
| 58839-2002001 |
AT160,ST162 BLACK,TRIM2# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-2002004 |
AT160,ST162 DEEP BLUE,TRIM8# |
1 | ||
| 58839-2002005 |
AT160,ST162 DARK BEIGE,TRIM4# |
1 | ||
| 58839-2002001 |
AT160,ST162 BLACK,TRIM2# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-20040 |
AT160,ST162 |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-20040 |
AT160,ST162 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-2007005 |
AT160,ST162..GT,SX DARK BEIGE,TRIM4# |
1 | ||
| 58951-2007001 |
AT160,ST162..ST BLACK,TRIM2# |
1 | ||
| 58905-2007001 |
AT160,ST162..GT,SX BLACK,TRIM2# |
1 | ||
| 58905-2007004 |
AT160,ST162..GT,SX DEEP BLUE,TRIM8# |
1 | ||
| 58951-2007005 |
AT160,ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 58951-2007004 |
AT160,ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-2007005 |
AT160,ST162..GT,SX DARK BEIGE,TRIM4# |
1 | ||
| 58951-2007001 |
AT160,ST162..ST BLACK,TRIM2# |
1 | ||
| 58905-2007001 |
AT160,ST162..GT,SX BLACK,TRIM2# |
1 | ||
| 58905-2007004 |
AT160,ST162..GT,SX DEEP BLUE,TRIM8# |
1 | ||
| 58951-2007005 |
AT160,ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 58951-2007004 |
AT160,ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
AT160,ST162 |
2 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
AT160,ST162 |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30030 |
AT160,ST162..ST LH |
1 | ||
| 58964-30040 |
AT160,ST162..GT,SX LH |
1 | ||
| 58964-90K00 |
AT160,ST162 RH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30030 |
AT160,ST162..ST LH |
1 | ||
| 58964-30040 |
AT160,ST162..GT,SX LH |
1 | ||
| 58964-90K00 |
AT160,ST162 RH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30030 |
AT160,ST162..ST LH |
1 | ||
| 58964-30040 |
AT160,ST162..GT,SX LH |
1 | ||
| 58964-90K00 |
AT160,ST162 RH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30030 |
AT160,ST162..ST LH |
1 | ||
| 58964-30040 |
AT160,ST162..GT,SX LH |
1 | ||
| 58964-90K00 |
AT160,ST162 RH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
AT160,ST162..ST LH |
1 | ||
| 58965-20020 |
AT160,ST162..ST RH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
AT160,ST162..ST LH |
1 | ||
| 58965-20020 |
AT160,ST162..ST RH |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
AT160,ST162 |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
AT160,ST162 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
AT160,ST162 |
2 | ||
| 58995-20030 |
AT160,ST162 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
AT160,ST162 |
2 | ||
| 58995-20030 |
AT160,ST162 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
AT160,ST162 |
2 | ||
| 58995-20030 |
AT160,ST162 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
AT160,ST162 |
2 | ||
| 58995-20030 |
AT160,ST162 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-20030 |
AT160,ST162 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-20030 |
AT160,ST162 |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90523-05004 | ||||
| 90541-04079 | ||||
| 93567-54512 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
