ST162R-BLMVFQ (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )LB

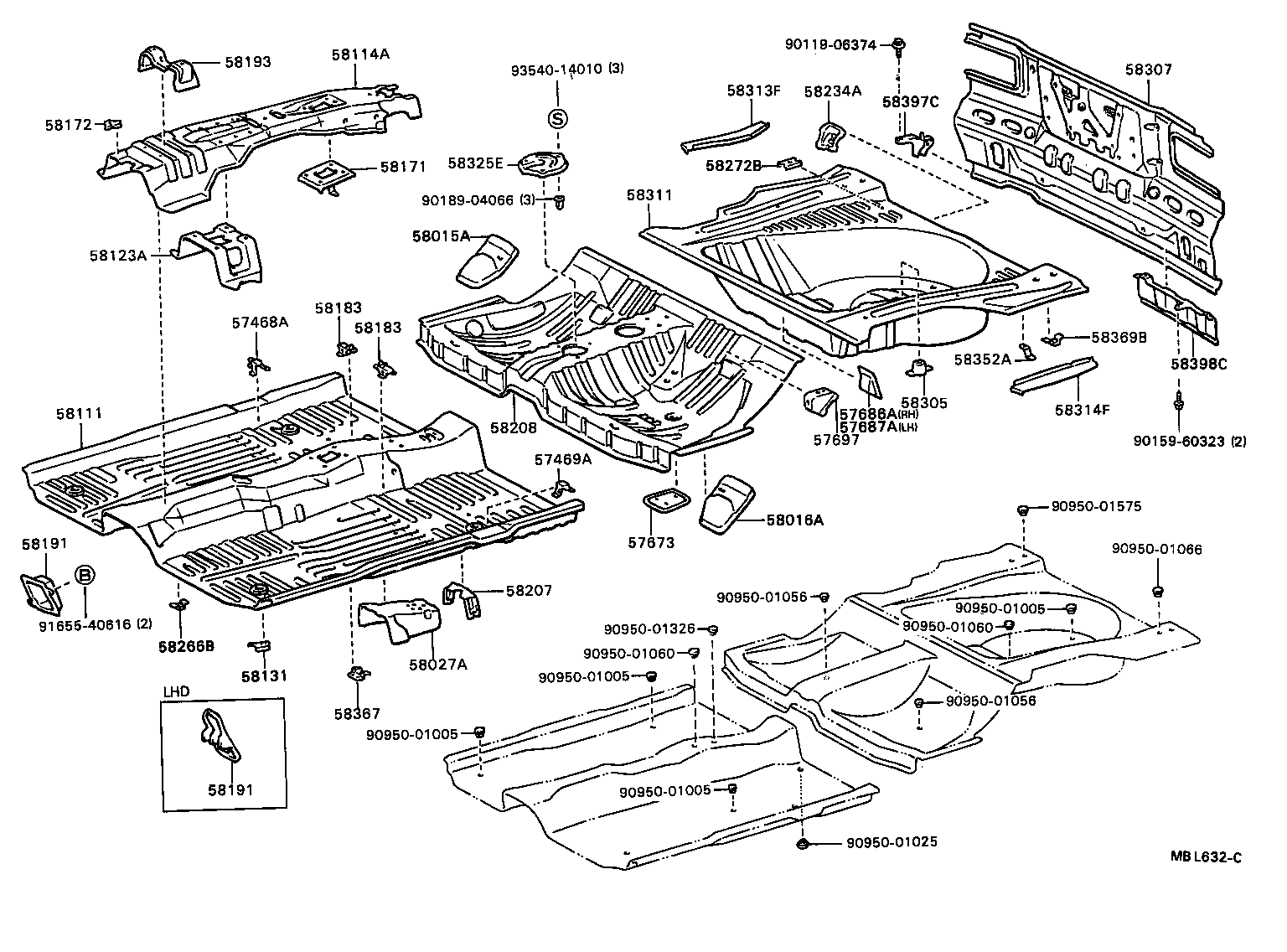

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-20040 |
AT160,ST162 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-20040 |
AT160,ST162 |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-20060 |
AT160,ST162..GT;AT160,ST162..LB..(ST,SX) |
1 | ||
| 57686A - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57686-20030 |
AT160,ST162 |
1 | ||
| 57687A - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57686-20030 |
AT160,ST162 |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-20010 |
AT160,ST162 |
2 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-20031 |
AT160,ST162 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-20031 |
AT160,ST162 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-20030 |
AT160,ST162 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-20100 |
AT160,ST162 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-20020 |
AT160,ST162 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-20010 |
AT160,ST162 |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-20050 |
AT160,ST162 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-20050 |
AT160,ST162 |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-20020 |
AT160,ST162 |
2 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-20050 |
AT160,ST162 RH |
1 | ||
| 58184-20050 |
AT160,ST162 LH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-20050 |
AT160,ST162 RH |
1 | ||
| 58184-20050 |
AT160,ST162 LH |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-20020 |
AT160,ST162..RHD |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-20020 |
AT160,ST162..RHD |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-20040 |
AT160,ST162 |
1 | ||
| 58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1 | ||||
| 58207-20080 |
AT160,ST162 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-20191 |
AT160,ST162 |
1 | ||
| 58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER | ||||
| 58234-20020 |
AT160,ST162 |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-22040 |
AT160,ST162 |
4 | ||
| 58272B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4 | ||||
| 58272-20050 |
ST162..LB |
2 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
AT160,ST162 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-20510 |
ST162..LB |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-20220 |
ST162..LB |
1 | ||
| 58311-20220 |
AT160,ST162 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-20170 |
AT160,ST162..LB |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-20150 |
AT160,ST162..LB |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-20030 |
AT160,ST162 |
1 | ||
| 58352A - BRACKET, REAR FLOOR STAY | ||||
| 58352-20040 |
AT160,ST162 |
1 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58367-20040 |
AT160,ST162 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-20010 |
AT160,ST162 |
4 | ||
| 58369-20010 |
AT160,ST162 |
5 | ||
| 58397C - COVER, BODY LOWER BACK, RH | ||||
| 58397-20050 |
AT160,ST162 |
1 | ||
| 58398C - COVER, BODY LOWER BACK, LH | ||||
| 58398-20040 |
AT160,ST162..LB |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90159-60323 | ||||
| 90189-04066 | ||||
| 90950-01005 | ||||
| 90950-01025 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01066 | ||||
| 90950-01326 | ||||
| 90950-01575 | ||||
| 91655-40616 | ||||
| 93540-14010 | ||||
