ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )RHD

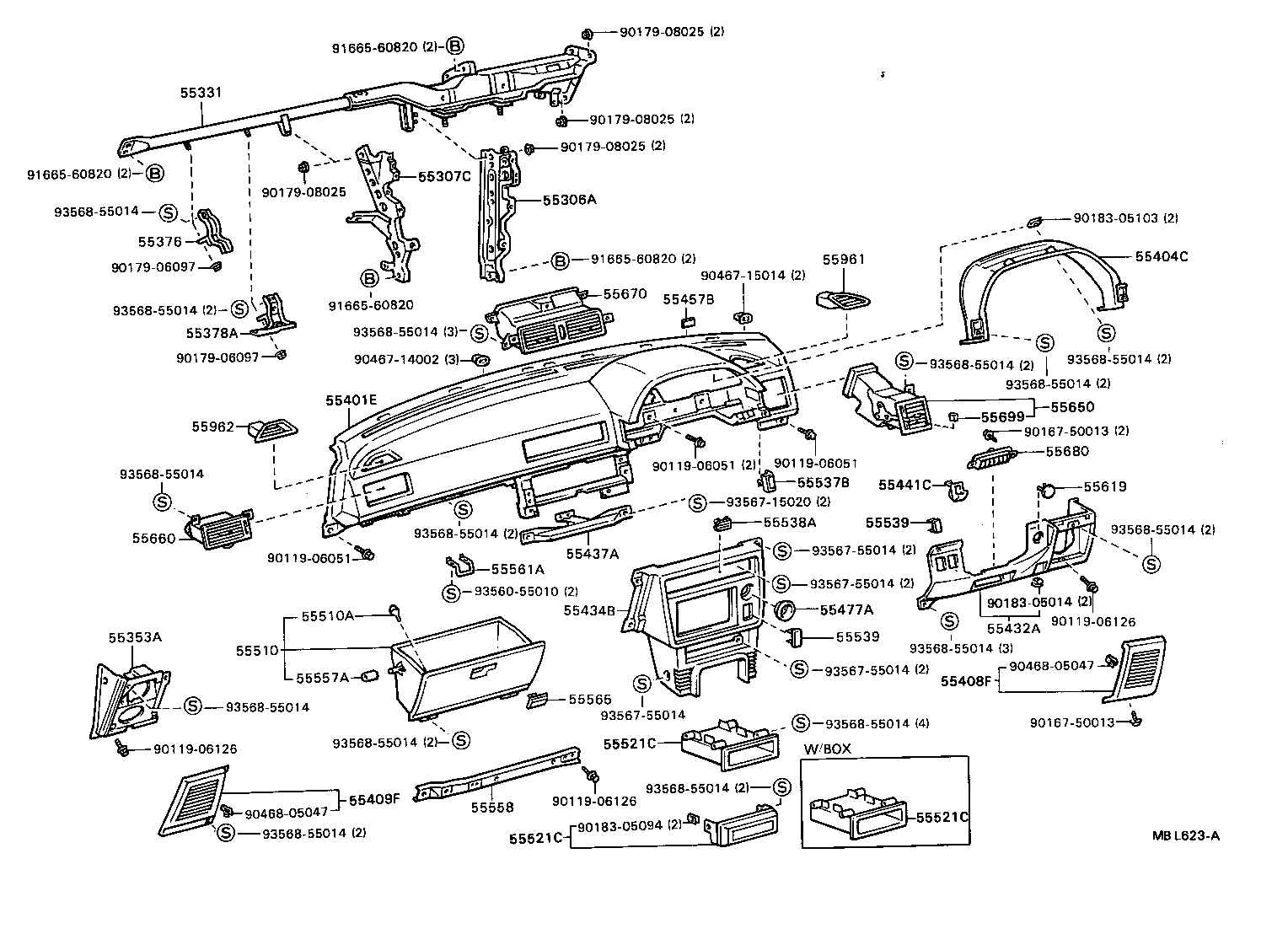

Click highlighted areas on diagram

diagram 55306A 55307C 55331 55353A 55376 55378A 55401E 55404C 55408F 55409F 55432A 55434B 55437A 55441C 55457B 55477A 55510 55510A 55521C 55521C 55521C 55537B 55538A 55539 55539 55557A 55558 55561A 55565 55619 55650 55660 55670 55680 55699 55961 55962 9011906051 9011906051 9011906051 9011906126 9011906126 9011906126 9016750013 9016750013 9017906097 9017906097 9017908025 9017908025 9017908025 9017908025 9018305014 9018305094 9018305103 9046714002 9046715014 9046805047 9046805047 9166560820 9166560820 9166560820 9166560820 9356055010 9356715020 9356755014 9356755014 9356755014 9356755014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-20060

AT160,ST162..RHD

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-20060

AT160,ST162..RHD

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-20070

AT160,ST162..RHD

 1
55353A - BRACKET, SPEAKER MOUNTING, NO.1
55353-2005001

AT160,ST162..RHD

BLACK,TRIM2#

 1
55353-2005004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55353-2005005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-20030

AT160,ST162

 1
55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55378-20080

AT160,ST162..RHD

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-2047004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55401-2047001

AT160,ST162..RHD

BLACK,TRIM2#

 1
55401-2047005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-20200

AT160,ST162..RHD

 1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55472-2009004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55472-2009001

AT160,ST162..RHD

BLACK,TRIM2#

 1
55472-2009005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55473-2008005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
55473-2008004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55473-2008001

AT160,ST162..RHD

BLACK,TRIM2#

 1
55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH
55432-2017004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55432-2017005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
55432-2017001

AT160,ST162..RHD

BLACK,TRIM2#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-2005001

AT160,ST162..RHD

BLACK,TRIM2#

 1
55434-2005004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55434-2005005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1
55437-20040

AT160,ST162

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-2014005

AT160,ST162

DARK BEIGE,TRIM4#

 1
55441-2014011

AT160,ST162

BLACK,TRIM2#

 1
55441-2014024

AT160,ST162

DEEP BLUE,TRIM8#

 1
55441-2014026

AT160,ST162

SABLE,SABLE,TRIM4#

 1
55441-2014011

AT160..CP;AT160,ST162..TWC

BLACK,TRIM2#

 1
55457B - SPACER, INSTRUMENT PANEL SAFETY PAD
55355-20060

AT160,ST162

 2
55355-20060

AT160,ST162..RHD

 2
55457-22030

AT160,ST162

 5
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-20060

AT160,ST162

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-2011105

ST162;AT160..LB;AT160..CP..CBR

DARK BEIGE,TRIM4#

 1
55550-2011005

AT160,ST162

DARK BEIGE,TRIM4#

 1
55550-2011001

AT160,ST162

BLACK,TRIM2#

 1
55550-2011101

ST162;AT160..LB;AT160..CP..CBR

BLACK,TRIM2#

 1
55550-2011004

AT160,ST162

DEEP BLUE,TRIM8#

 1
55550-2011104

ST162;AT160..LB;AT160..CP..CBR

DEEP BLUE,TRIM8#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-03015

AT160,ST162

 3
55521C - COVER, STEREO OPENING
55521-16010

ST162

 1
55521C - COVER, STEREO OPENING
55521-16010

ST162

 1
55521C - COVER, STEREO OPENING
55521-16010

ST162

 1
55538A - COVER, COOLER SWITCH HOLE
55538-20050

AT160,ST162..RHD

 1
55539 - COVER, SPARE SWITCH HOLE
55539-2003005

AT160,ST162

DARK BEIGE,TRIM4#,DRIVER FINISH PANEL

 1
55539-2003004

AT160,ST162

DEEP BLUE,TRIM8#,DRIVER FINISH PANEL

 1
55539-2003001

AT160,ST162

BLACK,TRIM2#,DRIVER FINISH PANEL

 1
55539-3201011

AT160,ST162

BLACK,TRIM2#,4#,8#,CENTER FINISH PANEL

 1
55539 - COVER, SPARE SWITCH HOLE
55539-2003005

AT160,ST162

DARK BEIGE,TRIM4#,DRIVER FINISH PANEL

 1
55539-2003004

AT160,ST162

DEEP BLUE,TRIM8#,DRIVER FINISH PANEL

 1
55539-2003001

AT160,ST162

BLACK,TRIM2#,DRIVER FINISH PANEL

 1
55539-3201011

AT160,ST162

BLACK,TRIM2#,4#,8#,CENTER FINISH PANEL

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-16010

AT160,ST162

 2
55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR
55558-20060

AT160,ST162..RHD

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-20050

AT160,ST162

 1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-2004004

AT160,ST162

DEEP BLUE,TRIM8#

 1
55565-2004001

AT160,ST162

NEW BLACK,TRIM2#

 1
55565-2004005

AT160,ST162

DARK BEIGE,TRIM4#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-2012005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
55650-2012004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55650-2012001

AT160,ST162..RHD

BLACK,TRIM2#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-2006104

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55660-2006105

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
55660-2006101

AT160,ST162..RHD

BLACK,TRIM2#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-2006105

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
55670-2006101

AT160,ST162..RHD

BLACK,TRIM2#

 1
55670-2006104

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-32010

ST162..ARL

 1
55699 - KNOB, INSTRUMENT PANEL REGISTER CONTROL
55905-2023004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55905-2023005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
55905-2023001

AT160,ST162..RHD

BLACK,TRIM2#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-2010004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55961-2010005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
55961-2010001

AT160,ST162..RHD

BLACK,TRIM2#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-2011004

AT160,ST162..RHD

DEEP BLUE,TRIM8#

 1
55962-2011001

AT160,ST162..RHD

BLACK,TRIM2#

 1
55962-2011005

AT160,ST162..RHD

DARK BEIGE,TRIM4#

 1
Common parts
90119-06051
90119-06126
90167-50013
90179-06097
90179-08025
90183-05014
90183-05094
90183-05103
90467-14002
90467-15014
90468-05047
91665-60820
93560-55010
93567-15020
93567-55014
93568-55014
