ST162R-BLMVFQ (1987)
Toyota Celica

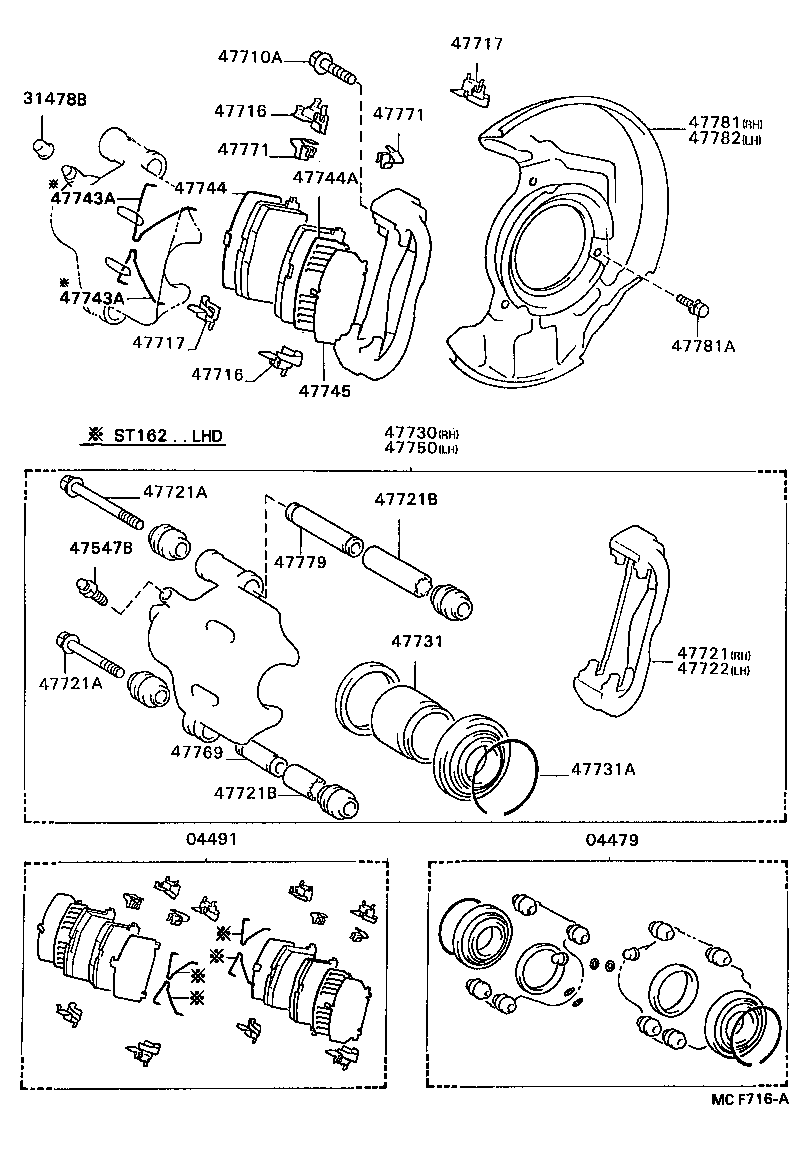

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-20070 |
AT160,ST162 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-20220 |
AT160,ST162..(ARL,GEN)..TWC |
1 | ||
| 04491-20221 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 04491-20401 |
ST162..GT,SX |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AT160,ST162 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
AT160,ST162 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12040 |
AT160,ST162 *12-1.25PX25.8-19.5 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-20111 |
ST162 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-20111 |
ST162 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-20061 |
ST162 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-20061 |
ST162 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-20100 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 47721-20110 |
ST162..GT,SX |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09007 |
AT160,ST162 *9-1.25PX73-25 |
2 | ||
| 90119-09008 |
AT160,ST162 *9-1.25PX93-25 |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09007 |
AT160,ST162 *9-1.25PX73-25 |
2 | ||
| 90119-09008 |
AT160,ST162 *9-1.25PX93-25 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-15004 |
AT160,ST162 |
2 | ||
| 90387-15005 |
AT160,ST162 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-15004 |
AT160,ST162 |
2 | ||
| 90387-15005 |
AT160,ST162 |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-20100 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 47721-20110 |
ST162..GT,SX |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-20211 |
ST162..GT,SX |
1 | ||
| 47730-20201 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20090 |
AT160,ST162 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-64003 |
AT160,ST162 |
2 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-32020 |
ST162..GT,SX |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-32020 |
ST162..GT,SX |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-20050 |
AT160,ST162 |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47742-20010 |
AT160,ST162..(ARL,GEN)..TWC |
2 | ||
| 47742-20030 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
2 | ||
| 47742-32040 |
ST162..GT,SX |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-32010 |
AT160,ST162..(ARL,GEN)..TWC |
2 | ||
| 47745-32040 |
AT160,ST162..TWC |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-20191 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 47750-20201 |
ST162..GT,SX |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-20010 |
AT160,ST162 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-20030 |
AT160,ST162 |
2 | ||
| 47771-20030 |
AT160,ST162 |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-20030 |
AT160,ST162 |
2 | ||
| 47771-20030 |
AT160,ST162 |
4 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-20010 |
AT160,ST162 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-20150 |
ST162..GT,SX |
1 | ||
| 47781-20140 |
AT160,ST162..(GT,ST)..(ARL,GEN) |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
AT160,ST162 |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-20140 |
AT160,ST162..(GT,ST)..(ARL,GEN) |
1 | ||
| 47782-20150 |
ST162..GT,SX |
1 | ||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-20300 |
AT160,ST162..(ARL,GEN)..TWC |
1 | ||
| 04465-21010 |
ST162..GT,SX MARK AISIN T536 |
1 | ||
| 04465-20300 |
ST162..ST |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-20070 |
AT160,ST162..(ARL,GEN)..TWC |
1 | ||
| 04945-32090 |
ST162..GT,SX |
1 | ||
| 04945-20070 |
ST162..ST |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-32010 |
AT160,ST162..(ARL,GEN)..TWC |
1 | ||
| 04947-32080 |
ST162..GT,SX |
1 | ||
| 04947-32010 |
ST162..ST |
1 | ||
