ST162R-BLMVFQ (1987)
Toyota Celica
ILLUST NO. 1 OF 2(8708-8812)ST162 ; (8708- )AT160 ; (8812-)ST162..GT,ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20590 |
AT160,ST162..RHD |
1 | ||
| 04443-20400 |
AT160,ST162..TWC |
1 | ||
| 04443-20650 |
ST162..SX |
1 | ||
| 04443-20590 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 04443-20400 |
AT160,ST162..(GT,ST)..TWC |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
AT160,ST162..GT,ST |
1 | ||
| 44606-12520 |
AT160,ST162 |
1 | ||
| 44606-20800 |
ST162..SX |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20860 |
ST162..SX |
1 | ||
| 44610-20770 |
AT160,ST162..RHD |
1 | ||
| 44610-20770 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AT160,ST162 |
1 | ||
| 44621-28120 |
AT160,ST162..GT,ST |
1 | ||
| 44621-14030 |
ST162..SX |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
ST162..SX |
1 | ||
| 44628-28120 |
AT160,ST162 |
1 | ||
| 44628-28120 |
AT160,ST162..GT,ST |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-28120 |
AT160,ST162 |
1 | ||
| 44635-28120 |
AT160,ST162..GT,ST |
1 | ||
| 44635-20800 |
ST162..SX |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
AT160..CBR;AT160,ST162..RHD |
1 | ||
| 44642-32010 |
AT160..CBR;AT160,ST162..RHD..(GT,ST) |
1 | ||
| 44642-20800 |
ST162..SX |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT160,ST162 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20590 |
AT160,ST162..RHD |
1 | ||
| 04443-20400 |
AT160,ST162..TWC |
1 | ||
| 04443-20650 |
ST162..SX |
1 | ||
| 04443-20590 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 04443-20400 |
AT160,ST162..(GT,ST)..TWC |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-10080 |
AT160,ST162..RHD |
1 | ||
| 44605-10080 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
AT160,ST162..GT,ST |
1 | ||
| 44608-32020 |
AT160,ST162 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20860 |
ST162..SX |
1 | ||
| 44610-20770 |
AT160,ST162..RHD |
1 | ||
| 44610-20770 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
AT160,ST162 |
1 | ||
| 44633-28130 |
AT160,ST162..GT,ST |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32040 |
AT160,ST162..TWC |
1 | ||
| 44637-32040 |
AT160,ST162..(GT,ST)..TWC |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 44645-10080 |
AT160,ST162..RHD |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32020 |
AT160,ST162 |
1 | ||
| 44673-32020 |
AT160,ST162..GT,ST |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT160,ST162 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8812- )SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20590 |
AT160,ST162..RHD |
1 | ||
| 04443-20400 |
AT160,ST162..TWC |
1 | ||
| 04443-20650 |
ST162..SX |
1 | ||
| 04443-20590 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 04443-20400 |
AT160,ST162..(GT,ST)..TWC |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
AT160,ST162..GT,ST |
1 | ||
| 44606-12520 |
AT160,ST162 |
1 | ||
| 44606-20800 |
ST162..SX |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20860 |
ST162..SX |
1 | ||
| 44610-20770 |
AT160,ST162..RHD |
1 | ||
| 44610-20770 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AT160,ST162 |
1 | ||
| 44621-28120 |
AT160,ST162..GT,ST |
1 | ||
| 44621-14030 |
ST162..SX |
1 | ||
| 44626A - RETAINER, BOOSTER BODY SEAL | ||||
| 44626-60010 |
ST162..SX |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
ST162..SX |
1 | ||
| 44628-28120 |
AT160,ST162 |
1 | ||
| 44628-28120 |
AT160,ST162..GT,ST |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-28120 |
AT160,ST162 |
1 | ||
| 44635-28120 |
AT160,ST162..GT,ST |
1 | ||
| 44635-20800 |
ST162..SX |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
AT160..CBR;AT160,ST162..RHD |
1 | ||
| 44642-32010 |
AT160..CBR;AT160,ST162..RHD..(GT,ST) |
1 | ||
| 44642-20800 |
ST162..SX |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
ST162..SX |
1 | ||
| 44657D - CASE, REACTION DISC | ||||
| 44657-22630 |
ST162..SX |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT160,ST162 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

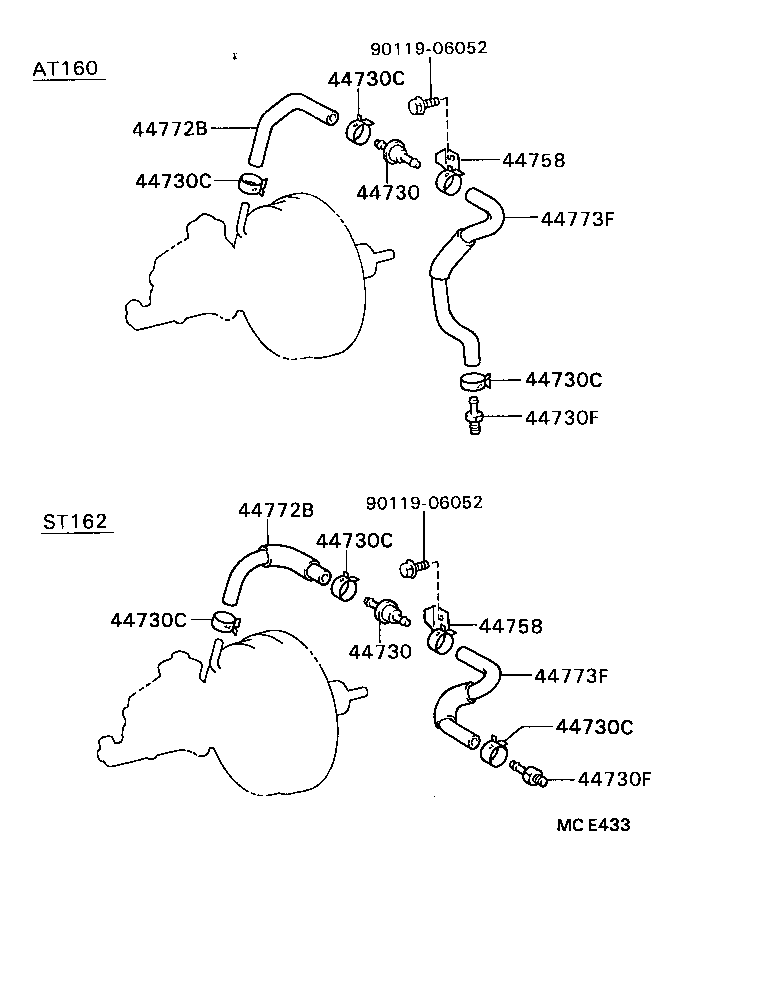

ILLUST NO. 2 OF 2(8708- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-24020 |
ST162..SX |
1 | ||
| 44730-10010 |
AT160,ST162 |
1 | ||
| 44730-10010 |
AT160,ST162..GT,ST |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-24020 |
ST162..SX |
1 | ||
| 44730-10010 |
AT160,ST162 |
1 | ||
| 44730-10010 |
AT160,ST162..GT,ST |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT160,ST162..RHD |
3 | ||
| 90467-16002 |
AT160,ST162..RHD..(GT,ST) |
3 | ||
| 90467-16002 |
ST162..SX |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT160,ST162..RHD |
3 | ||
| 90467-16002 |
AT160,ST162..RHD..(GT,ST) |
3 | ||
| 90467-16002 |
ST162..SX |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT160,ST162..RHD |
3 | ||
| 90467-16002 |
AT160,ST162..RHD..(GT,ST) |
3 | ||
| 90467-16002 |
ST162..SX |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT160,ST162..RHD |
3 | ||
| 90467-16002 |
AT160,ST162..RHD..(GT,ST) |
3 | ||
| 90467-16002 |
ST162..SX |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT160,ST162..RHD |
3 | ||
| 90467-16002 |
AT160,ST162..RHD..(GT,ST) |
3 | ||
| 90467-16002 |
ST162..SX |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT160,ST162..RHD |
3 | ||
| 90467-16002 |
AT160,ST162..RHD..(GT,ST) |
3 | ||
| 90467-16002 |
ST162..SX |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
ST162 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
ST162 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20141 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 44758-20141 |
AT160,ST162..RHD |
1 | ||
| 44758-20160 |
ST162..SX |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20141 |
AT160,ST162..RHD..(GT,ST) |
1 | ||
| 44758-20141 |
AT160,ST162..RHD |
1 | ||
| 44758-20160 |
ST162..SX |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20190 |
ST162..SX |
1 | ||
| 44772-20180 |
ST162..ARL |
1 | ||
| 44772-20180 |
ST162..ST |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20190 |
ST162..SX |
1 | ||
| 44772-20180 |
ST162..ARL |
1 | ||
| 44772-20180 |
ST162..ST |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20460 |
ST162..ST |
1 | ||
| 44773-20461 |
ST162..ST |
1 | ||
| 44773-20440 |
ST162..SX |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20460 |
ST162..ST |
1 | ||
| 44773-20461 |
ST162..ST |
1 | ||
| 44773-20440 |
ST162..SX |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
