ST162R-BLMVFQ (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )ARL

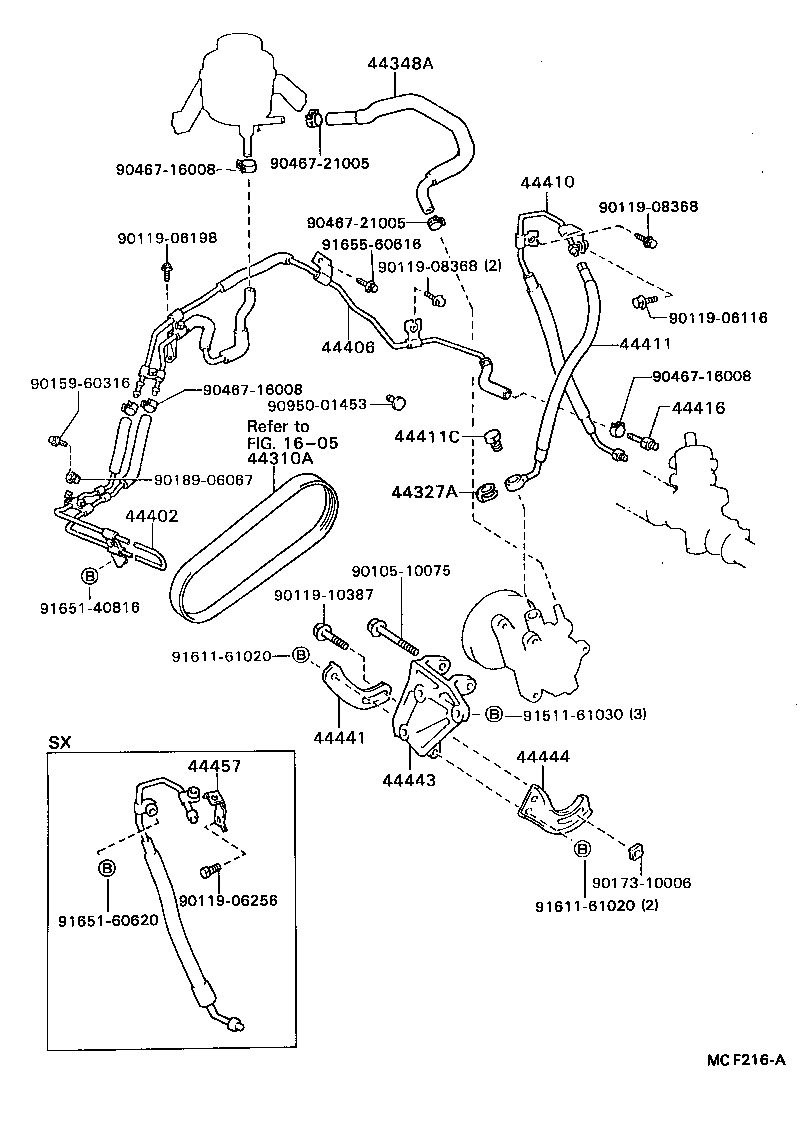

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
ST162 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-20100 |
ST162..SX |
1 | ||
| 44348-20120 |
ST162..ST |
1 | ||
| 44348-20260 |
ST162..ST |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-20170 |
ST162..ARL |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-20052 |
ST162..ARL |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-20340 |
ST162..SX |
1 | ||
| 44410-20320 |
ST162..ST |
1 | ||
| 44410-20320 |
ST162..ARL |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-20200 |
ST162..ARL |
1 | ||
| 44411-20200 |
ST162..SX |
1 | ||
| 44411-20181 |
ST162..ST |
1 | ||
| 44411-20201 |
ST162..ARL |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16008 |
ST162 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20110 |
AT160,ST162..RHD |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-32010 |
ST162 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20050 |
ST162 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-20030 |
ST162 |
1 | ||
| 44457 - BRACKET, TUBE SUPPORT, NO.1 | ||||
| 44457-20040 |
ST162..SX |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-06116 | ||||
| 90119-06198 | ||||
| 90119-06256 | ||||
| 90119-08368 | ||||
| 90119-10387 | ||||
| 90159-60316 | ||||
| 90173-10006 | ||||
| 90189-06067 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 90950-01453 | ||||
| 91511-61030 | ||||
| 91611-61020 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
| 91655-60616 | ||||
| Linked diagrams | ||||
| 1605 | ||||
