ST162R-BLMVFQ (1987)
Toyota Celica

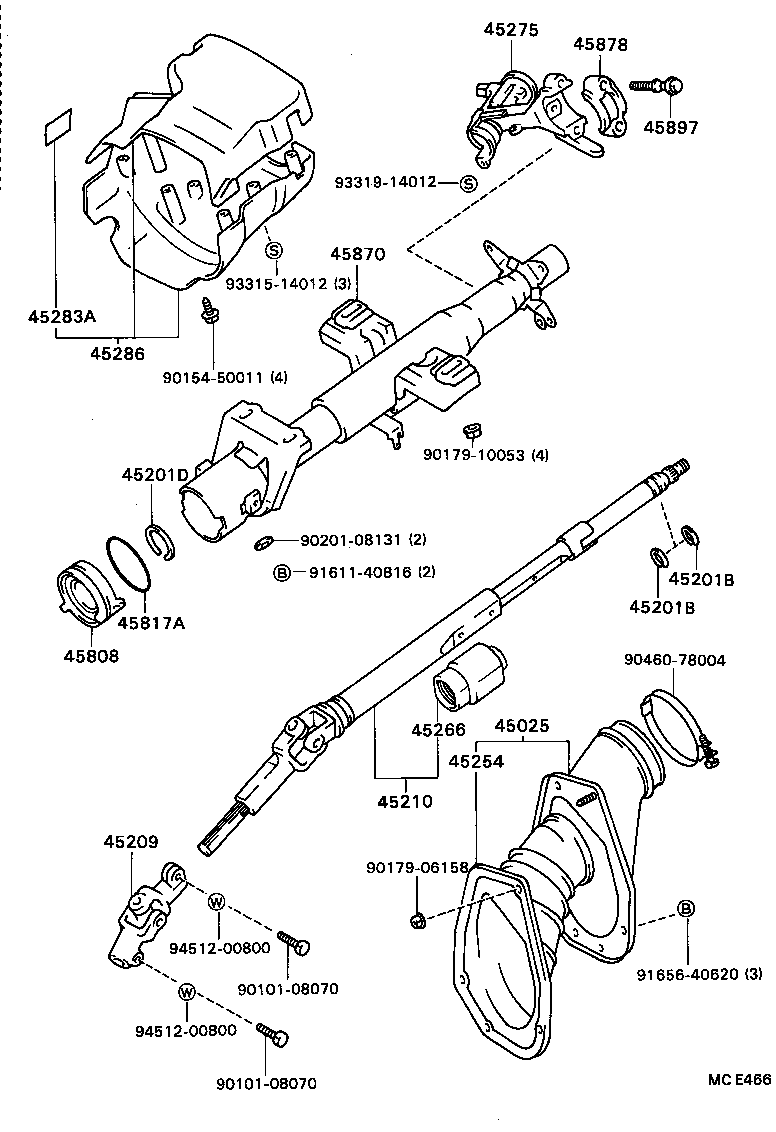

(8708- )GT,ST..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-20150 |
AT160,ST162..RHD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
ST162..ST T=1.20,W(TILT STEERING) |
1 | ||
| 90520-17196 |
AT160,ST162..ST T=1.35-1.45 |
2 | ||
| 90520-17042 |
AT160,ST162..ST T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
ST162..ST T=1.20,W(TILT STEERING) |
1 | ||
| 90520-17196 |
AT160,ST162..ST T=1.35-1.45 |
2 | ||
| 90520-17042 |
AT160,ST162..ST T=1.20 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AT160,ST162 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
AT160,ST162..TWC |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-14150 |
ST162..SX |
1 | ||
| 45210-20200 |
ST162..ST W(TILT STEERING) |
1 | ||
| 45210-20190 |
ST162..ST |
1 | ||
| 45210-14151 |
ST162..SX |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20100 |
AT160,ST162..RHD |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
AT160,ST162..TWC |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-20280 |
AT160,ST162..ST |
1 | ||
| 45280-20351 |
ST162..SX W(POWER WINDOW) |
1 | ||
| 45280-20290 |
ST162..ST W(TILT STEERING) |
1 | ||
| 45280-20352 |
ST162..SX W(POWER WINDOW) |
1 | ||
| 45280-20301 |
ST162..SX |
1 | ||
| 45280-20302 |
ST162..SX |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
AT160,ST162..RHD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2090105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 45287-2090101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 45287-2090104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090304 |
ST162..ST W(TILT STEERING),DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090504 |
ST162..SX DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090501 |
ST162..SX BLACK,TRIM2# |
1 | ||
| 45287-2090301 |
ST162..ST W(TILT STEERING),BLACK,TRIM2# |
1 | ||
| 45287-2090305 |
ST162..ST W(TILT STEERING),DARK BEIGE,TRIM4# |
1 | ||
| 45287-2090505 |
ST162..SX DARK BEIGE,TRIM4# |
1 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-20030 |
AT160,ST162 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 90301-54002 |
AT160,ST162 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-20160 |
ST162..ST |
1 | ||
| 45870-20180 |
ST162..ST W(TILT STEERING) |
1 | ||
| 45870-20161 |
ST162..ST |
1 | ||
| 45870-20190 |
ST162..GT,SX |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45878-32030 |
AT160,ST162..ST |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AT160,ST162..ST |
2 | ||
| 45897-12020 |
ST162..ST W(TILT STEERING) |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90154-50011 | ||||
| 90179-06158 | ||||
| 90179-10053 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-40816 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 94512-00800 | ||||

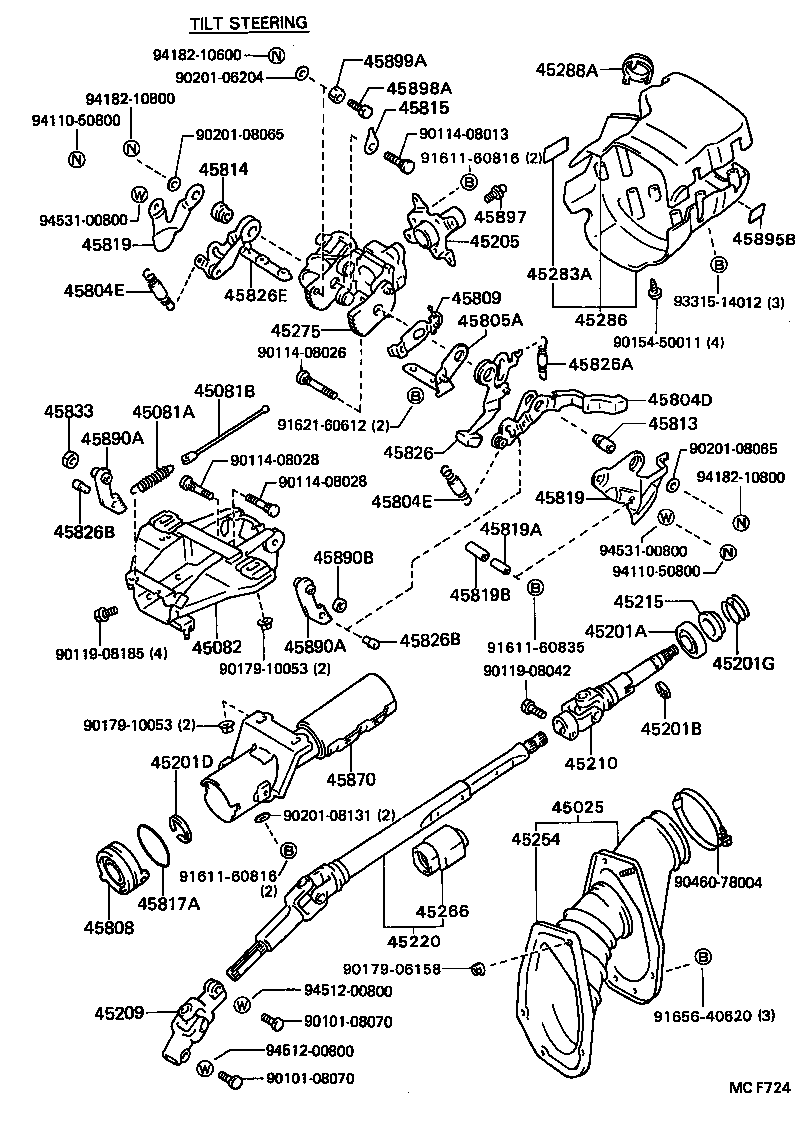

(8708- )ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-20150 |
AT160,ST162..RHD |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-32003 |
ST162..GT,SX |
2 | ||
| 90506-29010 |
ST162..ST |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02052 |
ST162..GT,SX L=122,L=134.5 |
2 | ||
| 90945-02087 |
ST162..ST L=139,L=151.5 |
2 | ||
| 90945-02090 |
ST162..ST L=141,L=153.5 |
2 | ||
| 90945-02086 |
ST162..GT,SX L=121,L=133.5 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-20050 |
ST162..ST |
1 | ||
| 45082-20060 |
ST162..GT,SX |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
ST162..ST W(TILT STEERING) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
ST162..ST T=1.20,W(TILT STEERING) |
1 | ||
| 90520-17196 |
AT160,ST162..ST T=1.35-1.45 |
2 | ||
| 90520-17042 |
AT160,ST162..ST T=1.20 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AT160,ST162 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
ST162..ST |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-20201 |
ST162..ST |
1 | ||
| 45205-20200 |
ST162..ST |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
AT160,ST162..TWC |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-14150 |
ST162..SX |
1 | ||
| 45210-20200 |
ST162..ST W(TILT STEERING) |
1 | ||
| 45210-20190 |
ST162..ST |
1 | ||
| 45210-14151 |
ST162..SX |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
ST162..ST |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-20030 |
ST162..ST |
1 | ||
| 45220-20060 |
ST162..SX |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20100 |
AT160,ST162..RHD |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
AT160,ST162..TWC |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-20280 |
AT160,ST162..ST |
1 | ||
| 45280-20351 |
ST162..SX W(POWER WINDOW) |
1 | ||
| 45280-20290 |
ST162..ST W(TILT STEERING) |
1 | ||
| 45280-20352 |
ST162..SX W(POWER WINDOW) |
1 | ||
| 45280-20301 |
ST162..SX |
1 | ||
| 45280-20302 |
ST162..SX |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
AT160,ST162..RHD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2090105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 45287-2090101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 45287-2090104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090304 |
ST162..ST W(TILT STEERING),DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090504 |
ST162..SX DEEP BLUE,TRIM8# |
1 | ||
| 45287-2090501 |
ST162..SX BLACK,TRIM2# |
1 | ||
| 45287-2090301 |
ST162..ST W(TILT STEERING),BLACK,TRIM2# |
1 | ||
| 45287-2090305 |
ST162..ST W(TILT STEERING),DARK BEIGE,TRIM4# |
1 | ||
| 45287-2090505 |
ST162..SX DARK BEIGE,TRIM4# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-30010 |
AT160,ST162..ST |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-20030 |
ST162..ST |
1 | ||
| 45804-20050 |
ST162..GT,SX |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13001 |
ST162..ST |
2 | ||
| 90507-13002 |
ST162..GT,SX |
2 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13001 |
ST162..ST |
2 | ||
| 90507-13002 |
ST162..GT,SX |
2 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-20010 |
AT160,ST162..GT,SX |
1 | ||
| 45805-20010 |
ST162..ST |
1 | ||
| 45805-20011 |
ST162..ST |
1 | ||
| 45805-20011 |
AT160,ST162..GT,SX |
1 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-20030 |
AT160,ST162 |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-20060 |
ST162..GT,SX |
1 | ||
| 45809-20050 |
ST162..ST |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20030 |
AT160,ST162..GT,SX OD=18.003-18.010 |
1 | ||
| 45813-20020 |
AT160,ST162..GT,SX OD=17.996-18.003 |
1 | ||
| 45813-20050 |
AT160,ST162..GT,SX OD=18.017-18.024 |
1 | ||
| 45813-20060 |
AT160,ST162..GT,SX OD=17.989-17.996 |
1 | ||
| 45813-20020 |
ST162..ST OD=17.996-18.003 |
1 | ||
| 45813-20040 |
AT160,ST162..GT,SX OD=18.010-18.017 |
1 | ||
| 45813-20030 |
ST162..ST OD=18.003-18.010 |
1 | ||
| 45813-20060 |
ST162..ST OD=17.989-17.996 |
1 | ||
| 45813-20050 |
ST162..ST OD=18.017-18.024 |
1 | ||
| 45813-20040 |
ST162..ST OD=18.010-18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20020 |
ST162..ST OD=18.003-18.010 |
1 | ||
| 45814-20020 |
AT160,ST162..GT,SX OD=18.003-18.010 |
1 | ||
| 45814-20030 |
AT160,ST162..GT,SX OD=18.010-18.017 |
1 | ||
| 45814-20010 |
ST162..ST OD=17.996-18.003 |
1 | ||
| 45814-20010 |
AT160,ST162..GT,SX OD=17.996-18.003 |
1 | ||
| 45814-20040 |
ST162..ST OD=18.017-18.024 |
1 | ||
| 45814-20050 |
AT160,ST162..GT,SX OD=17.989-17.996 |
1 | ||
| 45814-20030 |
ST162..ST OD=18.010-18.017 |
1 | ||
| 45814-20050 |
ST162..ST OD=17.989-17.996 |
1 | ||
| 45814-20040 |
AT160,ST162..GT,SX OD=18.017-18.024 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20020 |
AT160,ST162..GT,SX T=0.5 |
1 | ||
| 45815-20030 |
AT160,ST162..GT,SX T=0.8 |
1 | ||
| 45815-20020 |
ST162..ST T=0.5 |
1 | ||
| 45815-20010 |
AT160,ST162..GT,SX T=0.2 |
1 | ||
| 45815-20030 |
ST162..ST T=0.8 |
1 | ||
| 45815-20040 |
AT160,ST162..GT,SX T=1.4 |
1 | ||
| 45815-20050 |
AT160,ST162..GT,SX T=1.8 |
1 | ||
| 45815-20010 |
ST162..ST T=0.2 |
1 | ||
| 45815-20040 |
ST162..ST T=1.4 |
1 | ||
| 45815-20050 |
ST162..ST T=1.8 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 90301-54002 |
AT160,ST162 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-20020 |
AT160,ST162..GT,SX RH |
1 | ||
| 45819-20020 |
ST162..ST RH |
1 | ||
| 45819-20030 |
ST162..GT,SX LH |
1 | ||
| 45819-20010 |
ST162..ST LH |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-20020 |
AT160,ST162..GT,SX RH |
1 | ||
| 45819-20020 |
ST162..ST RH |
1 | ||
| 45819-20030 |
ST162..GT,SX LH |
1 | ||
| 45819-20010 |
ST162..ST LH |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08046 |
ST162..ST |
1 | ||
| 90387-08046 |
AT160,ST162..GT,SX |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-11007 |
AT160,ST162..GT,SX |
1 | ||
| 90540-11007 |
ST162..ST |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-20050 |
ST162..ST |
1 | ||
| 45826-20070 |
ST162..GT,SX |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-09005 |
ST162..GT,SX |
1 | ||
| 90507-11006 |
ST162..ST |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
AT160,ST162..GT,SX |
2 | ||
| 90241-06039 |
ST162..ST |
2 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
AT160,ST162..GT,SX |
2 | ||
| 90241-06039 |
ST162..ST |
2 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45804-20070 |
ST162..ST |
1 | ||
| 45804-20041 |
ST162..GT,SX |
1 | ||
| 45804-20040 |
ST162..GT,SX |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20020 |
ST162..ST |
1 | ||
| 45833-20020 |
AT160,ST162..GT,SX |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-20160 |
ST162..ST |
1 | ||
| 45870-20180 |
ST162..ST W(TILT STEERING) |
1 | ||
| 45870-20161 |
ST162..ST |
1 | ||
| 45870-20190 |
ST162..GT,SX |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20080 |
ST162..ST RH |
1 | ||
| 45890-20070 |
AT160,ST162..GT,SX LH |
1 | ||
| 45890-20080 |
AT160,ST162..GT,SX RH |
1 | ||
| 45890-20070 |
ST162..ST LH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20080 |
ST162..ST RH |
1 | ||
| 45890-20070 |
AT160,ST162..GT,SX LH |
1 | ||
| 45890-20080 |
AT160,ST162..GT,SX RH |
1 | ||
| 45890-20070 |
ST162..ST LH |
1 | ||
| 45890B - SPACER(FOR TILT STEERING PAWL) | ||||
| 90560-13008 |
AT160,ST162..GT,SX |
1 | ||
| 90560-13008 |
ST162..ST |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-20080 |
ST162..GT,SX |
1 | ||
| 45895-20070 |
AT160,ST162..ST |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AT160,ST162..ST |
2 | ||
| 45897-12020 |
ST162..ST W(TILT STEERING) |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-22010 |
AT160,ST162..GT,SX |
1 | ||
| 45898-22010 |
ST162..ST |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
AT160,ST162..GT,SX |
1 | ||
| 45899-22020 |
ST162..ST |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90154-50011 | ||||
| 90179-06158 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-60816 | ||||
| 91611-60835 | ||||
| 91621-60612 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
