ST162R-BLMVFQ (1987)
Toyota Celica

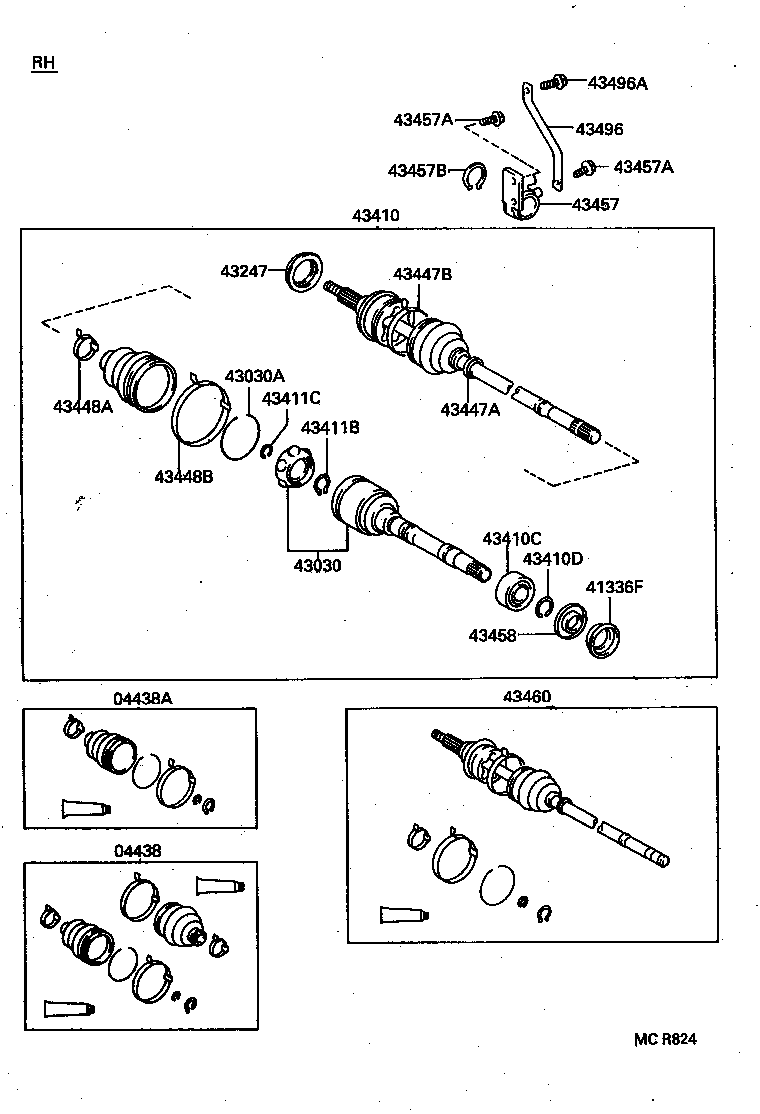

(8708- )ST162..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12031 |
ST162..ST |
2 | ||
| 04438-32050 |
ST162..GT,SX |
2 | ||
| 04438-20010 |
ST162..GT,SX |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-32040 |
ST162..GT,SX |
2 | ||
| 04438-12050 |
ST162..5F..ST |
2 | ||
| 04438-12050 |
ST162..ST |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-32020 |
ST162 LH |
1 | ||
| 41336-20011 |
ST162 RH |
1 | ||
| 43049 - SHAFT SUB-ASSY, FRONT DRIVE FLANGE | ||||
| 43049-20030 |
ST162..5F..ST |
1 | ||
| 43049-20050 |
ST162..ST |
1 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-32011 |
AT160,ST162 |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-39016 |
ST162..ST |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20180 |
ST162..ST |
1 | ||
| 43410-20071 |
ST162..5F..(GT,SX) |
1 | ||
| 43410-20050 |
ST162..5F..ST |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90369-36001 |
ST162 |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-33008 |
ST162 |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
ST162..ST |
6 | ||
| 90114-08006 |
AT160,ST162..(GT,ST)..(ARL,GEN) |
6 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
ST162..ST |
6 | ||
| 90179-08053 |
AT160,ST162..(GT,ST)..(ARL,GEN) |
6 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AT160,ST162..(GT,ST)..(ARL,GEN) |
1 | ||
| 90520-25034 |
ST162..GT,SX |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 42345-14010 |
ST162..ST |
1 | ||
| 90949-01108 |
ST162..GT,SX |
1 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 90949-01107 |
ST162..GT,SX |
1 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01108 |
ST162..GT,SX |
1 | ||
| 42345-14010 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42346-22010 |
ST162..GT,SX |
1 | ||
| 42345-14020 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 42345-14020 |
ST162..ST |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-20022 |
ST162 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10202 |
ST162 *10-1.25PX22-19.5 |
2 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10202 |
ST162 *10-1.25PX22-19.5 |
2 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
ST162 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-20011 |
ST162 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-29065 |
ST162..5F..ST |
1 | ||
| 43470-29295 |
ST162..5F..(GT,SX) |
1 | ||
| 43470-29055 |
ST162..ST |
1 | ||
| 43473 - DAMPER, FRONT DRIVE SHAFT W/BOLT | ||||
| 43473-20020 |
ST162..ST |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-20030 |
ST162..ST |
1 | ||
| 43496 - STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1 | ||||
| 43496-32010 |
ST162 |
1 | ||
| 43496A - BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) | ||||
| 90105-10202 |
ST162 |
2 | ||
| Common parts | ||||
| 90179-08053 | ||||

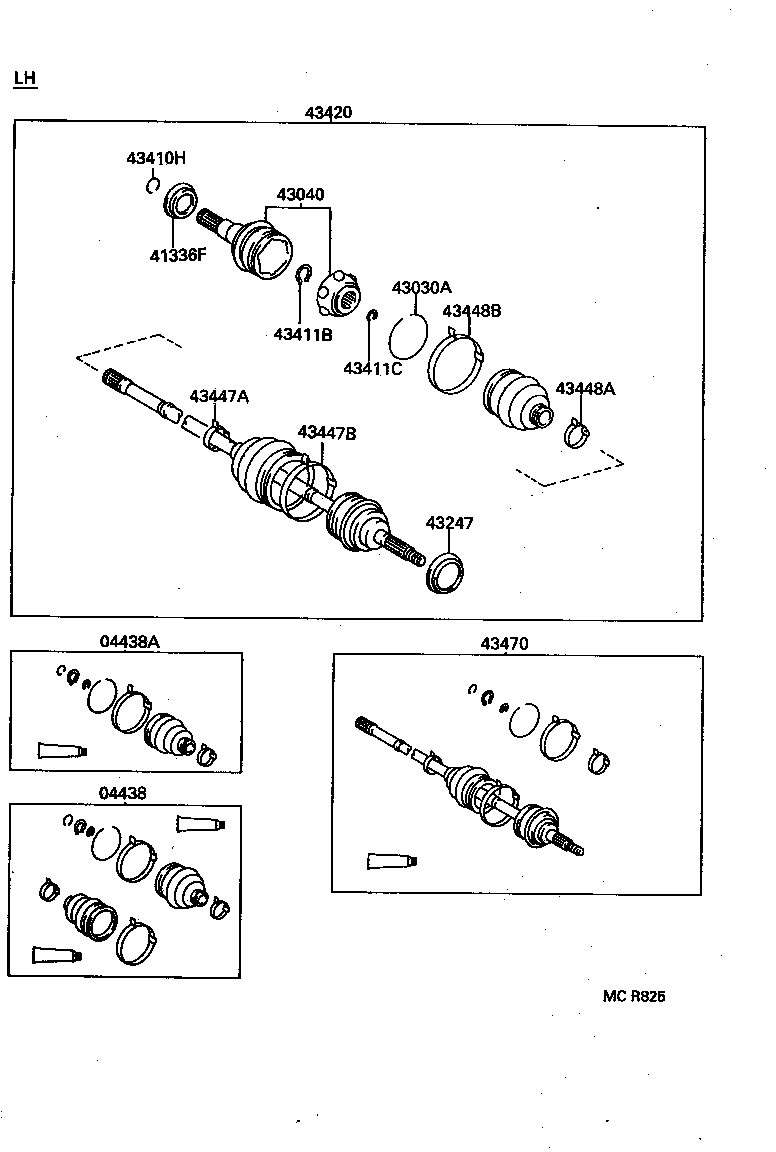

(8708- )ST162..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12031 |
ST162..ST |
2 | ||
| 04438-32050 |
ST162..GT,SX |
2 | ||
| 04438-20010 |
ST162..GT,SX |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-32040 |
ST162..GT,SX |
2 | ||
| 04438-12050 |
ST162..5F..ST |
2 | ||
| 04438-12050 |
ST162..ST |
2 | ||
| 41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-32010 |
ST162..ST |
1 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-32020 |
ST162 LH |
1 | ||
| 41336-20011 |
ST162 RH |
1 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-32011 |
AT160,ST162 |
2 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-39016 |
ST162..ST |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
ST162..ST |
6 | ||
| 90114-08006 |
AT160,ST162..(GT,ST)..(ARL,GEN) |
6 | ||
| 43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90521-27005 |
ST162 |
1 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
ST162..ST |
6 | ||
| 90179-08053 |
AT160,ST162..(GT,ST)..(ARL,GEN) |
6 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AT160,ST162..(GT,ST)..(ARL,GEN) |
1 | ||
| 90520-25034 |
ST162..GT,SX |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-20030 |
ST162..5F..ST |
1 | ||
| 43420-20051 |
ST162..5F..(GT,SX) |
1 | ||
| 43420-20020 |
ST162..ST |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 42345-14010 |
ST162..ST |
1 | ||
| 90949-01108 |
ST162..GT,SX |
1 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 90949-01107 |
ST162..GT,SX |
1 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01108 |
ST162..GT,SX |
1 | ||
| 42345-14010 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42346-22010 |
ST162..GT,SX |
1 | ||
| 42345-14020 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 42345-14020 |
ST162..ST |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29065 |
ST162..5F..ST |
1 | ||
| 43470-29295 |
ST162..5F..(GT,SX) |
1 | ||
| 43470-29055 |
ST162..ST |
1 | ||
(8708- )ST162..GT,SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12031 |
ST162..ST |
2 | ||
| 04438-32050 |
ST162..GT,SX |
2 | ||
| 04438-20010 |
ST162..GT,SX |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-32040 |
ST162..GT,SX |
2 | ||
| 04438-12050 |
ST162..5F..ST |
2 | ||
| 04438-12050 |
ST162..ST |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-32020 |
ST162 LH |
1 | ||
| 41336-20011 |
ST162 RH |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-32010 |
ST162..5F..(GT,SX) |
1 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-79001 |
ST162..GT,SX |
1 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-32011 |
AT160,ST162 |
2 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20071 |
ST162..5F..(GT,SX) |
1 | ||
| 43410-20180 |
ST162..ST |
1 | ||
| 43410-20050 |
ST162..5F..ST |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90369-36001 |
ST162 |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-33008 |
ST162 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AT160,ST162..(GT,ST)..(ARL,GEN) |
1 | ||
| 90520-25034 |
ST162..GT,SX |
1 | ||
| 43411C - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER) | ||||
| 90520-25033 |
ST162..GT,SX |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 42345-14010 |
ST162..ST |
1 | ||
| 90949-01108 |
ST162..GT,SX |
1 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 90949-01107 |
ST162..GT,SX |
1 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01108 |
ST162..GT,SX |
1 | ||
| 42345-14010 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42346-22010 |
ST162..GT,SX |
1 | ||
| 42345-14020 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 42345-14020 |
ST162..ST |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-20022 |
ST162 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10202 |
ST162 *10-1.25PX22-19.5 |
2 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10202 |
ST162 *10-1.25PX22-19.5 |
2 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
ST162 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-20011 |
ST162 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-29065 |
ST162..5F..ST |
1 | ||
| 43470-29295 |
ST162..5F..(GT,SX) |
1 | ||
| 43470-29055 |
ST162..ST |
1 | ||
| 43496 - STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1 | ||||
| 43496-32010 |
ST162 |
1 | ||
| 43496A - BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) | ||||
| 90105-10202 |
ST162 |
2 | ||
(8708- )ST162..GT,SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12031 |
ST162..ST |
2 | ||
| 04438-32050 |
ST162..GT,SX |
2 | ||
| 04438-20010 |
ST162..GT,SX |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-32040 |
ST162..GT,SX |
2 | ||
| 04438-12050 |
ST162..5F..ST |
2 | ||
| 04438-12050 |
ST162..ST |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-32020 |
ST162 LH |
1 | ||
| 41336-20011 |
ST162 RH |
1 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-79001 |
ST162..GT,SX |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-32010 |
ST162..GT,SX |
1 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-32011 |
AT160,ST162 |
2 | ||
| 43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90521-27005 |
ST162 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
AT160,ST162..(GT,ST)..(ARL,GEN) |
1 | ||
| 90520-25034 |
ST162..GT,SX |
1 | ||
| 43411C - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER) | ||||
| 90520-25033 |
ST162..GT,SX |
2 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-20030 |
ST162..5F..ST |
1 | ||
| 43420-20051 |
ST162..5F..(GT,SX) |
1 | ||
| 43420-20020 |
ST162..ST |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 42345-14010 |
ST162..ST |
1 | ||
| 90949-01108 |
ST162..GT,SX |
1 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 90949-01107 |
ST162..GT,SX |
1 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01108 |
ST162..GT,SX |
1 | ||
| 42345-14010 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42346-22010 |
ST162..GT,SX |
1 | ||
| 42345-14020 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 42345-14020 |
ST162..ST |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29065 |
ST162..5F..ST |
1 | ||
| 43470-29295 |
ST162..5F..(GT,SX) |
1 | ||
| 43470-29055 |
ST162..ST |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
