ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )5F

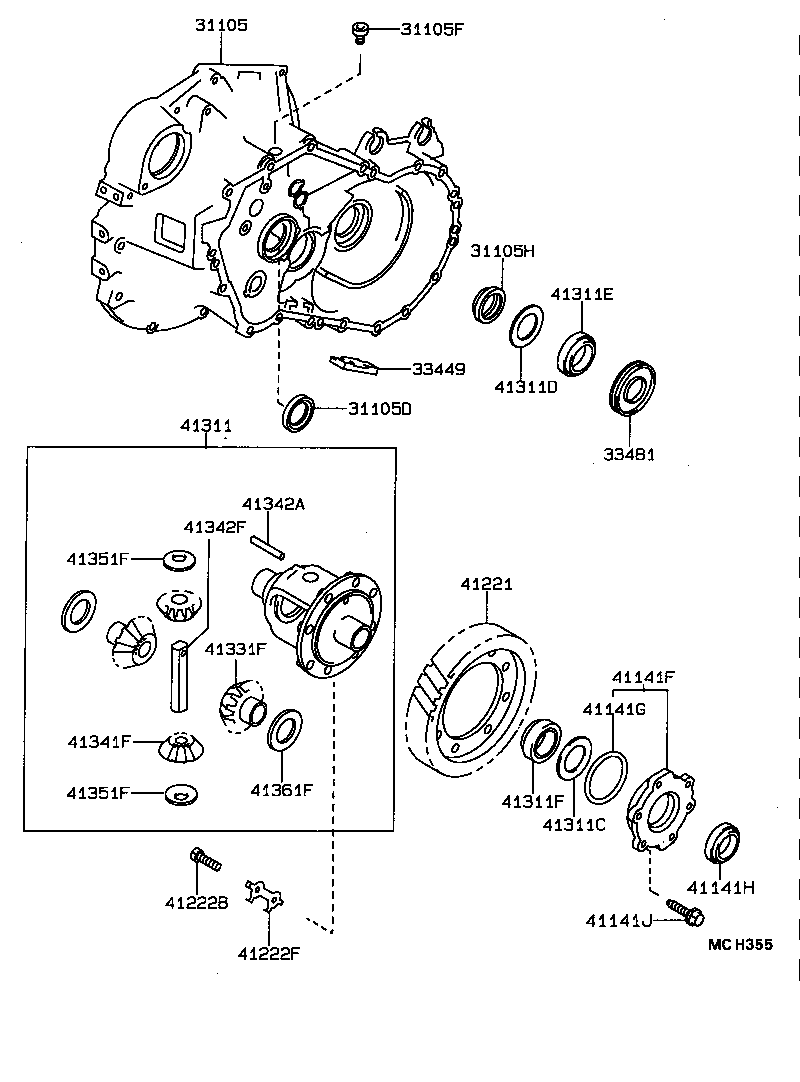

Click highlighted areas on diagram

S52,53

diagram 31105 31105D 31105F 31105H 33449 33481 41141F 41141G 41141H 41141J 41221 41222B 41222F 41311 41311C 41311D 41311E 41311F 41331F 41341F 41342A 41342F 41351F 41351F 41361F
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-32014

ST162..5F..(GT,SX)

 1
31105-32020

ST162..5F..ST

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30002

ST162..5F

 1
31105F - PLUG(FOR TRANSAXLE CASE)
90341-10065

ST162..5F

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35014

ST162..5F

 1
33449 - MAGNET, TRANSMISSION
33449-32010

ST162..5F

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-32010

ST162..5F

N=25,NO MARK

 1
41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING
41101-32010

ST162..5F

 1
41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90301-63004

ST162..5F

 1
41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
90311-35014

ST162..5F

 1
41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90105-08061

ST162..5F

*8-1.25PX26.5-23.5

 6
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-32030

ST162..ST

 1
41221-20220

ST162..5F..(GT,SX)

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003

ST162

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-32010

ST162

 4
41311 - CASE, FRONT DIFFERENTIAL
41301-32010

ST162..5F

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-45001

ST162..5F

T=1.90,MARK 01

 1
90564-45002

ST162..5F

T=1.95,MARK 02

 1
90564-45006

ST162..5F

T=2.15,MARK 06

 1
90564-45007

ST162..5F

T=2.20,MARK 07

 1
90564-45003

ST162..5F

T=2.00,MARK 03

 1
90564-45004

ST162..5F

T=2.05,MARK 04

 1
90564-45005

ST162..5F

T=2.10,MARK 05

 1
90564-45010

ST162..5F

T=2.35,MARK 10

 1
90564-45008

ST162..5F

T=2.25,MARK 08

 1
90564-45009

ST162..5F

T=2.30,MARK 09

 1
90564-45011

ST162

T=2.40,MARK 11

 1
90564-45017

ST162..5F

T=2.70,MARK 17

 1
90564-45016

ST162..5F

T=2.65,MARK 16

 1
90564-45014

ST162..5F

T=2.55,MARK 14

 1
90564-45013

ST162..5F

T=2.50,MARK 13

 1
90564-45015

ST162..5F

T=2.60,MARK 15

 1
90564-45018

ST162..5F

T=2.75,MARK 18

 1
90564-45012

ST162..5F

T=2.45,MARK 12

 1
90564-45019

ST162..5F

T=2.80,MARK 19

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45011

ST162

T=2.40,MARK 11

 1
90564-45011

ST162..5F

T=2.40,MARK 11

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40016

ST162

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-40023

ST162

 1
90366-40023

ST162..5F

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

ST162

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

ST162

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AT160,ST162

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-20050

ST162

 1
41342-32010

ST162

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ST162

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ST162

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

AT160,ST162

T=1.20,MARK 04

 2
41361-22020

AT160,ST162

T=1.00,MARK 02

 2
41361-22140

AT160,ST162

T=0.95,MARK 14

 2
41361-22150

AT160,ST162

T=1.05,MARK 15

 2
41361-22030

AT160,ST162

T=1.10,MARK 03

 2
41361-22160

AT160,ST162

T=1.15,MARK 16

 2
