ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

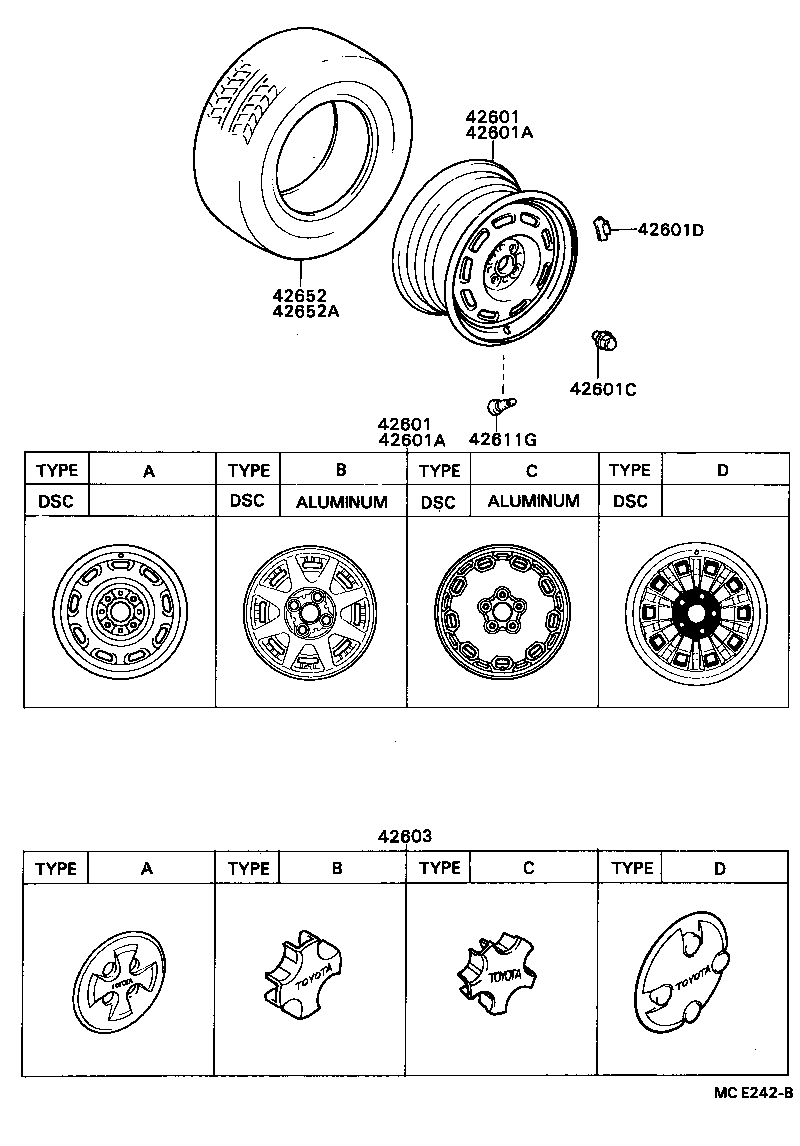

Click highlighted areas on diagram

diagram 42601 42601 42601A 42601A 42601C 42601D 42603 42611G 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-20350

ST162..ST

13X5.5JJ,ALUMINUM,5.5JJ-13,TYPE B,ALUMINUM WHEEL

 4
42611-20470

ST162..GT,SX

14X6JJ,6-JJX14,TYPE C,ALUMINUM WHEEL

 4
42611-2043003

AT160,ST162..(GT,ST)..(ARL,GEN)..TWC

13X5.5J,5.5-JX13,TYPE A,SILVER,SILVER M,040 ,20C ,21C ,4H5 ,4H6 ,8D7 ,8D8 ,920 ,168 ,202 ,3E5 ,3H4 ,8E3

 4
42611-20590

ST162..SX

14X6JJ,WHITE,14X6JJ,TYPE C,WHITE

 4
42601 - WHEEL, DISC
42611-20350

ST162..ST

13X5.5JJ,ALUMINUM,5.5JJ-13,TYPE B,ALUMINUM WHEEL

 4
42611-20470

ST162..GT,SX

14X6JJ,6-JJX14,TYPE C,ALUMINUM WHEEL

 4
42611-2043003

AT160,ST162..(GT,ST)..(ARL,GEN)..TWC

13X5.5J,5.5-JX13,TYPE A,SILVER,SILVER M,040 ,20C ,21C ,4H5 ,4H6 ,8D7 ,8D8 ,920 ,168 ,202 ,3E5 ,3H4 ,8E3

 4
42611-20590

ST162..SX

14X6JJ,WHITE,14X6JJ,TYPE C,WHITE

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-20470

ST162..GT,SX

14X6JJ,6-JJX14,TYPE C,ALUMINUM WHEEL

 1
42611-20350

ST162..ST

13X5.5JJ,ALUMINUM,5.5JJ-13,TYPE B,ALUMINUM WHEEL

 1
42611-20590

ST162..SX

14X6JJ,WHITE,14X6JJ,TPE C,WHITE

 1
42611-2043003

AT160,ST162..(GT,ST)..(ARL,GEN)..TWC

13X5.5J,5.5-JX13,TYPE A,SILVER,SILVER M,040 ,20C ,21C ,4H5 ,4H6 ,8D7 ,8D8 ,920 ,168 ,202 ,3E5 ,3H4 ,8E3

 1
42601A - WHEEL, DISC (FOR SPARE)
42611-20470

ST162..GT,SX

14X6JJ,6-JJX14,TYPE C,ALUMINUM WHEEL

 1
42611-20350

ST162..ST

13X5.5JJ,ALUMINUM,5.5JJ-13,TYPE B,ALUMINUM WHEEL

 1
42611-20590

ST162..SX

14X6JJ,WHITE,14X6JJ,TPE C,WHITE

 1
42611-2043003

AT160,ST162..(GT,ST)..(ARL,GEN)..TWC

13X5.5J,5.5-JX13,TYPE A,SILVER,SILVER M,040 ,20C ,21C ,4H5 ,4H6 ,8D7 ,8D8 ,920 ,168 ,202 ,3E5 ,3H4 ,8E3

 1
42601C - NUT, HUB (FOR AXLE)
90942-01021

ST162..ST

 16
90942-01058

ST162..GT,SX

 20
90942-01060

ST162..ST

W(ALUMINUM WHEEL)

 16
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03022

AT160,ST162..GT,ST

40G,T=9.5

 1
90942-03020

AT160,ST162..GT,ST

30G,T=10

 1
90942-03031

AT160,ST162..GT,ST

80G,T=9.5

 1
90942-03017

AT160,ST162..GT,ST

20G,T=8

 1
90942-03108

AT160,ST162..GT,ST

65G

 1
90942-03029

AT160,ST162..GT,ST

70G,T=9.5

 1
90942-03101

AT160,ST162..GT,ST

45G

 1
90942-03025

AT160,ST162..GT,ST

50G,T=9.5

 1
90942-03041

AT160,ST162..GT,ST

10G,T=7.5

 1
90942-03102

AT160,ST162..GT,ST

55G

 1
90942-03099

AT160,ST162..GT,ST

25G

 1
90942-03147

ST162

15G

 1
90942-03100

AT160,ST162..GT,ST

35G

 1
90942-03027

AT160,ST162..GT,ST

60G,T=9.5

 1
90942-03149

ST162

25G

 1
90942-03150

ST162

30G

 1
90942-03098

AT160,ST162..GT,ST

15G

 1
90942-03148

ST162

20G

 1
90942-03156

ST162

60G

 1
90942-03152

ST162

40G

 1
90942-03151

ST162

35G

 1
90942-03153

ST162

45G

 1
90942-03109

AT160,ST162..GT,ST

75G

 1
90942-03157

ST162

65G

 1
90942-03146

ST162

10G

 1
90942-03154

ST162

50G

 1
90942-03155

ST162

55G

 1
90942-03160

ST162

80G

 1
90942-03158

ST162

70G

 1
90942-03159

ST162

75G

 1
90942-03161

AT160,ST162..GT,ST

5G

 1
90942-03167

ST162

5G

 1
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-20300

ST162..SX

TYPE C

 4
42603-20140

ST162..ST

W(ALUMINUM WHEEL)

 4
42603-20210

ST162..GT,SX

W(ALUMINUM WHEEL)

 4
42603-20220

ST162..ST

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

AT160,ST162

 5
42652 - TIRE
42652-14180

AT160,ST162..(GT,ST)..(ARL,GEN)..TWC

185/70R13 85H

 4
42652-20180

ST162..SX

195/60VR14

 5
42652-20370

AT160,ST162..(GT,ST)..(ARL,GEN)..TWC

185/70R13 85H

 4
42652-20180

ST162..SX

195/60VR14

 4
42652A - TIRE (FOR SPARE)
42652-20370

AT160,ST162..(GT,ST)..(ARL,GEN)..TWC

185/70R13 85H

 1
42652-14180

AT160,ST162..(GT,ST)..(ARL,GEN)..TWC

185/70R13 85H

 1
42652-20180

ST162..SX

195/60VR14

 1
