ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )5F

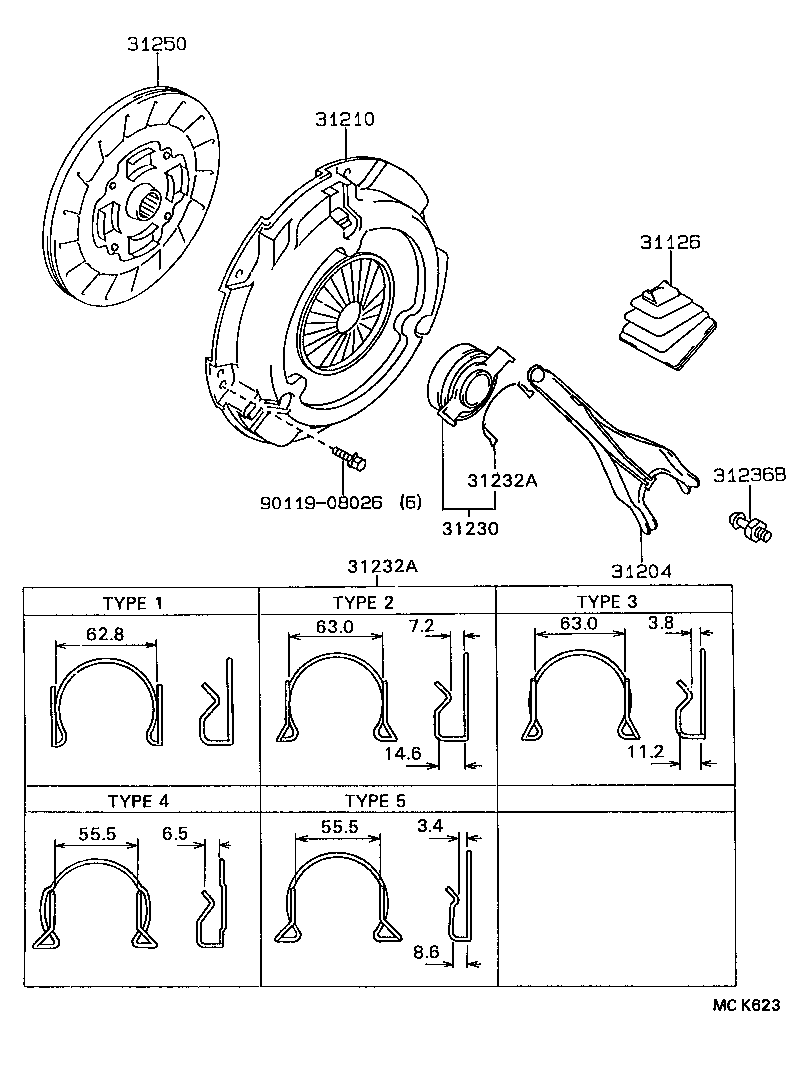

Click highlighted areas on diagram

C52,S52,53

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-32010

ST162..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-32010

ST162..5F

 1
31210 - COVER ASSY, CLUTCH
31210-32070

ST162..5F..(GT,SX)

 1
31210-32050

ST162..5F..ST

 1
31210-32071

ST162..5F..(GT,SX)

 1
31210-32072

ST162..5F..(GT,SX)

 1
31210-32051

ST162..5F..ST

 1
31210-32073

ST162..5F..(GT,SX)

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-32020

ST162..5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-32020

ST162..5F..ARL

TYPE 2

 1
31232-32010

ST162..5F

TYPE 1

 1
31232-32020

ST162..5F

TYPE 2

 1
31232-32010

ST162..5F..ARL

TYPE 1

 1
31232-32030

ST162..5F..ARL

TYPE 3

 1
31232-32030

ST162..5F

TYPE 3

 1
31232A - CLIP, RELEASE BEARING HUB
31232-32020

ST162..5F..ARL

TYPE 2

 1
31232-32010

ST162..5F

TYPE 1

 1
31232-32020

ST162..5F

TYPE 2

 1
31232-32010

ST162..5F..ARL

TYPE 1

 1
31232-32030

ST162..5F..ARL

TYPE 3

 1
31232-32030

ST162..5F

TYPE 3

 1
31236B - SUPPORT, RELEASE FORK
31236-30030

ST162..5F

 1
31250 - DISC ASSY, CLUTCH
31250-32041

ST162..5F

 1
Common parts
90119-08026
