ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8908)3SGELC

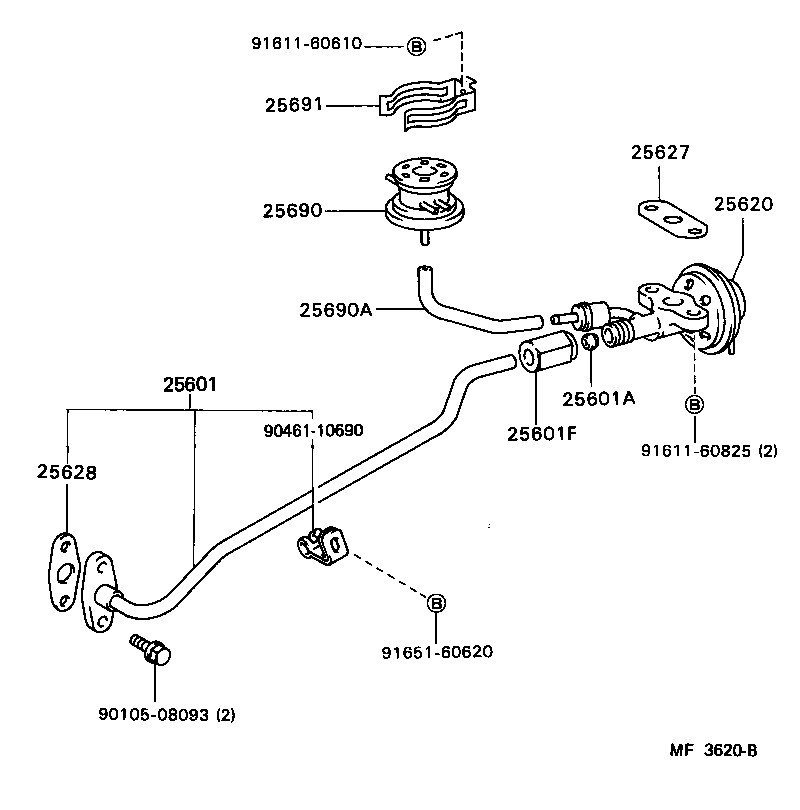

Click highlighted areas on diagram

diagram 25601 25601A 25601F 25620 25627 25628 25690 25690A 25691 9010508093 9046110690 9161160610 9161160825 9165160620
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-74040

3SGELC..ST162

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

3SGELC..ST162

 1
25601F - UNION(FOR EGR PIPE, NO.1)
90402-20009

3SGELC..ST162

 1
25620 - VALVE ASSY, EGR
25620-74160

3SGELC..ST162

 1
25627 - GASKET, EGR VALVE
25627-74040

3SGELC..ST162

 1
25628 - GASKET, EGR INLET
25634-74030

3SGELC..ST162

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-74070

3SGELC..ST162..5F

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-74010

3SGELC..ST162

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-74030

3SGELC..ST162

 1
Common parts
90105-08093
90461-10690
91611-60610
91611-60825
91651-60620
