ST162R-BLMVFQ (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )3SG#

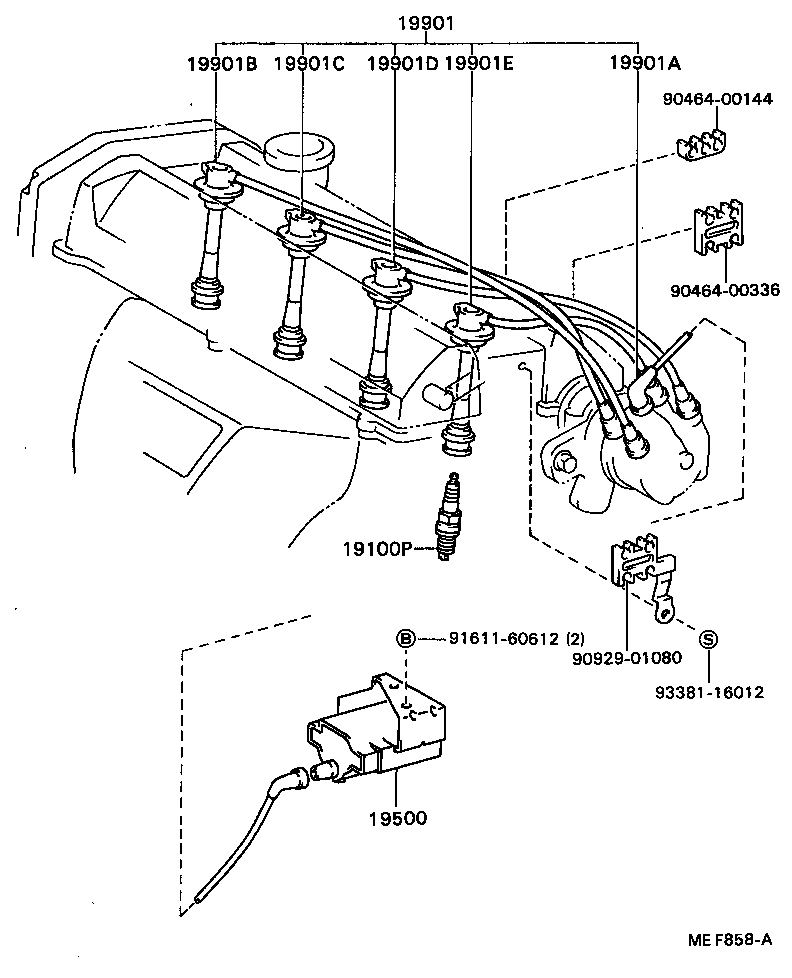

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01121 |
3SGELC..ST162 PQ16R |
4 | ||
| 90919-01131 |
3SGEL..ST162 Q20R-U11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02170 |
3SG#..ST162 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21370 |
3SGEL..ST162 |
1 | ||
| 90919-21372 |
3SGELC..ST162 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13247 |
3SG#..ST162 |
1 | ||
| 90919-13342 |
3SG#..ST162 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12546 |
3SGEL..ST162 |
1 | ||
| 90919-15010 |
3SGELC..ST162 |
1 | ||
| 90919-12994 |
3SGEL..ST162 |
1 | ||
| 90919-12608 |
3SGELC..ST162 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15011 |
3SGELC..ST162 |
1 | ||
| 90919-12547 |
3SGEL..ST162 |
1 | ||
| 90919-12995 |
3SGEL..ST162 |
1 | ||
| 90919-12609 |
3SGELC..ST162 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12548 |
3SGEL..ST162 |
1 | ||
| 90919-12610 |
3SGELC..ST162 |
1 | ||
| 90919-12996 |
3SGEL..ST162 |
1 | ||
| 90919-15012 |
3SGELC..ST162 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12611 |
3SGELC..ST162 |
1 | ||
| 90919-15013 |
3SGELC..ST162 |
1 | ||
| 90919-12997 |
3SGEL..ST162 |
1 | ||
| 90919-12549 |
3SGEL..ST162 |
1 | ||
| Common parts | ||||
| 90464-00144 | ||||
| 90464-00336 | ||||
| 90929-01080 | ||||
| 91611-60612 | ||||
| 93381-16012 | ||||
