ST162R-BLMVFQ (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

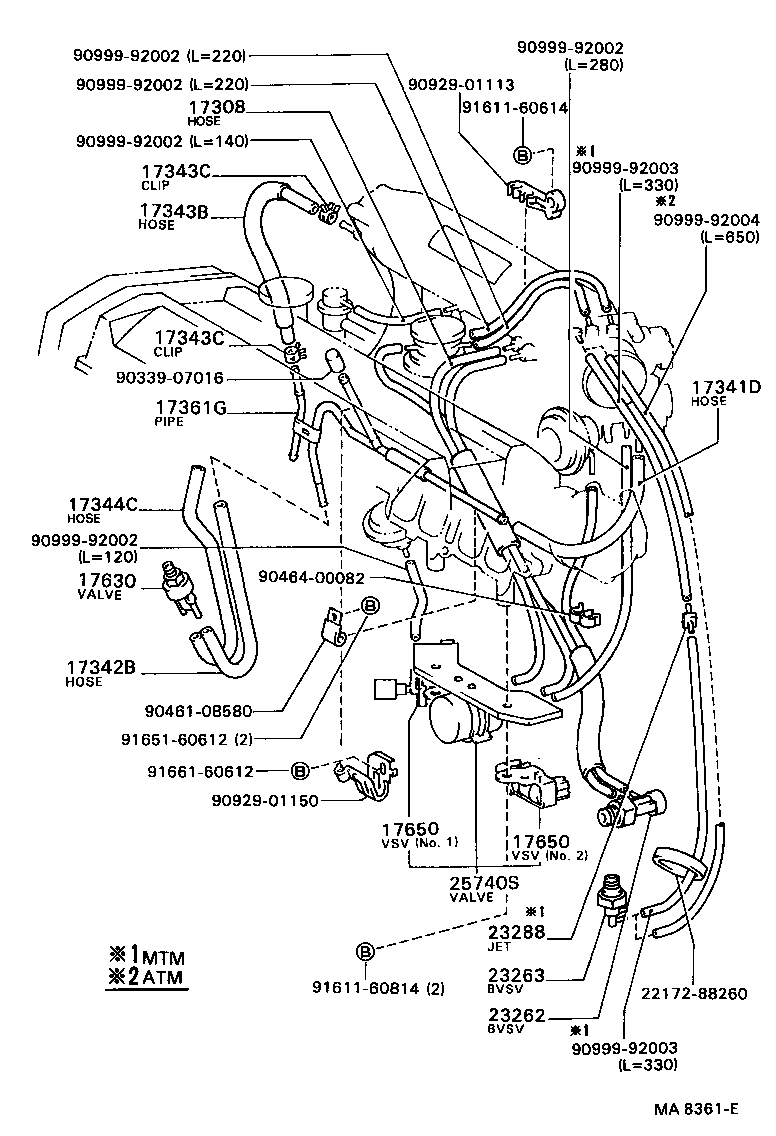

ILLUST NO. 2 OF 2(8708- )3SGELC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-88360 |
3SGELC..ST162 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-88361 |
3SG#..ST162 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-88360 |
3SG#..ST162 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-88361 |
3SG#..ST162 |
1 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3SG#..ST162 |
2 | ||
| 96132-30400 |
3SGEL..ST162 |
2 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3SG#..ST162 |
2 | ||
| 96132-30400 |
3SGEL..ST162 |
2 | ||
| 17344C - HOSE, NO.4(FOR IDLE-UP) | ||||
| 17344-88360 |
3SG#..ST162 |
1 | ||
| 17361G - TUBE, AIR(FOR IDLE-UP) | ||||
| 17361-88361 |
3SG#..ST162 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
3SFE,3SG#..ST162 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-88365 |
3SG#..ST162 NO.2 |
1 | ||
| 89570-88360 |
3SG#..ST162 NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-88365 |
3SG#..ST162 NO.2 |
1 | ||
| 89570-88360 |
3SG#..ST162 NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05073 |
3SFE,3SGELC..ST162 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05068 |
3SFE,3SGELC..ST162 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04032 |
3SGEL..ST162;3SFE,3SGELC..ST162..5F |
1 | ||
| 25740S - VALVE ASSY, AIR CONTROL(FOR IDLE SPEED CONTROL) | ||||
| 25740-88360 |
3SG#..ST162 |
1 | ||
| Common parts | ||||
| 22172-88260 | ||||
| 90339-07016 | ||||
| 90461-08580 | ||||
| 90464-00082 | ||||
| 90929-01113 | ||||
| 90929-01150 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91651-60612 | ||||
| 91661-60612 | ||||
ILLUST NO. 1 OF 2(8708- )3SFE,3SG#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

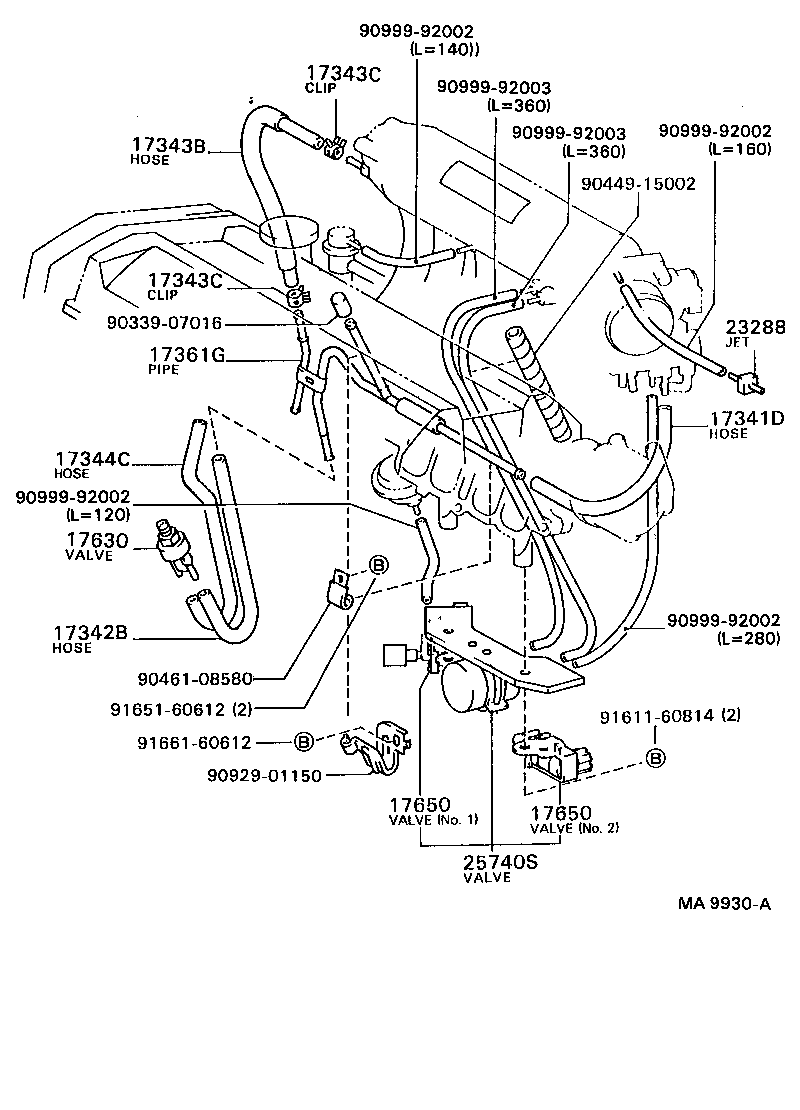

ILLUST NO. 2 OF 2(8708- )3SGEL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-88361 |
3SG#..ST162 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-88360 |
3SG#..ST162 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-88361 |
3SG#..ST162 |
1 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3SG#..ST162 |
2 | ||
| 96132-30400 |
3SGEL..ST162 |
2 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3SG#..ST162 |
2 | ||
| 96132-30400 |
3SGEL..ST162 |
2 | ||
| 17344C - HOSE, NO.4(FOR IDLE-UP) | ||||
| 17344-88360 |
3SG#..ST162 |
1 | ||
| 17361G - TUBE, AIR(FOR IDLE-UP) | ||||
| 17361-88361 |
3SG#..ST162 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
3SFE,3SG#..ST162 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-88365 |
3SG#..ST162 NO.2 |
1 | ||
| 89570-88360 |
3SG#..ST162 NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-88365 |
3SG#..ST162 NO.2 |
1 | ||
| 89570-88360 |
3SG#..ST162 NO.1 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04032 |
3SGEL..ST162;3SFE,3SGELC..ST162..5F |
1 | ||
| 25740S - VALVE ASSY, AIR CONTROL(FOR IDLE SPEED CONTROL) | ||||
| 25740-88360 |
3SG#..ST162 |
1 | ||
| Common parts | ||||
| 90339-07016 | ||||
| 90449-15002 | ||||
| 90461-08580 | ||||
| 90929-01150 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-60814 | ||||
| 91651-60612 | ||||
| 91661-60612 | ||||
