ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )3SG#

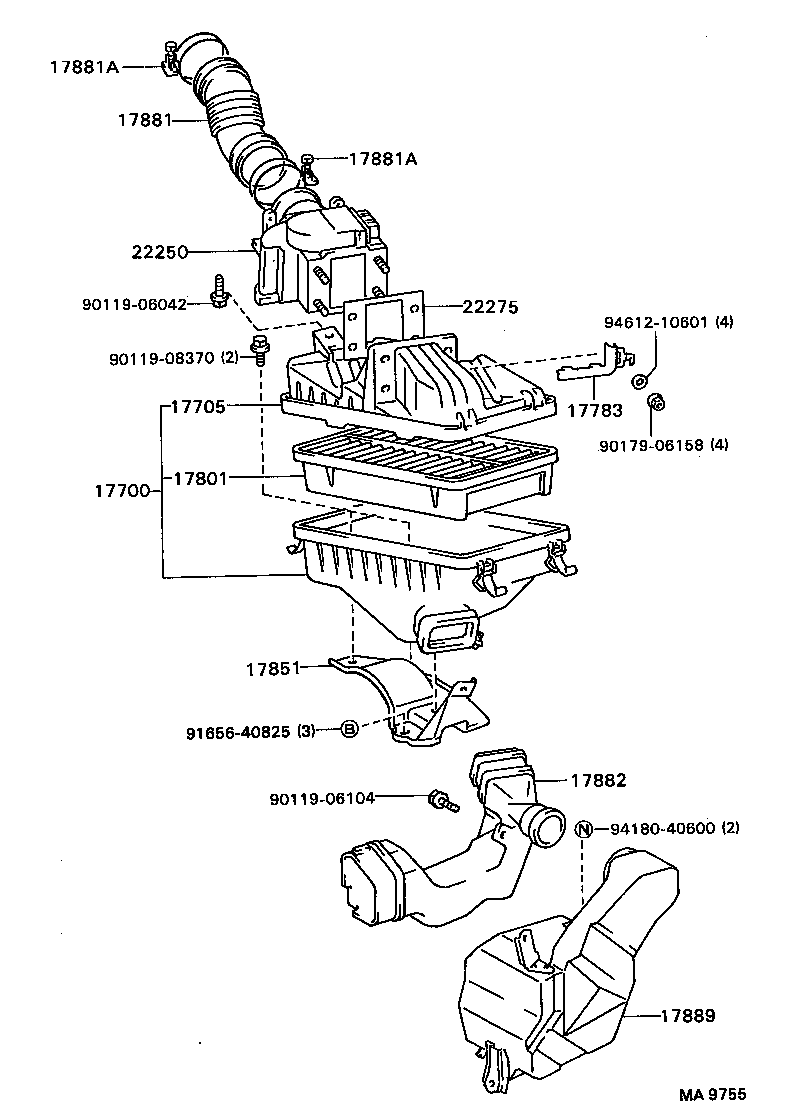

Click highlighted areas on diagram

diagram 17700 17705 17783 17801 17851 17881 17881A 17881A 17882 17889 22250 22275 9011906042 9011906104 9011908370 9017906158 9165640825 9418040600 9461210601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74041

3SG#..ST162

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74040

3SG#..ST162

 1
17783 - PLATE, AIR CLEANER BAFFLE
17783-74020

3SFE,3SG#..ST162

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

3SFE,3SG#..ST162

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-74010

3SFE,3SG#..ST162

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74060

3SGEL..ST162

 1
17881-74160

3SGELC..ST162

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

3SG#..ST162

THROTTLE BODY SIDE

 1
96111-10900

3SG#..ST162

AIR FLOW METER SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

3SG#..ST162

THROTTLE BODY SIDE

 1
96111-10900

3SG#..ST162

AIR FLOW METER SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-20100

3SG#..ST162

 1
17889 - BOX, AIR CLEANER HOSE, NO.2
17889-20010

3SG#..ST162

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-74070

3SGEL..ST162

 1
22250-74180

3SGELC..ST162

 1
22275 - GASKET, AIR FLOW METER
22275-43010

3SG#..ST162

 1
Common parts
90119-06042
90119-06104
90119-08370
90179-06158
91656-40825
94180-40600
94612-10601
