ST162R-BLMVFQ (1987)
Toyota Celica

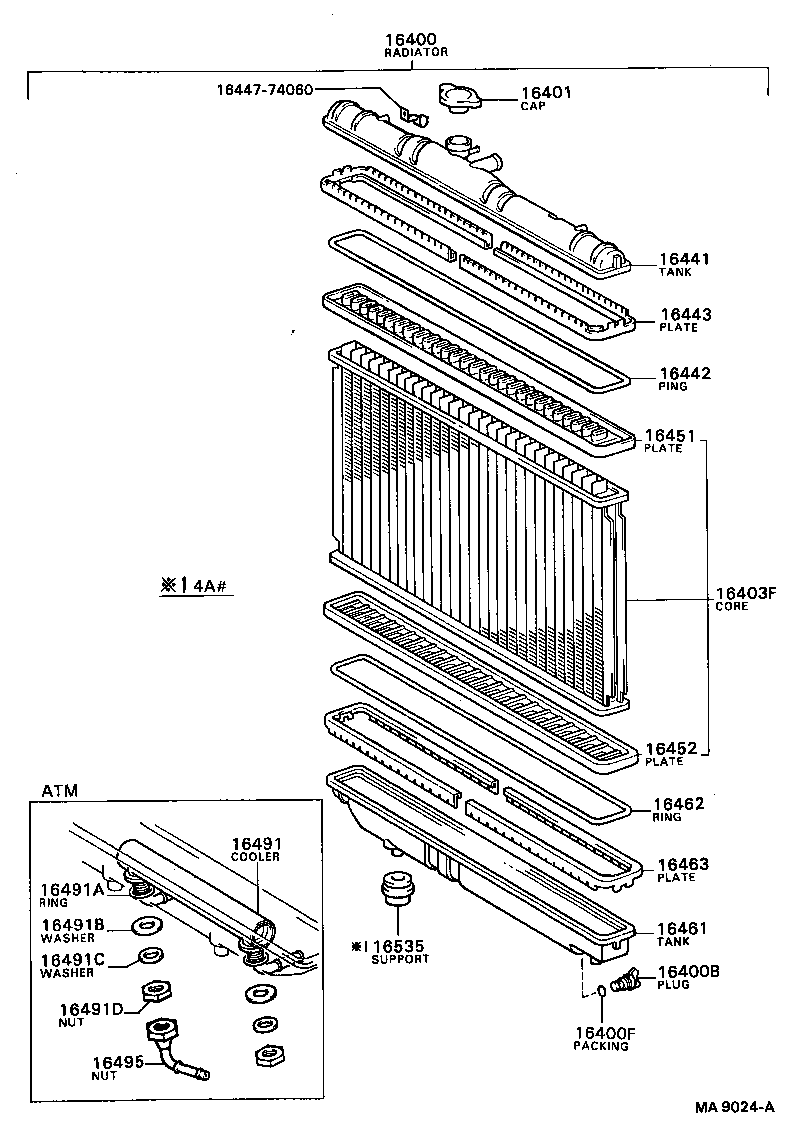

ILLUST NO. 2 OF 2(8708- )3SFE,3SG#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-74080 |
3SG#..ST162..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3SFE,3SG#..ST162 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3SFE,3SG#..ST162 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3SFE,3SG#..ST162 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-74170 |
3SG#..ST162..5F;3SFE..ST162..4FC |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-74090 |
3SG#..ST162;3SFE..ST162..4FC |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-63030 |
3SG#..ST162;3SFE..ST162..4FC |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16463-15320 |
3SG#..ST162;3SFE..ST162..4FC |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-64070 |
3SG#..ST162;3SFE..ST162..4FC |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-64070 |
3SG#..ST162;3SFE..ST162..4FC |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-74060 |
3SFE,3SG#..ST162..5F |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
3SFE,3SG#..ST162 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
3SFE,3SG#..ST162 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74020 |
3SG#..ST162;3SFE..ST162..4FC |
2 | ||
| Common parts | ||||
| 16447-74060 | ||||

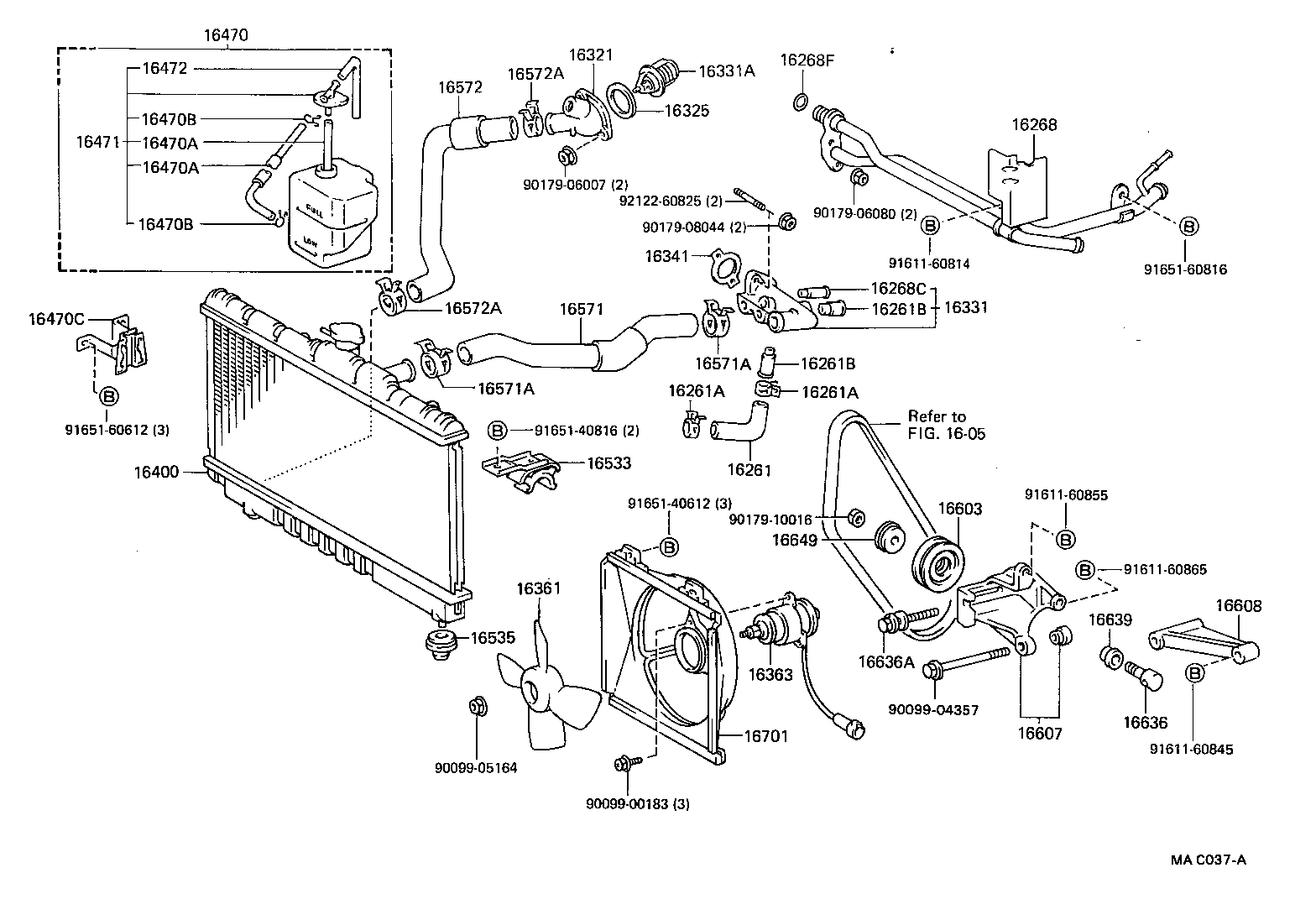

ILLUST NO. 1 OF 2(8708- )3SG#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88360 |
3SG#..ST162 |
1 | ||
| 16261-88361 |
3SGEL..ST162 |
1 | ||
| 16261-88360 |
3SGELC..ST162 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3SFE,3SG#..ST162 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3SFE,3SG#..ST162 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-17001 |
3SG#..ST162 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-17001 |
3SG#..ST162 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-74040 |
3SG#..ST162 |
1 | ||
| 16268C - UNION, WATER BY-PASS PIPE | ||||
| 90072-40625 |
3SG#..ST162 |
1 | ||
| 90406-08013 |
3SG#..ST162 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
3SFE,3SG#..ST162 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-88360 |
3SFE,3SG#..ST162 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
3SFE,3SG#..ST162 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-74010 |
3SGEL..ST162 |
1 | ||
| 16304-74020 |
3SGELC..ST162 |
1 | ||
| 16304-74021 |
3SGELC..ST162 |
1 | ||
| 16304-74011 |
3SGEL..ST162 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3SFE,3SGELC..ST162 *WAX 82-95 |
1 | ||
| 90916-03060 |
3SGEL..ST162 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-63010 |
3SFE,3SG#..ST162 |
1 | ||
| 16341-63011 |
3SFE,3SGELC..ST162 |
1 | ||
| 16361 - FAN | ||||
| 16361-15080 |
3SG#..ST162..5F |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-10010 |
3SG#..ST162..5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-74080 |
3SG#..ST162..5F |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74010 |
3SFE,3SG#..ST162 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3SFE,3SG#..ST162 L=600 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3SFE,3SG#..ST162 L=600 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SFE,3SG#..ST162 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SFE,3SG#..ST162 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-74010 |
3SFE,3SG#..ST162 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74010 |
3SFE,3SG#..ST162 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-14030 |
3SFE,3SG#..ST162 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74020 |
3SG#..ST162;3SFE..ST162..4FC |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74020 |
3SG#..ST162;3SFE..ST162..4FC |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74080 |
3SFE,3SG#..ST162 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
3SFE,3SG#..ST162 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
3SFE,3SG#..ST162 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74030 |
3SFE,3SG#..ST162 |
1 | ||
| 16572-74120 |
3SFE,3SG#..ST162 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
3SFE,3SG#..ST162 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
3SFE,3SG#..ST162 |
2 | ||
| 16603 - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-88360 |
3SG#..ST162 |
1 | ||
| 16607 - BRACKET SUB-ASSY, IDLER PULLEY, NO.1 | ||||
| 16631-74020 |
3SG#..ST162 |
1 | ||
| 16608 - BRACKET SUB-ASSY, IDLER PULLEY, NO.2 | ||||
| 16632-88360 |
3SG#..ST162 |
1 | ||
| 16636 - SHAFT, IDLER PULLY, NO.1 | ||||
| 16636-74020 |
3SG#..ST162 |
1 | ||
| 16636A - BOLT(FOR IDLER PULLY TENSION) | ||||
| 90109-08116 |
3SG#..ST162 |
1 | ||
| 16639 - SPACER, IDLER PULLEY | ||||
| 16639-88360 |
3SG#..ST162 |
1 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16649-88360 |
3SG#..ST162 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74040 |
3SG#..ST162..5F |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-04357 | ||||
| 90099-05164 | ||||
| 90179-06007 | ||||
| 90179-06080 | ||||
| 90179-08044 | ||||
| 90179-10016 | ||||
| 91611-60814 | ||||
| 91611-60845 | ||||
| 91611-60855 | ||||
| 91611-60865 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91651-60612 | ||||
| 91651-60816 | ||||
| 92122-60825 | ||||
| Linked diagrams | ||||
| 1605 | ||||
