ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8908)3SGEL

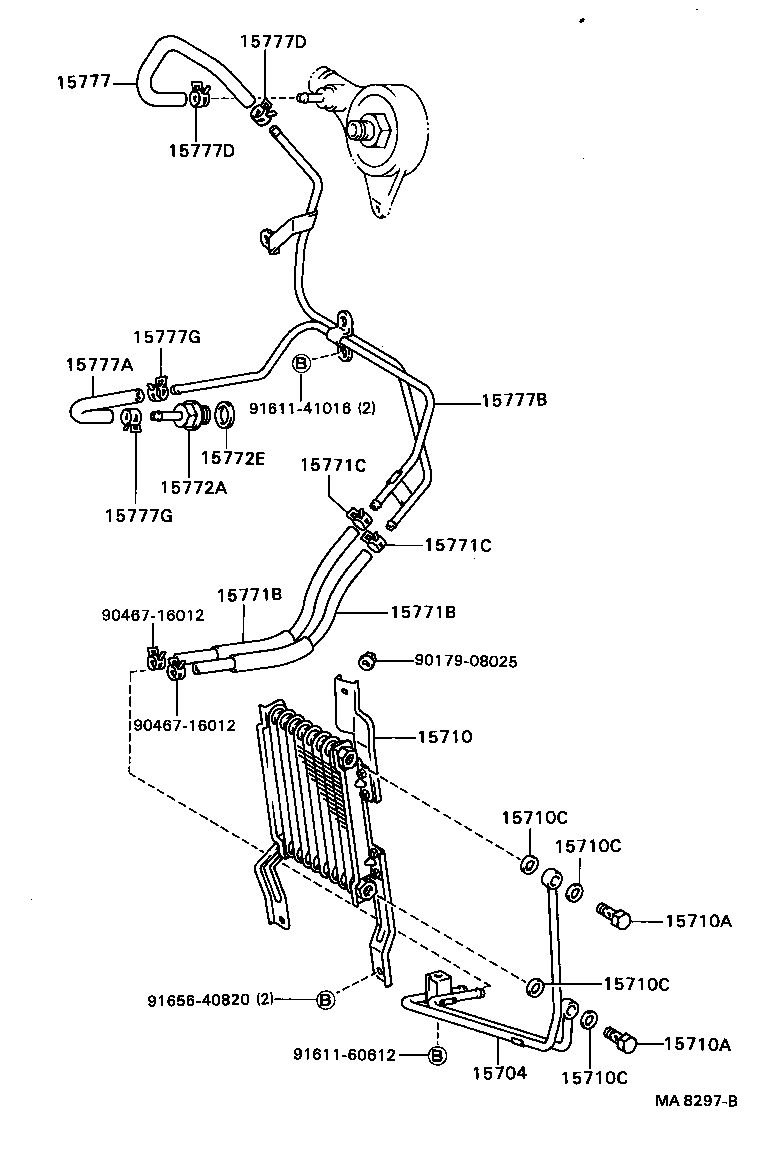

Click highlighted areas on diagram

diagram 15704 15710 15710A 15710A 15710C 15710C 15710C 15710C 15771B 15771B 15771C 15771C 15772A 15772E 15777 15777A 15777B 15777D 15777D 15777G 15777G 9017908025 9046716012 9046716012 9161141016 9161160612 9165640820
Part # Description Qty Price
15704 - PIPE SUB-ASSY, OIL COOLER
15704-74010

3SGEL..ST162

 1
15710 - COOLER ASSY, OIL
15700-74010

3SGEL..ST162

 1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-14003

3SGEL..ST162

 2
15710A - BOLT, UNION(FOR OIL COOLER)
90401-14003

3SGEL..ST162

 2
15710C - GASKET(FOR OIL COOLER)
90430-14235

3SGEL..ST162

 4
15710C - GASKET(FOR OIL COOLER)
90430-14235

3SGEL..ST162

 4
15710C - GASKET(FOR OIL COOLER)
90430-14235

3SGEL..ST162

 4
15710C - GASKET(FOR OIL COOLER)
90430-14235

3SGEL..ST162

 4
15771B - HOSE, OIL, NO.1(FOR OIL PIPE)
90447-17002

3SGEL..ST162

 2
15771B - HOSE, OIL, NO.1(FOR OIL PIPE)
90447-17002

3SGEL..ST162

 2
15771C - CLAMP(FOR OIL PIPE)
90467-16012

3SGEL..ST162

 2
15771C - CLAMP(FOR OIL PIPE)
90467-16012

3SGEL..ST162

 2
15772A - UNION(FOR OIL PIPE)
90404-28001

3SGEL..ST162

 1
15772E - GASKET(FOR OIL PIPE)
90430-28002

3SGEL..ST162

 1
15777 - HOSE, OIL COOLER
15777-88361

3SGEL..ST162

 1
15777A - HOSE, OIL COOLER
15778-88360

3SGEL..ST162

 1
15777B - PIPE, OIL COOLER
15707-88362

3SGEL..ST162

 1
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-16012

3SGEL..ST162

 2
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-16012

3SGEL..ST162

 2
15777G - CLAMP OR CRIP, HOSE
90467-15004

3SGEL..ST162

 2
15777G - CLAMP OR CRIP, HOSE
90467-15004

3SGEL..ST162

 2
Common parts
90179-08025
90467-16012
91611-41016
91611-60612
91656-40820
