ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )3SFE,3SGELC

Click highlighted areas on diagram

diagram 15600A 15601
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19010

3SGEL..ST162

 1
90404-19010

3SGEL..ST162

 1
90404-19002

3SFE,3SGELC..ST162

 1
90404-19002

3SFE,3SGELC..ST162

 1
15601 - FILTER SUB-ASSY, OIL
90915-03001

3SFE,3SG#..ST162

 1
90915-03001

3SFE,3SG#..ST162

 1

(8708- )3SGEL

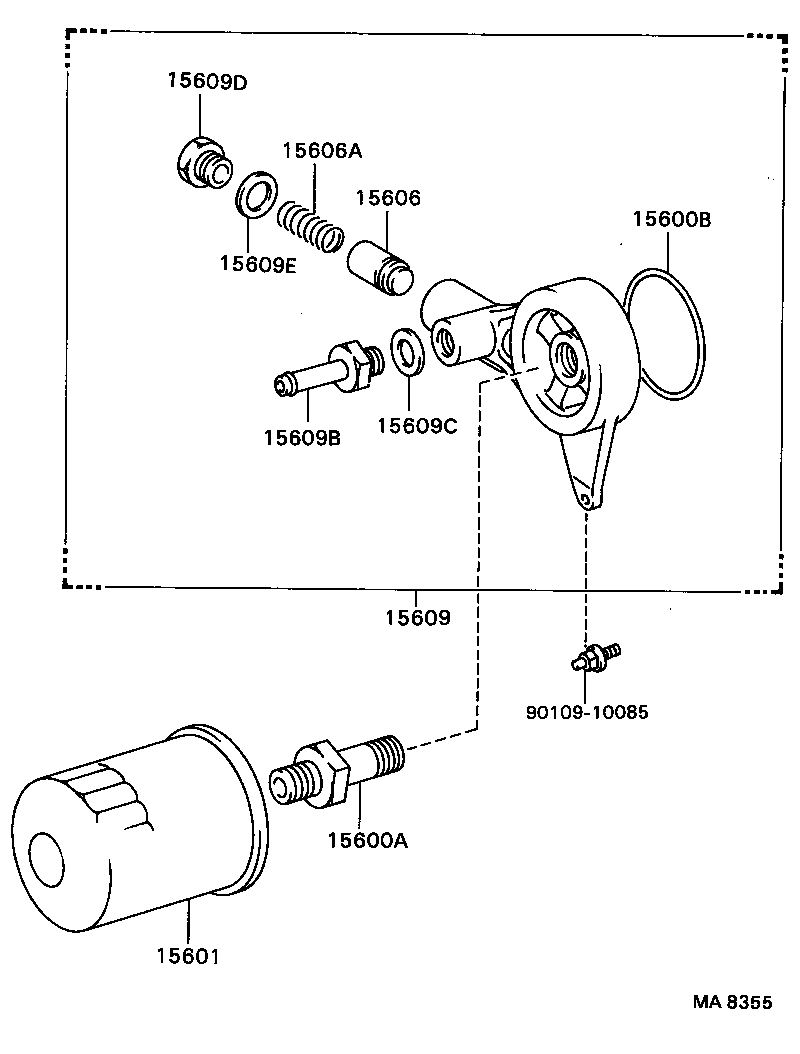

Click highlighted areas on diagram

diagram 15600A 15600B 15601 15606 15606A 15609 15609B 15609C 15609D 15609E 9010910085
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19010

3SGEL..ST162

 1
90404-19002

3SFE,3SGELC..ST162

 1
15600B - RING, O, NO.1(FOR OIL FILTER)
96732-31060

3SGEL..ST162

 1
15601 - FILTER SUB-ASSY, OIL
90915-03001

3SFE,3SG#..ST162

 1
15606 - VALVE SUB-ASSY, OIL SWITCHING
15131-38030

3SGEL..ST162

 1
15606A - SPRING, COMPRESSION(FOR OIL SWITCHING VALVE)
15132-21010

3SGEL..ST162

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15670-88361

3SGEL..ST162

 1
15609B - UNION(FOR OIL FILTER BRACKET)
90029-40001

3SGEL..ST162

 1
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
90430-14235

3SGEL..ST162

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
15133-20010

3SGEL..ST162

 1
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
15134-20010

3SGEL..ST162

 1
Common parts
90109-10085
