ST162L-BLPVFV (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )CP ; (8508- )LB..ME

Click highlighted areas on diagram

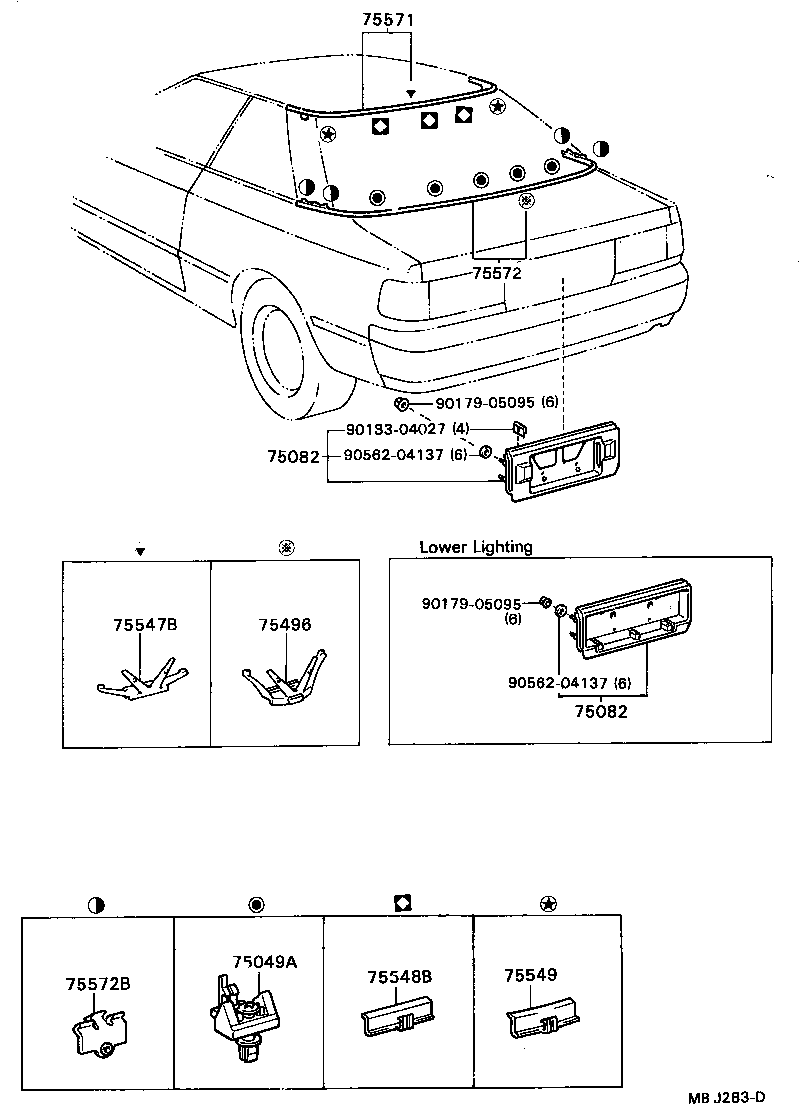

diagram 75049A 75082 75082 75496 75547B 75548B 75549 75571 75572 75572B 9017905095 9017905095 9018304027 9056204137 9056204137
Part # Description Qty Price
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-20130

AT160,ST162,182..LB

*LPL=SIDE LIGHTING

 1
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-20130

AT160,ST162,182..LB

*LPL=SIDE LIGHTING

 1
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-20050

AT160,ST162,182..LB

 4
75549 - FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75549-20080

AT160,ST162,182..LB

 4
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75507-20170

AT160,ST162,182..LB

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-20200

AT160,ST162,182..LB

 1
Common parts
90179-05095
90183-04027
90562-04137
