ST162L-BLPVF (1985)
Toyota Celica
(8508- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

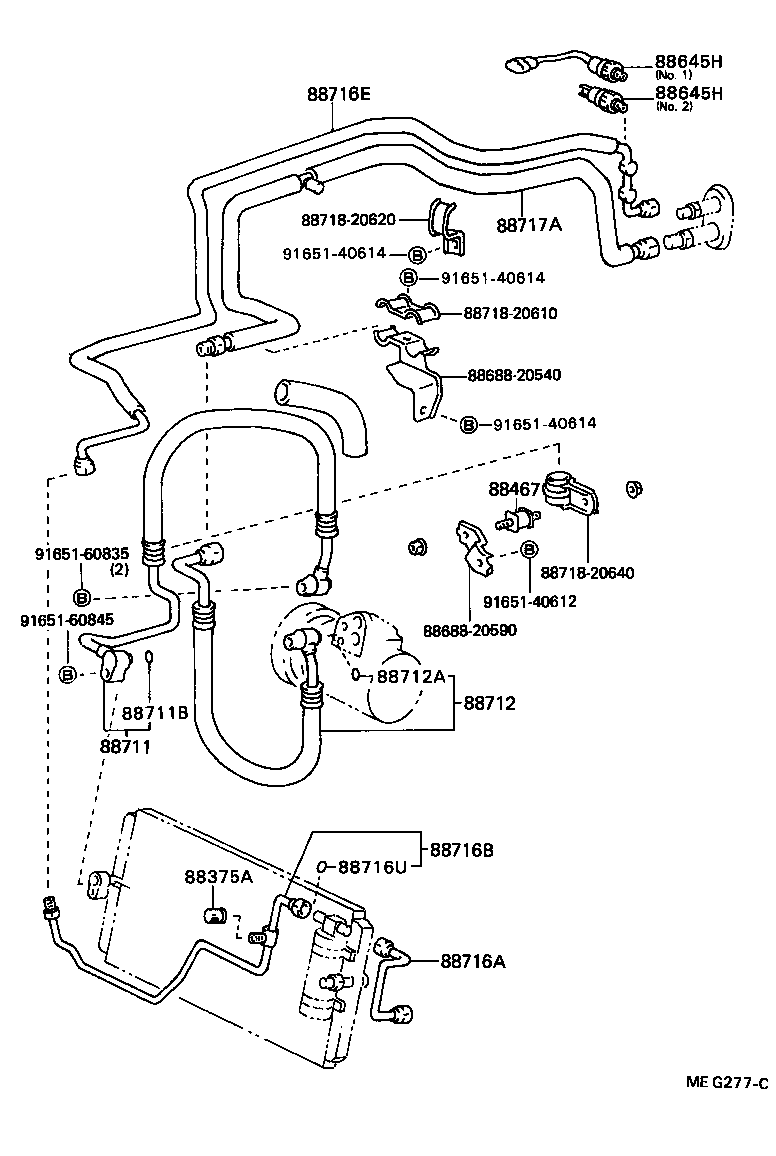

| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
AT160,ST162..GEN,ME |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST162..GEN,ME PIPING |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
AT160,ST162..GT,ST NO.2 |
1 | ||
| 88645-32020 |
AT160,ST162..GT,ST NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
AT160,ST162..GT,ST NO.2 |
1 | ||
| 88645-32020 |
AT160,ST162..GT,ST NO.1 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20450 |
ST162,182 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-20700 |
ST162..ST |
1 | ||
| 88712-20570 |
ST162..GT |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2B010 |
AT160,ST162,182 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-20890 |
AT160,ST162..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88710-20140 |
ST162..ST |
1 | ||
| 88716-2B030 |
AT160,ST162..LHD |
1 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14044 |
AT160,ST162..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-20490 |
AT160,ST162..LHD |
1 | ||
| 88717-20640 |
ST162..ST |
1 | ||
| Common parts | ||||
| 88688-20540 | ||||
| 88688-20590 | ||||
| 88718-20610 | ||||
| 88718-20620 | ||||
| 88718-20640 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

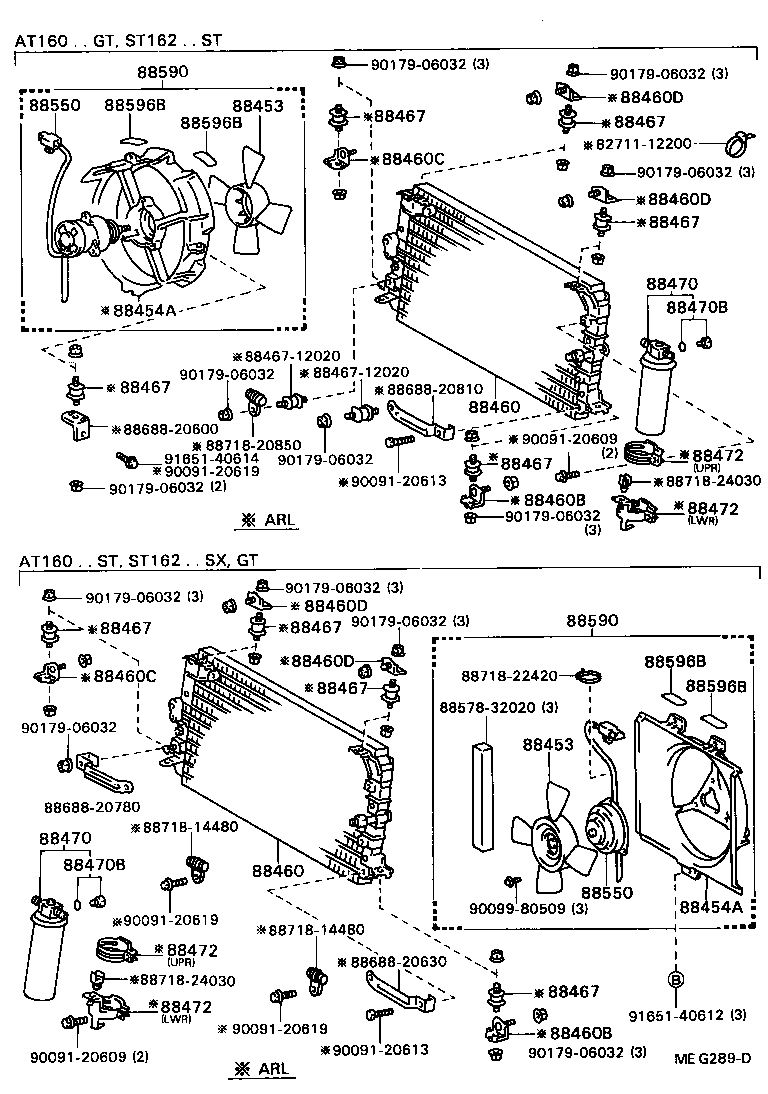

| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20020 |
ST162..ST |
1 | ||
| 88453-32020 |
ST162,182..GT,SX |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20020 |
ST162..ST |
1 | ||
| 88453-32020 |
ST162,182..GT,SX |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-32030 |
ST162..GEN |
1 | ||
| 88454-20050 |
ST162..ST |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-32030 |
ST162..GEN |
1 | ||
| 88454-20050 |
ST162..ST |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20200 |
AT160,ST162,182 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20200 |
AT160,ST162,182 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST162..GEN,ME PIPING |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST162..GEN,ME PIPING |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST162..GEN,ME PIPING |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST162..GEN,ME PIPING |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST162..GEN,ME PIPING |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST162..GEN,ME PIPING |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST162..GEN,ME PIPING |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST162..GEN,ME PIPING |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
AT160,ST162..GEN,ME PIPING |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
AT160,ST162,182 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
AT160,ST162,182 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
AT160,ST162,182 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
AT160,ST162,182 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12090 |
ST162,182..GT,SX |
1 | ||
| 88550-20030 |
ST162..ST |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12090 |
ST162,182..GT,SX |
1 | ||
| 88550-20030 |
ST162..ST |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20100 |
ST162..GEN |
1 | ||
| 88590-20080 |
ST162..ST |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20100 |
ST162..GEN |
1 | ||
| 88590-20080 |
ST162..ST |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12040 |
ST162..GEN CAUTION |
1 | ||
| 88596-12010 |
ST162..GEN AIR CONDITIONER CAUTION |
1 | ||
| 88596-24010 |
ST162,182..ARL,GEN CAUTION |
1 | ||
| 88723-12010 |
ST162..ST AIR CONDITIONER CAUTION |
1 | ||
| 88723-12010 |
ST162..GEN AIR CONDITIONER CAUTION |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12040 |
ST162..GEN CAUTION |
1 | ||
| 88596-12010 |
ST162..GEN AIR CONDITIONER CAUTION |
1 | ||
| 88596-24010 |
ST162,182..ARL,GEN CAUTION |
1 | ||
| 88723-12010 |
ST162..ST AIR CONDITIONER CAUTION |
1 | ||
| 88723-12010 |
ST162..GEN AIR CONDITIONER CAUTION |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12040 |
ST162..GEN CAUTION |
1 | ||
| 88596-12010 |
ST162..GEN AIR CONDITIONER CAUTION |
1 | ||
| 88596-24010 |
ST162,182..ARL,GEN CAUTION |
1 | ||
| 88723-12010 |
ST162..ST AIR CONDITIONER CAUTION |
1 | ||
| 88723-12010 |
ST162..GEN AIR CONDITIONER CAUTION |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12040 |
ST162..GEN CAUTION |
1 | ||
| 88596-12010 |
ST162..GEN AIR CONDITIONER CAUTION |
1 | ||
| 88596-24010 |
ST162,182..ARL,GEN CAUTION |
1 | ||
| 88723-12010 |
ST162..ST AIR CONDITIONER CAUTION |
1 | ||
| 88723-12010 |
ST162..GEN AIR CONDITIONER CAUTION |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-12020 | ||||
| 88578-32020 | ||||
| 88688-20600 | ||||
| 88688-20630 | ||||
| 88688-20780 | ||||
| 88688-20810 | ||||
| 88718-14480 | ||||
| 88718-20850 | ||||
| 88718-22420 | ||||
| 88718-24030 | ||||
| 90091-20609 | ||||
| 90091-20613 | ||||
| 90091-20619 | ||||
| 90099-80509 | ||||
| 90179-06032 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
