ST162L-BLPVF (1985)
Toyota Celica
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12270 | ||||
| 82711-12450 | ||||
| 82711-14110 | ||||
| 82711-14350 | ||||
| 82711-1A160 | ||||
| 82711-1A170 | ||||
| 82711-1A180 | ||||
| 82711-1A210 | ||||
| 82711-1A330 | ||||
| 82711-1A390 | ||||
| 82711-20490 | ||||
| 82711-20570 | ||||
| 82711-20850 | ||||
| 82711-22270 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-30660 | ||||
| 82711-32090 | ||||
| 82711-32100 | ||||
| 82711-32270 | ||||
| 82711-32460 | ||||
| 82711-32490 | ||||
| 82711-32500 | ||||
| 90464-00284 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82817-20690 | ||||
| 82817-32010 | ||||
| 82819-20140 | ||||
| 90950-01061 | ||||
| 90950-01066 | ||||

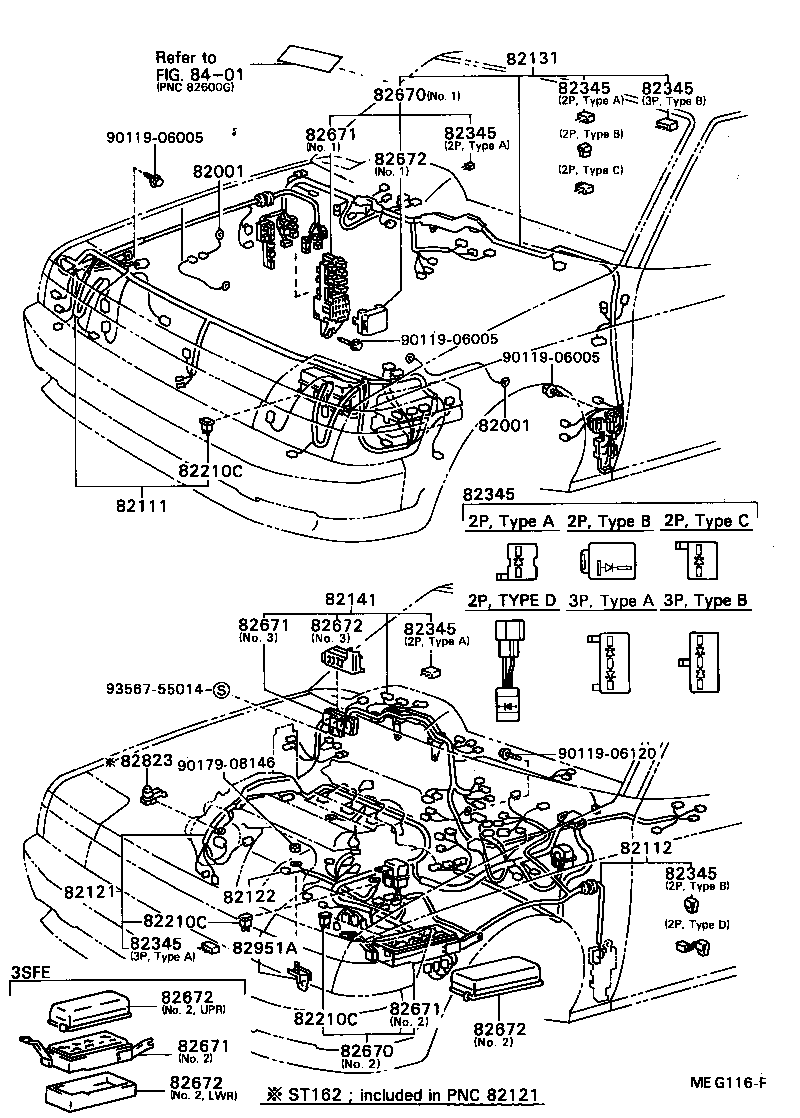

(8508- )AT160,ST162..GT,SX ; (8608- )ST162..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07280 |
ST162..ST ENGINE HANGGER |
1 | ||
| 90980-07239 |
ST162,182..GT,SX ENGINE HANGGER |
1 | ||
| 90980-07206 |
AT160,ST162,182 FENDER RH |
1 | ||
| 90980-07264 |
AT160,ST162,182 TRANSMISSION-FENDER LH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07280 |
ST162..ST ENGINE HANGGER |
1 | ||
| 90980-07239 |
ST162,182..GT,SX ENGINE HANGGER |
1 | ||
| 90980-07206 |
AT160,ST162,182 FENDER RH |
1 | ||
| 90980-07264 |
AT160,ST162,182 TRANSMISSION-FENDER LH |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-20450 |
AT160,ST162..LHD |
1 | ||
| 82111-20710 |
ST162..ST |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-20110 |
ST162..GT W/*CRC |
1 | ||
| 82112-20220 |
ST162..ST |
1 | ||
| 82112-20100 |
ST162..GT |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-20530 |
ST162..4FC..GT |
1 | ||
| 82121-20531 |
ST162..4FC..GT |
1 | ||
| 82121-2B251 |
ST162..4FC..ST |
1 | ||
| 82121-20532 |
ST162..4FC..GT |
1 | ||
| 82121-20533 |
ST162..4FC..GT |
1 | ||
| 82121-2B252 |
ST162..4FC..ST |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-20070 |
ST162,182 |
1 | ||
| 82122-20071 |
ST162,182..GT,SX |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-2B411 |
ST162..GT |
1 | ||
| 82131-2B410 |
ST162..GT |
1 | ||
| 82131-2D300 |
ST162..ST |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-20400 |
AT160,ST162..LHD |
1 | ||
| 82141-20401 |
AT160,ST162..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AT160,ST162,182 30A,TERM.:FEMALE,PNK,30A |
3 | ||
| 90982-08223 |
AT160,ST162,182 30A,TERM.:MALE,PNK,30A |
1 | ||
| 90982-08246 |
ST162..ST 100A,TERM.:MALE,BLUE,100A |
1 | ||
| 90982-08203 |
AT160,ST162,182..GT,SX 80A,TERM.:MALE,BLK,80A |
1 | ||
| 90982-08189 |
AT160,ST162,182 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AT160,ST162,182 30A,TERM.:FEMALE,PNK,30A |
3 | ||
| 90982-08223 |
AT160,ST162,182 30A,TERM.:MALE,PNK,30A |
1 | ||
| 90982-08246 |
ST162..ST 100A,TERM.:MALE,BLUE,100A |
1 | ||
| 90982-08203 |
AT160,ST162,182..GT,SX 80A,TERM.:MALE,BLK,80A |
1 | ||
| 90982-08189 |
AT160,ST162,182 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AT160,ST162,182 30A,TERM.:FEMALE,PNK,30A |
3 | ||
| 90982-08223 |
AT160,ST162,182 30A,TERM.:MALE,PNK,30A |
1 | ||
| 90982-08246 |
ST162..ST 100A,TERM.:MALE,BLUE,100A |
1 | ||
| 90982-08203 |
AT160,ST162,182..GT,SX 80A,TERM.:MALE,BLK,80A |
1 | ||
| 90982-08189 |
AT160,ST162,182 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
AT160,ST162,182 3P,TYPE B |
1 | ||
| 82345-20060 |
AT160,ST162,182 2P,TYPE A |
2 | ||
| 82345-20050 |
ST162..4FC..ST 3P,TYPE A |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
AT160,ST162,182 3P,TYPE B |
1 | ||
| 82345-20060 |
AT160,ST162,182 2P,TYPE A |
2 | ||
| 82345-20050 |
ST162..4FC..ST 3P,TYPE A |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
AT160,ST162,182 3P,TYPE B |
1 | ||
| 82345-20060 |
AT160,ST162,182 2P,TYPE A |
2 | ||
| 82345-20050 |
ST162..4FC..ST 3P,TYPE A |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
AT160,ST162,182 3P,TYPE B |
1 | ||
| 82345-20060 |
AT160,ST162,182 2P,TYPE A |
2 | ||
| 82345-20050 |
ST162..4FC..ST 3P,TYPE A |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
AT160,ST162,182 3P,TYPE B |
1 | ||
| 82345-20060 |
AT160,ST162,182 2P,TYPE A |
2 | ||
| 82345-20050 |
ST162..4FC..ST 3P,TYPE A |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
AT160,ST162,182 3P,TYPE B |
1 | ||
| 82345-20060 |
AT160,ST162,182 2P,TYPE A |
2 | ||
| 82345-20050 |
ST162..4FC..ST 3P,TYPE A |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
AT160,ST162,182 3P,TYPE B |
1 | ||
| 82345-20060 |
AT160,ST162,182 2P,TYPE A |
2 | ||
| 82345-20050 |
ST162..4FC..ST 3P,TYPE A |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20050 |
AT160,ST162,182 NO.2 |
1 | ||
| 82670-20010 |
AT160,ST162,182 NO.1 |
1 | ||
| 82670-20050 |
ST162,182..GT,SX NO.2 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20050 |
AT160,ST162,182 NO.2 |
1 | ||
| 82670-20010 |
AT160,ST162,182 NO.1 |
1 | ||
| 82670-20050 |
ST162,182..GT,SX NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-20040 |
AT160,ST162,182 NO.2 |
1 | ||
| 82671-20040 |
ST162,182..GT,SX NO.2 |
1 | ||
| 82671-20080 |
ST162..ST NO.2 |
1 | ||
| 82671-20030 |
AT160,ST162,182 NO.1 |
1 | ||
| 82671-20050 |
AT160,ST162,182 NO.3 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-20040 |
AT160,ST162,182 NO.2 |
1 | ||
| 82671-20040 |
ST162,182..GT,SX NO.2 |
1 | ||
| 82671-20080 |
ST162..ST NO.2 |
1 | ||
| 82671-20030 |
AT160,ST162,182 NO.1 |
1 | ||
| 82671-20050 |
AT160,ST162,182 NO.3 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-20040 |
AT160,ST162,182 NO.2 |
1 | ||
| 82671-20040 |
ST162,182..GT,SX NO.2 |
1 | ||
| 82671-20080 |
ST162..ST NO.2 |
1 | ||
| 82671-20030 |
AT160,ST162,182 NO.1 |
1 | ||
| 82671-20050 |
AT160,ST162,182 NO.3 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-20040 |
AT160,ST162,182 NO.2 |
1 | ||
| 82671-20040 |
ST162,182..GT,SX NO.2 |
1 | ||
| 82671-20080 |
ST162..ST NO.2 |
1 | ||
| 82671-20030 |
AT160,ST162,182 NO.1 |
1 | ||
| 82671-20050 |
AT160,ST162,182 NO.3 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-20040 |
AT160,ST162,182 NO.2 |
1 | ||
| 82672-20040 |
ST162,182..GT,SX NO.2 |
1 | ||
| 82672-20120 |
ST162..ST NO.2,UPR |
1 | ||
| 82672-20010 |
AT160,ST162,182 NO.1 |
1 | ||
| 82672-20110 |
ST162..ST NO.2,LWR |
1 | ||
| 82672-20080 |
AT160,ST162,182 NO.3 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-20040 |
AT160,ST162,182 NO.2 |
1 | ||
| 82672-20040 |
ST162,182..GT,SX NO.2 |
1 | ||
| 82672-20120 |
ST162..ST NO.2,UPR |
1 | ||
| 82672-20010 |
AT160,ST162,182 NO.1 |
1 | ||
| 82672-20110 |
ST162..ST NO.2,LWR |
1 | ||
| 82672-20080 |
AT160,ST162,182 NO.3 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-20040 |
AT160,ST162,182 NO.2 |
1 | ||
| 82672-20040 |
ST162,182..GT,SX NO.2 |
1 | ||
| 82672-20120 |
ST162..ST NO.2,UPR |
1 | ||
| 82672-20010 |
AT160,ST162,182 NO.1 |
1 | ||
| 82672-20110 |
ST162..ST NO.2,LWR |
1 | ||
| 82672-20080 |
AT160,ST162,182 NO.3 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-20040 |
AT160,ST162,182 NO.2 |
1 | ||
| 82672-20040 |
ST162,182..GT,SX NO.2 |
1 | ||
| 82672-20120 |
ST162..ST NO.2,UPR |
1 | ||
| 82672-20010 |
AT160,ST162,182 NO.1 |
1 | ||
| 82672-20110 |
ST162..ST NO.2,LWR |
1 | ||
| 82672-20080 |
AT160,ST162,182 NO.3 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-20040 |
AT160,ST162,182 NO.2 |
1 | ||
| 82672-20040 |
ST162,182..GT,SX NO.2 |
1 | ||
| 82672-20120 |
ST162..ST NO.2,UPR |
1 | ||
| 82672-20010 |
AT160,ST162,182 NO.1 |
1 | ||
| 82672-20110 |
ST162..ST NO.2,LWR |
1 | ||
| 82672-20080 |
AT160,ST162,182 NO.3 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
AT160,ST162..ST STARTER |
1 | ||
| 82823-22060 |
ST162,182 ALTERNATOR |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06120 | ||||
| 90179-08146 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8508- )LB..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-20320 |
AT160,ST162..LHD..GEN..TWC W/*RCM & *PW |
1 | ||
| 82151-20250 |
ST162..ST |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-20230 |
ST162..ST |
1 | ||
| 82152-20300 |
AT160,ST162..LHD..GEN..TWC W/*RCM & *PW |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-20890 |
ST162..LB..GT |
1 | ||
| 82161-20891 |
ST162..LB..GT |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-20280 |
AT160,ST162..LHD..TWC |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-20020 |
AT160,ST162..GT |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20200 |
AT160,ST162..LHD |
1 | ||
| 82171-20210 |
AT160,ST162..LHD W/SUN ROOF |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-20010 |
AT160,ST162,182 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20150 |
AT160,ST162,182..LB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-20050 |
AT160,ST162,182..LB W/*RW |
1 | ||
| 82184-20040 |
AT160,ST162,182..LB |
1 | ||
| 82184-20050 |
AT160,ST162,182..LB..TWC W/*RW |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-20070 |
AT160,ST162,182..LB |
1 | ||
| 82185-20090 |
AT160,ST162,182..LB..TWC W/*RW & *RWD |
1 | ||
| 82185-20080 |
AT160,ST162..LB..GT W/*RW |
1 | ||
| 82185-20080 |
AT160,ST162..LB..(GT,ST) W/*RW |
1 | ||
| 82185-20090 |
AT160,ST162,182..LB W/*RW & *RWD |
1 | ||
| 82185-20090 |
AT160,ST162,182..LB..(GT,SX) W/*RW & *RWD |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20020 |
AT160,ST162,182 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-12010 |
AT160,ST162,182 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AT160,ST162,182 |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-20010 |
AT160,ST162,182 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20010 |
AT160,ST162,182 |
1 | ||
| Common parts | ||||
| 82981-20020 | ||||
| 82983-12010 | ||||
| 82984-20010 | ||||
| 82985-20010 | ||||
| 82991-20010 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-20720 | ||||
| 82711-22220 | ||||
| 82711-2B160 | ||||
| 82711-32620 | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32780 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
