ST162L-BLPVF (1985)
Toyota Celica
(8508- )

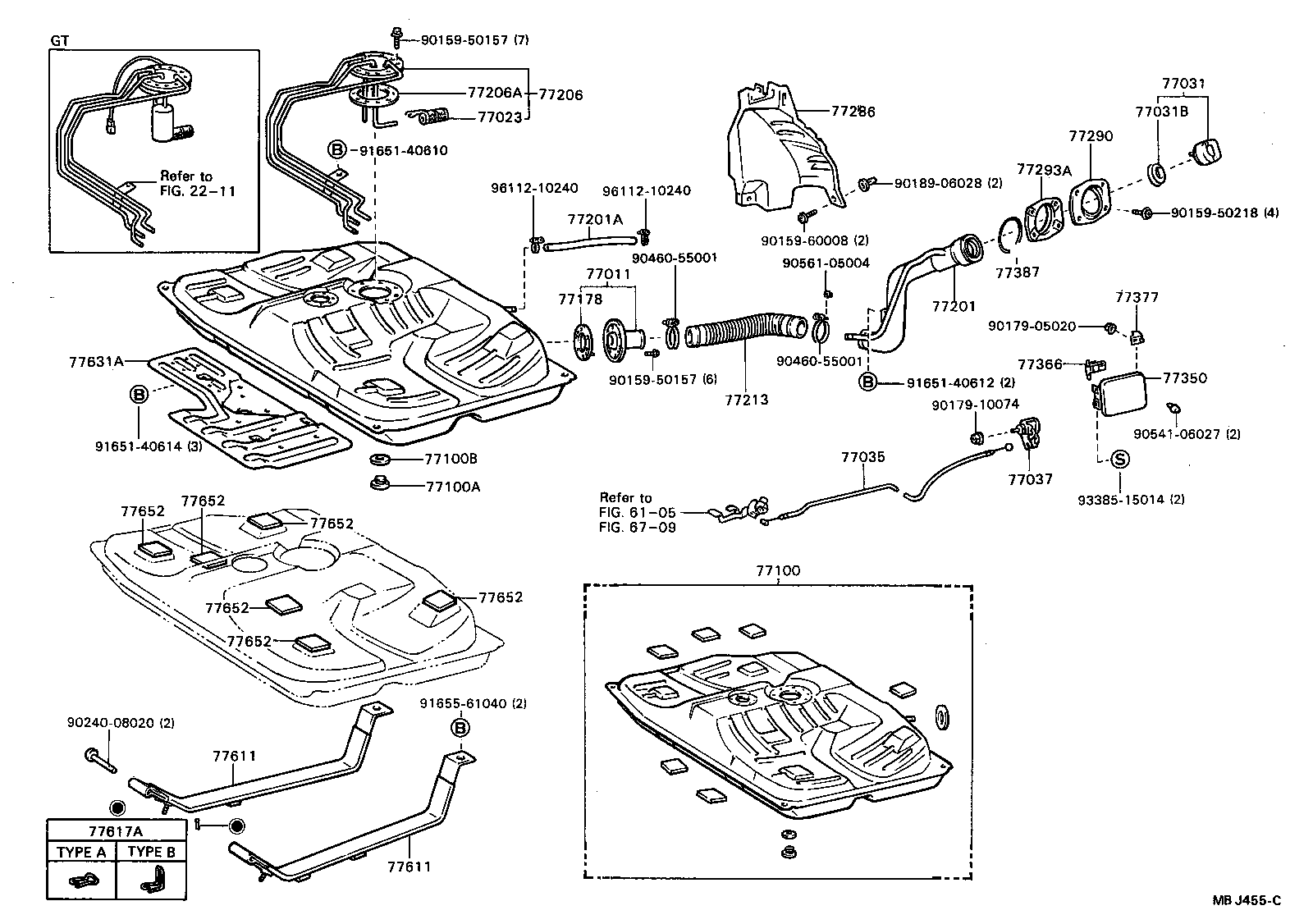

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-20010 |
AT160,ST162,182 |
1 | ||
| 77011-20020 |
AT160,ST162,182 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AT160,ST162..GEN,ME |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AT160,ST162..GEN,ME |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-20140 |
AT160,ST162..LHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12040 |
AT160,ST162,182 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-29205 |
AT160,ST162,182..ARL,GEN |
1 | ||
| 77001-29205 |
AT160,ST162,182 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AT160,ST162,182 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AT160,ST162,182 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
AT160,ST162,182 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20160 |
AT160,ST162..GEN,ME |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22912 |
AT160,ST162,182 L=220 |
1 | ||
| 95311-13024 |
AT160,ST162,182 *H,L=240 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-20080 |
AT160,ST162,182 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-20100 |
AT160,ST162,182 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-20030 |
AT160,ST162,182 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20020 |
AT160,ST162,182 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-20090 |
AT160,ST162,182 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-20010 |
AT160,ST162,182 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
AT160,ST162,182 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
AT160,ST162,182 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-20060 |
AT160,ST162,182 RH |
1 | ||
| 77601-20080 |
AT160,ST162,182 RH |
1 | ||
| 77602-20110 |
AT160,ST162..GEN HARSH ROAD PACKAGE,LH |
1 | ||
| 77602-20110 |
AT160,ST162,182 LH |
1 | ||
| 77601-20080 |
AT160,ST162..GEN HARSH ROAD PACKAGE,RH |
1 | ||
| 77602-20090 |
AT160,ST162,182 LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-20060 |
AT160,ST162,182 RH |
1 | ||
| 77601-20080 |
AT160,ST162,182 RH |
1 | ||
| 77602-20110 |
AT160,ST162..GEN HARSH ROAD PACKAGE,LH |
1 | ||
| 77602-20110 |
AT160,ST162,182 LH |
1 | ||
| 77601-20080 |
AT160,ST162..GEN HARSH ROAD PACKAGE,RH |
1 | ||
| 77602-20090 |
AT160,ST162,182 LH |
1 | ||
| 77617A - UNION, AUXILIARY FUEL BAND | ||||
| 90468-14004 |
AT160,ST162,182 TYPE A |
2 | ||
| 77617-12010 |
AT160,ST162,182 TYPE B |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-20040 |
AT160,ST162..GEN HARSH ROAD PACKAGE |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162,182 |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162,182 |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162,182 |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162,182 |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162,182 |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
AT160,ST162,182 |
6 | ||
| Common parts | ||||
| 90159-50157 | ||||
| 90159-50218 | ||||
| 90159-60008 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-06028 | ||||
| 90240-08020 | ||||
| 90460-55001 | ||||
| 90541-06027 | ||||
| 90561-05004 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91655-61040 | ||||
| 93385-15014 | ||||
| 96112-10240 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 6709 | ||||

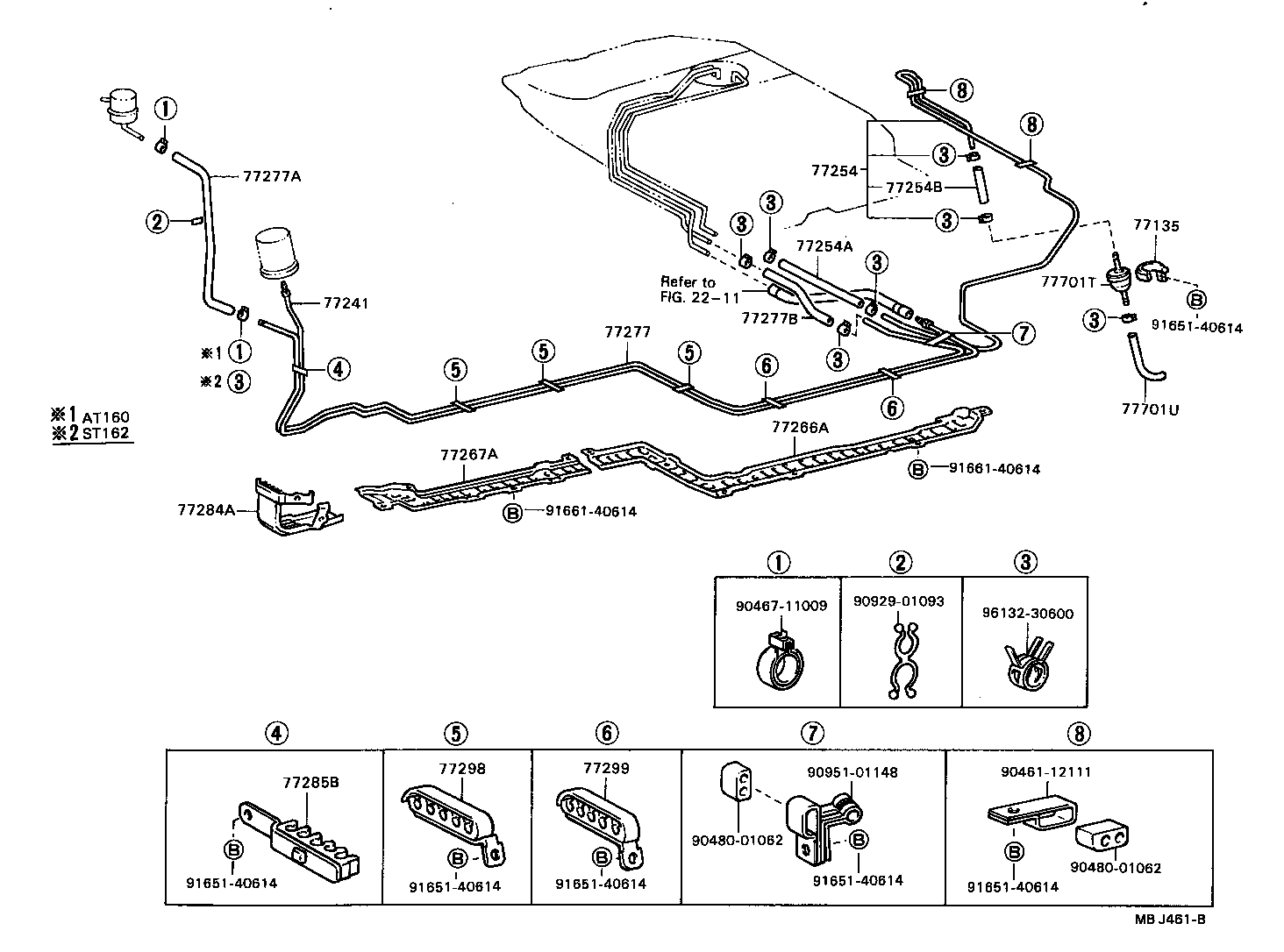

(8508- )GEN..TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20030 |
AT160,ST162..GEN |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-20320 |
AT160,ST162..GEN..TWC |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77028-20030 |
AT160,ST162..GEN |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06014 |
ST162..GEN *H,L=140 |
1 | ||
| 95332-06020 |
AT160,ST162..GEN *H,L=140 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
AT160,ST162..GEN *H,L=180 |
1 | ||
| 95333-06020 |
AT160,ST162..GEN *H,L=180 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20070 |
AT160,ST162,182 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20010 |
AT160,ST162,182 |
1 | ||
| 77267-20030 |
AT160,ST162..GEN,ME HARSH ROAD PACKAGE |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-20190 |
AT160,ST162,182 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12018 |
ST162,182 |
1 | ||
| 90447-12085 |
ST162,182 L=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
AT160,ST162..GT *H,L=140 |
1 | ||
| 95333-06014 |
AT160,ST162..GT *H,L=140 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-20031 |
AT160,ST162,182 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20041 |
AT160,ST162..GT |
1 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-20010 |
AT160,ST162..GT |
3 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-20010 |
AT160,ST162..GT |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AT160,ST162..GEN |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AT160,ST162..GEN *H,L=180 |
1 | ||
| 95333-06020 |
AT160,ST162..GEN *H,L=180 |
1 | ||
| Common parts | ||||
| 90461-12111 | ||||
| 90467-11009 | ||||
| 90480-01062 | ||||
| 90929-01093 | ||||
| 90951-01148 | ||||
| 91651-40614 | ||||
| 91661-40614 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2211 | ||||
