ST162L-BLPVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

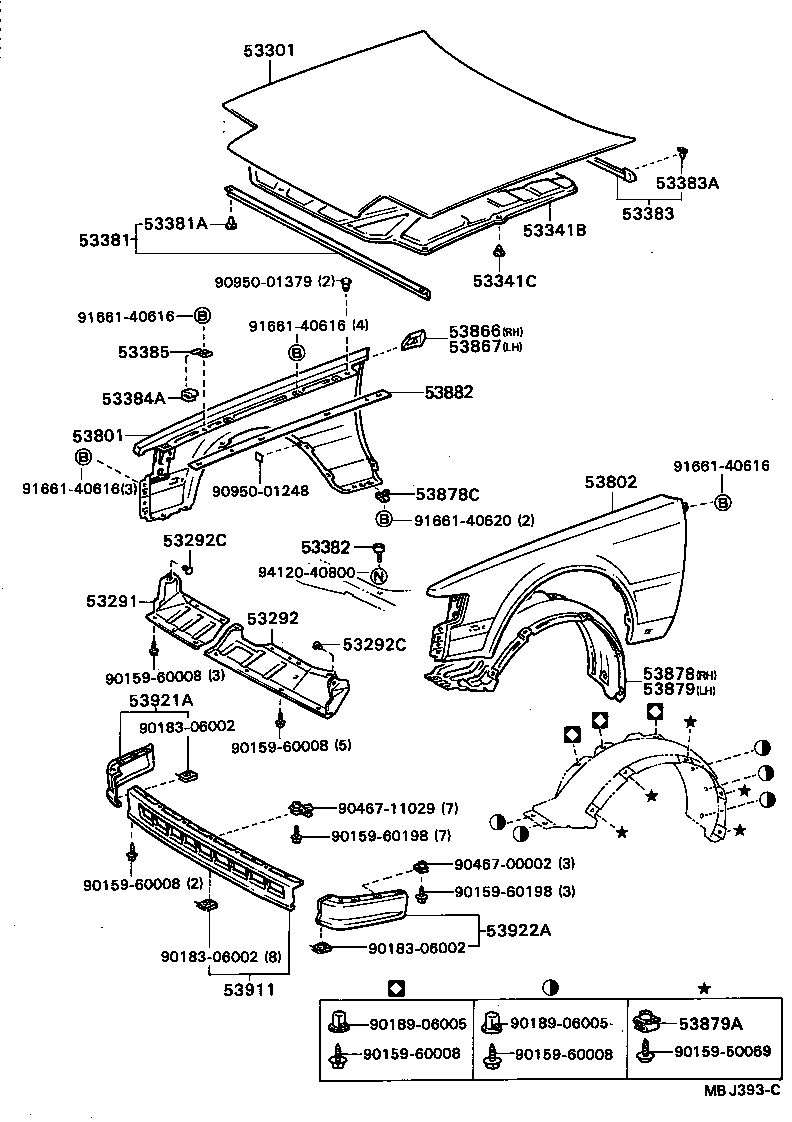

Click highlighted areas on diagram

diagram 53291 53292 53292C 53292C 53301 53341B 53341C 53381 53381A 53382 53383 53383A 53384A 53385 53801 53802 53866 53867 53878 53878C 53879 53879A 53882 53911 53921A 53922A 9015950069 9015960008 9015960008 9015960008 9015960008 9015960008 9015960198 9015960198 9018306002 9018306002 9018306002 9018906005 9018906005 9046700002 9046711029 9095001248 9095001379 9166140616 9166140616 9166140616 9166140616 9166140620 9412040800
Part # Description Qty Price
53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH
53291-20020

AT160,ST162,182

 1
53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH
53292-20020

ST162..ST

 1
53292-20020

AT160,ST162..GEN

 1
53292-20030

ST162,182..GT,SX

W/AIR DUCT

 1
53292C - CLIP, RADIATOR SUPPORT TO FRAME
90467-0906401

AT160,ST162,182

BLACK,BLACK

 5
53292C - CLIP, RADIATOR SUPPORT TO FRAME
90467-0906401

AT160,ST162,182

BLACK,BLACK

 5
53301 - HOOD SUB-ASSY
53301-20230

AT160,ST162,182

 1
53341B - INSULATOR, HOOD
53341-20090

ST162,182

 1
53341-20140

ST162,182

 1
53341-20100

ST162,182

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09008

ST162,182

 11
90467-09008

ST162,182

 12
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-20080

AT160,ST162,182

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AT160,ST162,182

 8
53382 - BUMPER, HOOD, FRONT
53382-90A00

AT160,ST162,182

 2
53382-20011

AT160,ST162,182

 2
53383 - SEAL, HOOD TO COWL TOP
53383-20080

AT160,ST162,182

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08030

AT160,ST162,182

 10
53384A - BUMPER, FENDER TO HOOD
53384-14010

AT160,ST162,182

 2
53385 - RETAINER, HOOD, BUMPER
53385-14010

AT160,ST162,182

RH

 1
53386-14010

AT160,ST162,182

LH

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-20830

AT160,ST162,182..ARL,GEN

 1
53801-20840

AT160,ST162,182

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-20830

AT160,ST162,182..ARL,GEN

 1
53802-20840

AT160,ST162,182

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-20010

AT160,ST162,182

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-20030

AT160,ST162,182

 1
53878 - LINER, FRONT FENDER, RH
53875-20110

AT160,ST162,182

 1
53878C - SPACER, FRONT FENDER
53878-20030

AT160,ST162,182

 2
53879 - LINER, FRONT FENDER, LH
53876-20120

AT160,ST162,182

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AT160,ST162,182

 10
53882 - PACKING, FRONT FENDER MAIN
53882-20060

AT160,ST162,182

 2
53911 - PANEL, FRONT VALANCE
53911-20120

AT160,ST162,182

 1
53921A - PANEL, FRONT VALANCE, RH
53921-20020

AT160,ST162,182

 1
53922A - PANEL, FRONT VALANCE, LH
53922-20010

AT160,ST162,182

 1
Common parts
90159-50069
90159-60008
90159-60198
90183-06002
90189-06005
90467-00002
90467-11029
90950-01248
90950-01379
91661-40616
91661-40620
94120-40800
