ST162L-BLPVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

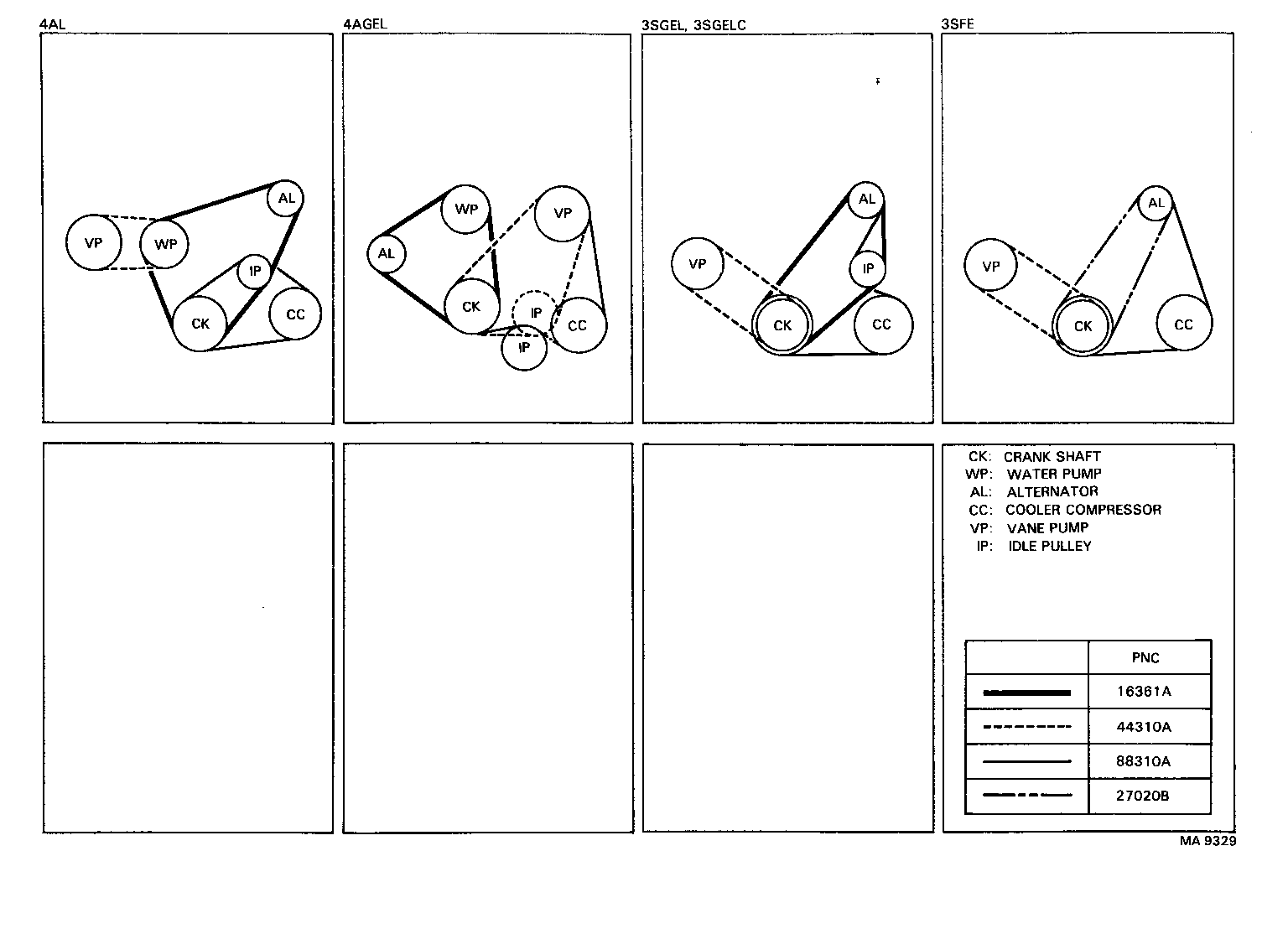

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-01000

3SG#..ST162,182

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50760

ST162,182

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-51110

ST162..ST

 1
90916-02116

ST162,182..GT,SX

MITSUBOSHI

 1
90916-02197

ST162,182..GT,SX

BANDO

 1
