ST162L-BCPVF (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
3SGEL
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )3SG#

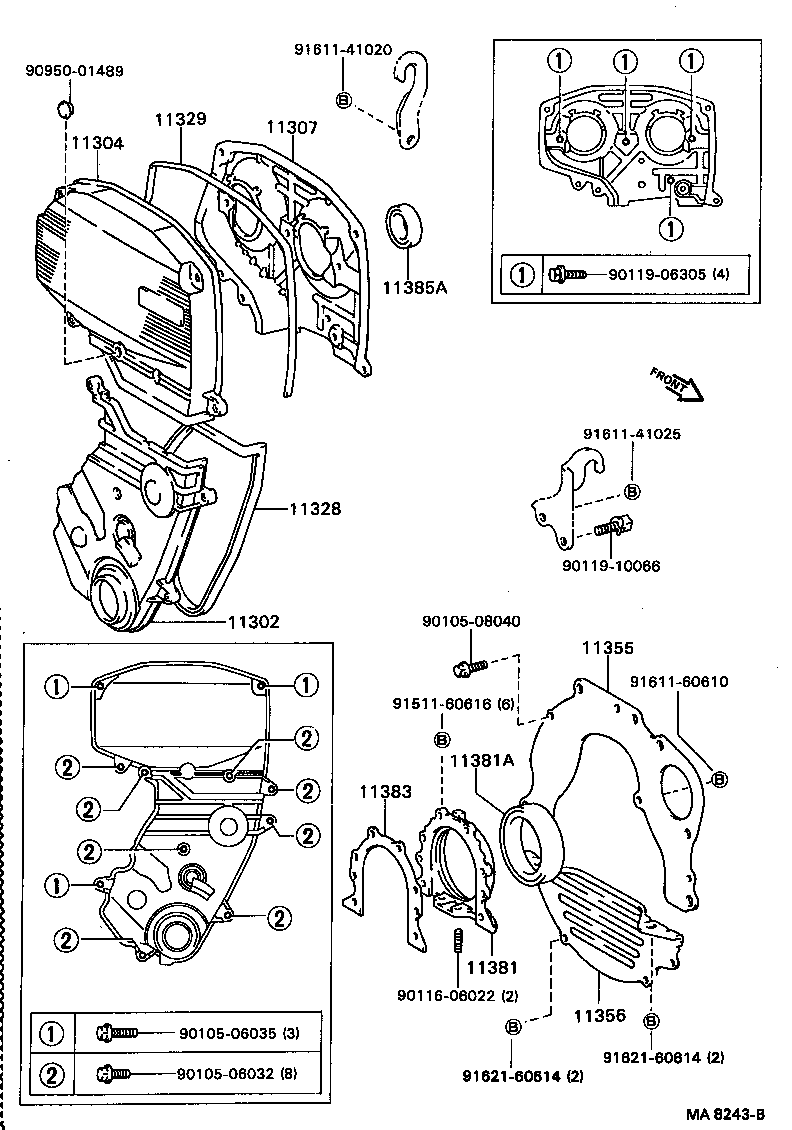

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-88360 |
3SG#..ST162,182 |
1 | ||
| 11304 - COVER, TIMING CHAIN OR BELT, NO.2 | ||||
| 11322-88361 |
3SG#..ST162,182 |
1 | ||
| 11307 - COVER, SUB-ASSY, TIMING BELT, NO.3 | ||||
| 11323-88360 |
3SG#..ST162,182 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-88360 |
3SG#..ST162,182 |
1 | ||
| 11328-88361 |
3SG#..ST162,182 |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-88360 |
3SG#..ST162,182 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-63021 |
3SG#..ST162,182 |
1 | ||
| 11355-63020 |
3SG#..ST162,182 |
1 | ||
| 11356 - PLATE, REAR END, NO.2 | ||||
| 11356-63020 |
3SG#..ST162,182 |
1 | ||
| 11356-63030 |
3SFE,3SG#..ST162,182 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-63010 |
3SG#..ST162,182 |
1 | ||
| 11381-63011 |
3SFE,3SG#..ST162,182 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-85003 |
3SFE,3SG#..ST162,182 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-88380 |
3SGEL..ST162 |
1 | ||
| 11383-63010 |
3SG#..ST162,182 |
1 | ||
| 11385A - SEAL, OIL(FOR CAMSHAFT) | ||||
| 90311-35008 |
3SG#..ST162,182 |
2 | ||
| Common parts | ||||
| 90105-06032 | ||||
| 90105-06035 | ||||
| 90105-08040 | ||||
| 90116-06022 | ||||
| 90119-06305 | ||||
| 90119-10066 | ||||
| 90950-01489 | ||||
| 91511-60616 | ||||
| 91611-41020 | ||||
| 91611-41025 | ||||
| 91611-60610 | ||||
| 91621-60614 | ||||
