SA63R-BCPSCQ (1983)

Toyota Celica

Production Aug 1983 - Aug 1984
Engine 2SC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP..GTS,LT,ST

Click highlighted areas on diagram

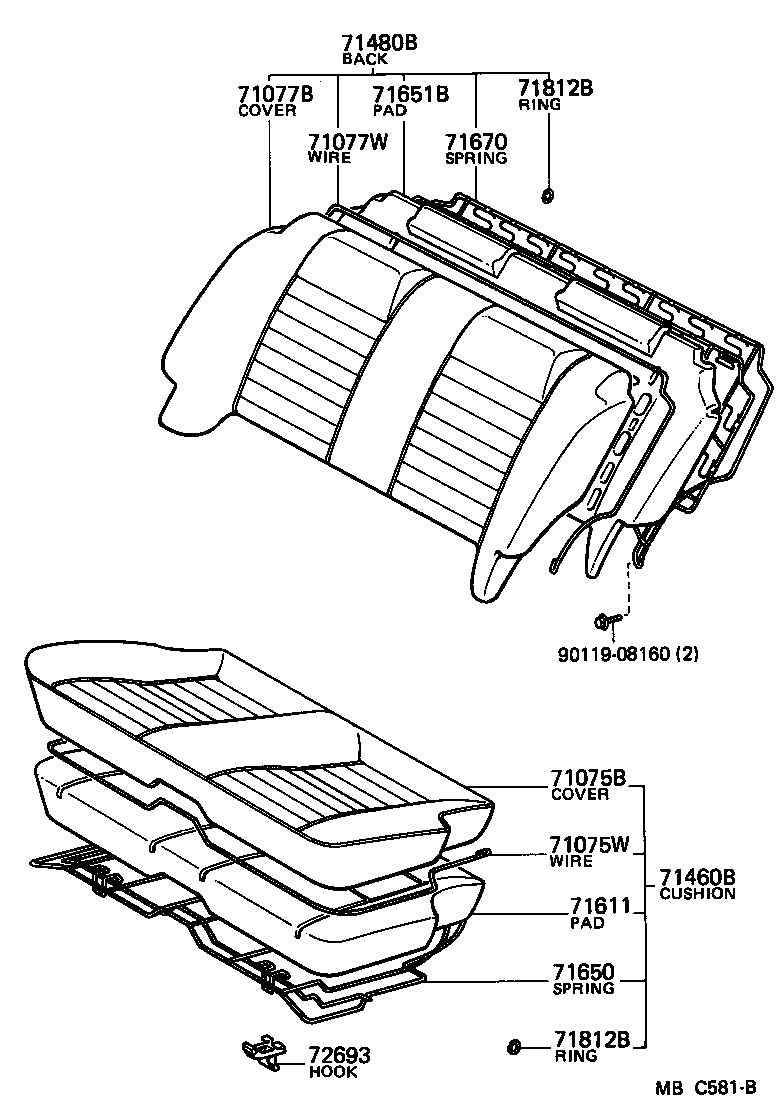

diagram 71075B 71075W 71077B 71077W 71460B 71480B 71611 71650 71651B 71670 71812B 71812B 72693 9011908160
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1B77005

AA63,RA60,61,65,SA63..GTS,ST

FB,BEIGE,BEIGE,TRIM4#

 1
71075W - WIRE, REAR SEAT CUSHION COVER
90580-20132

AA63,MA61,RA6#,SA63,TA60

L=1000

 1
90580-20007

AA63,MA61,RA6#,SA63,TA60

L=1200

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1B71005

AA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)

FB,BEIGE,BEIGE,TRIM4#

 1
71077W - WIRE, REAR SEAT BACK COVER
90580-20033

AA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)

L=670

 2
90580-20069

AA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)

L=1140

 1
90580-20035

AA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)

L=120

 2
90580-20091

AA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)

L=940

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1B79005

AA63,RA60,61,65,SA63..GTS,ST

FB,BEIGE,BEIGE,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1B82005

AA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)

FB,BEIGE,BEIGE,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71611-14150

RA61..RHD;RA61..LHD..XT;AA63,MA61,SA63

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-14060

AA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-14100

AA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AA63,MA61,RA6#,SA63,TA60

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AA63,MA61,RA6#,SA63,TA60

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-14030

AA63,MA61,RA6#,SA63,TA60

 2
Common parts
90119-08160
