SA63R-BCPSCQ (1983)

Toyota Celica

Production Aug 1983 - Aug 1984
Engine 2SC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)SA63..4FC

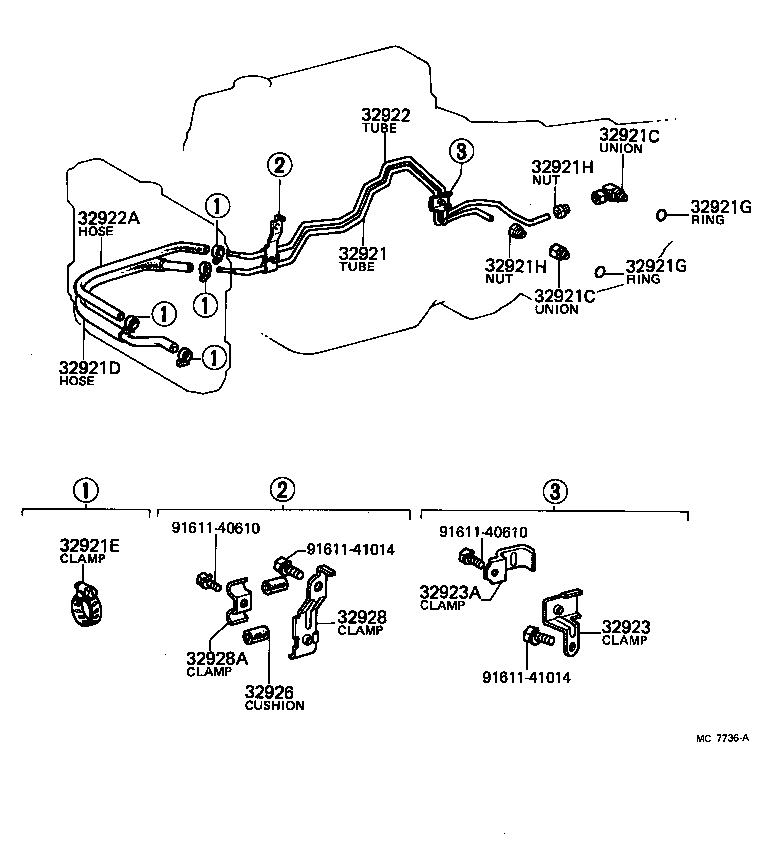

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921D 32921E 32921G 32921G 32921H 32921H 32922 32922A 32923 32923A 32926 32928 32928A 9161140610 9161140610 9161141014 9161141014
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-14120

SA63..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

MA61,RA60,61,65,SA63..4FC

RR

 1
90404-14007

MA61,RA60,61,65,SA63..4FC

FR

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

MA61,RA60,61,65,SA63..4FC

RR

 1
90404-14007

MA61,RA60,61,65,SA63..4FC

FR

 1
32921D - HOSE(FOR OIL COOLER INLET)
32942-14030

RA60,61,65,SA63..4FC

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

MA61,RA60,61,65,SA63,TA60..ATM

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

MA61,RA60,61,65,SA63,TA60..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

MA61,RA60,61,65,SA63,TA60..ATM

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

MA61,RA60,61,65,SA63,TA60..ATM

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

MA61,RA60,61,65,SA63,TA60..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-14120

SA63..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-14274

SA63..4FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-14020

SA63..4FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32929-30060

SA63..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

SA63,TA60..ATM

L=25,ID=8

 2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-14010

SA63..4FC

 1
32928-14020

SA63..4FC

W/POWER STEERING

 1
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90462-12085

SA63..4FC

 1
Common parts
91611-40610
91611-41014
