SA63R-BCMSCQ (1983)

Toyota Celica

Production Aug 1983 - Aug 1984
Engine 2SC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP

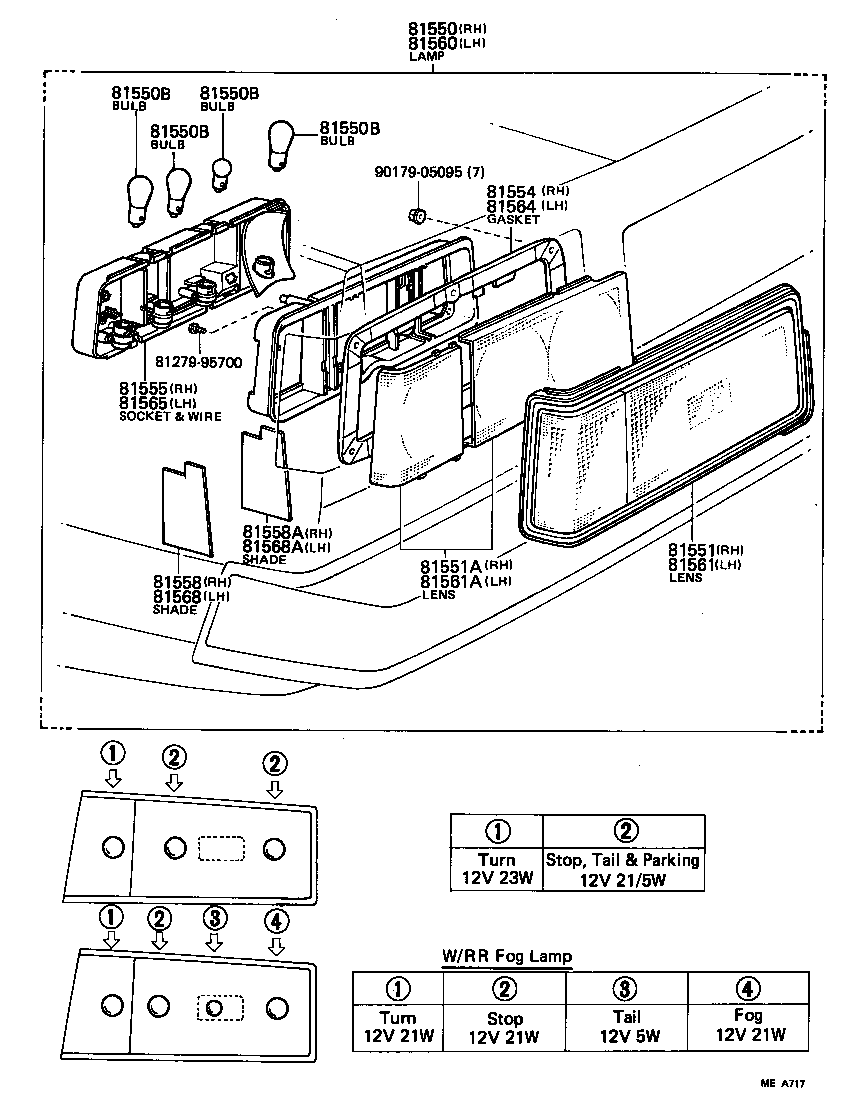

Click highlighted areas on diagram

diagram 8127995700 81550 81550B 81550B 81550B 81550B 81551 81551A 81554 81555 81558 81558A 81560 81561 81561A 81564 81565 81568 81568A 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80099

RA60,63,TA60..CP..(ARL,GEN,ME)

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AA63,MA61,RA6#,SA63,TA60

12V 21/5W,12V 21/5W

 4
99132-11230

MA61,RA60,63,TA60..ARL,GEN,ME,SAA

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AA63,MA61,RA6#,SA63,TA60

12V 21/5W,12V 21/5W

 4
99132-11230

MA61,RA60,63,TA60..ARL,GEN,ME,SAA

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AA63,MA61,RA6#,SA63,TA60

12V 21/5W,12V 21/5W

 4
99132-11230

MA61,RA60,63,TA60..ARL,GEN,ME,SAA

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AA63,MA61,RA6#,SA63,TA60

12V 21/5W,12V 21/5W

 4
99132-11230

MA61,RA60,63,TA60..ARL,GEN,ME,SAA

12V 23W,12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-14430

RA60,63,TA60..CP..(ARL,GEN,ME)

 1
81551A - LENS, REAR COMBINATION LAMP, RH
81552-14430

RA60,63,TA60..CP..(ARL,GEN,ME)

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-14430

AA63,RA6#,SA63,TA60..CP

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-14430

RA60,63,TA60..CP..(ARL,GEN,ME)

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80103

RA60,63,TA60..CP..(ARL,GEN,ME)

LICENSE LAMP=BUMPER

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-14430

RA60,63,TA60..CP..(ARL,GEN,ME)

 1
81561A - LENS, REAR COMBINATION LAMP, LH
81562-14430

RA60,63,TA60..CP..(ARL,GEN,ME)

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-14430

AA63,RA6#,SA63,TA60..CP

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-14430

RA60,63,TA60..CP..(ARL,GEN,ME)

 1
Common parts
81279-95700
90179-05095
