SA63R-BCMSCQ (1983)

Toyota Celica

Production Aug 1983 - Aug 1984
Engine 2SC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)2SC

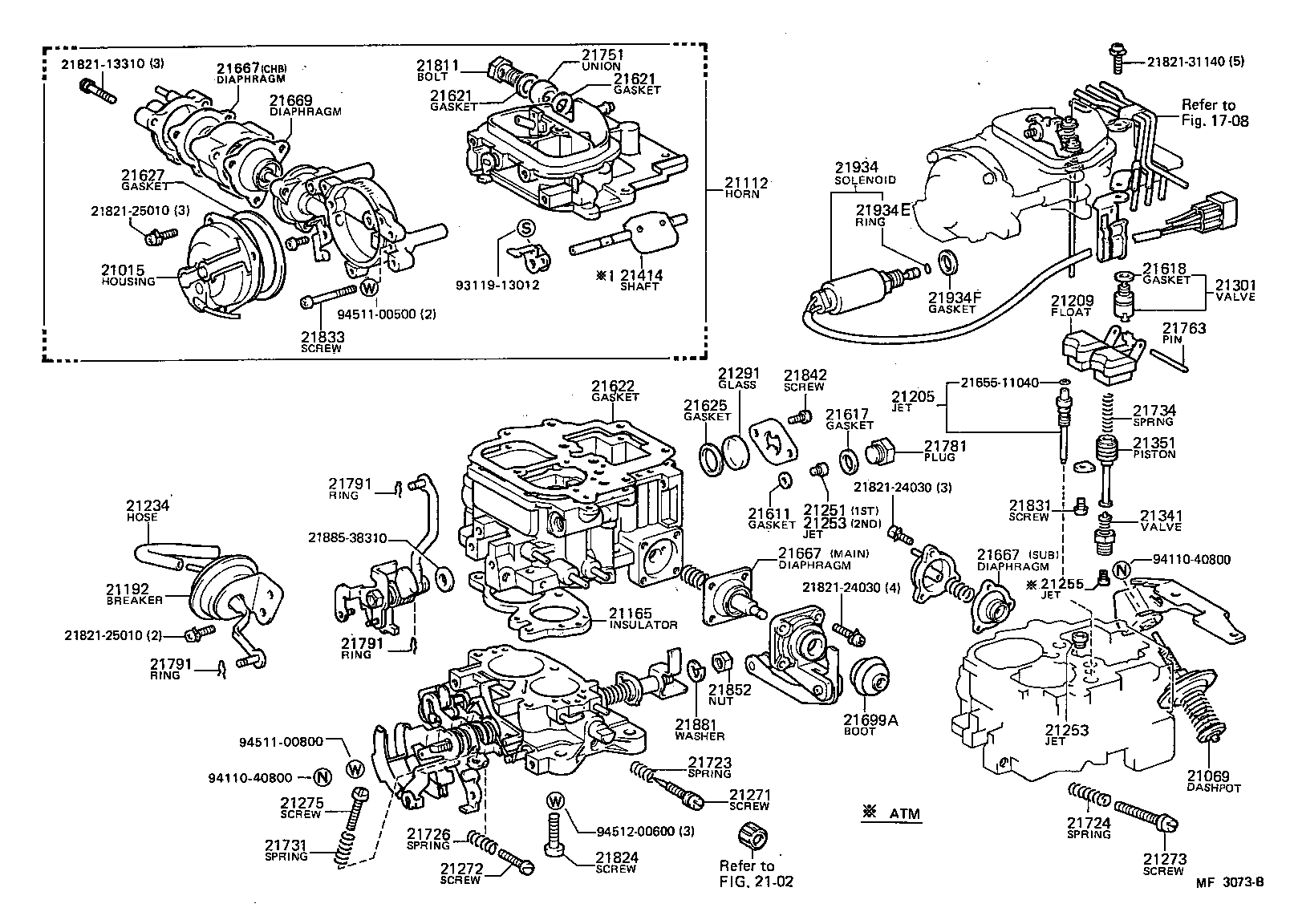

Click highlighted areas on diagram

diagram 1708 21015 2102 21069 21112 21165 21192 21205 21209 21234 21251 21253 21253 21255 21271 21272 21273 21275 21291 21301 21341 21351 21414 21611 21617 21618 21621 21621 21622 21625 21627 2165511040 21667 21667 21667 21669 21699A 21723 21724 21726 21731 21734 21751 21763 21781 21791 21791 21791 21811 2182113310 2182124030 2182124030 2182125010 2182125010 2182131140 21824 21831 21833 21842 21852 21881 2188538310 21934 21934E 21934F 9311913012 9411040800 9411040800 9451100500 9451100800 9451200600
Part # Description Qty Price
21015 - HOUSING SUB-ASSY, COIL
21015-63010

2SC..SA63

 1
21069 - DASH POT SUB-ASSY
21191-63010

2SC..SA63

 1
21112 - HORN, AIR
21112-74010

2SC..SA63

 1
21165 - INSULATOR
21165-63010

2SC..SA63

 1
21192 - BREAKER
21192-63060

2SC..SA63

 1
21205 - JET SUB-ASSY, SLOW
21205-74010

2SC..SA63

 1
21209 - FLOAT SUB-ASSY
21209-37041

2SC..SA63

 1
21234 - PIPE OR HOSE
95411-19930

2SC..SA63

*H,L=70

 1
21251 - JET, 1ST MAIN
90999-41118

2SC..SA63

ID=1.18

 1
21253 - JET, 2ND MAIN
21253-37040

2SC..SA63

 1
21253 - JET, 2ND MAIN
21253-37040

2SC..SA63

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21844-33010

2SC..SA63

 1
21272-71010

2SC..SA63

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-35210

2SC..SA63

 1
21275 - SCREW, ADJUSTING
21273-38010

2SC..SA63

 1
21291 - GLASS, LEVEL GAGE
21291-34320

2SC..SA63

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-35010

2SC..SA63

 1
21341 - VALVE, POWER
21304-30010

2SC..SA63

 2
21351 - PISTON, POWER
21351-37040

2SC..SA63

 1
21414 - SHAFT, CHOKE
21054-37040

2SC..SA63

 1
21611 - GASKET, MAIN JET
21611-22010

2SC..SA63

 4
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

2SC..SA63

 4
21618 - GASKET, NEEDLE VALVE SEAT
21618-14010

2SC..SA63

 2
21621 - GASKET, UNION NIPPLE
21633-24030

2SC..SA63

 2
21621 - GASKET, UNION NIPPLE
21633-24030

2SC..SA63

 2
21622 - GASKET, AIR HORN
21622-63010

2SC..SA63

 1
21625 - GASKET, LEVEL GAGE
21655-60200

2SC..SA63

 2
21627 - GASKET, COIL HOUSING
21627-28150

2SC..SA63

 1
21667 - DIAPHRAGM
21667-63010

2SC..SA63

*CHB

 1
21667-63020

2SC..SA63

MAIN

 1
21667 - DIAPHRAGM
21667-63010

2SC..SA63

*CHB

 1
21667-63020

2SC..SA63

MAIN

 1
21667 - DIAPHRAGM
21667-63010

2SC..SA63

*CHB

 1
21667-63020

2SC..SA63

MAIN

 1
21669 - DIAPHRAGM
21669-63010

2SC..SA63

 1
21699A - BOOT(FOR ACCELERATION PUMP)
21699-37040

2SC..SA63

 1
21723 - SPRING, IDLE ADJUSTING
21723-37040

2SC..SA63

 1
21724 - SPRING, THROTTLE ADJUSTING
21723-38330

2SC..SA63

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-38310

2SC..SA63

 2
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21726-38310

2SC..SA63

 1
21734 - SPRING, POWER PISTON
21734-33080

2SC..SA63..5F

 1
21751 - UNION, NIPPLE
21894-63010

2SC..SA63

 1
21763 - PIN, FLOAT LEVER
21763-34320

2SC..SA63

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

2SC..SA63

 9
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

2SC..SA63

 9
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

2SC..SA63

 9
21811 - BOLT, UNION NIPPLE
21811-11060

2SC..SA63

 1
21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
93110-16035

2SC..SA63

 3
21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21833-33010

2SC..SA63

 4
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842-33010

2SC..SA63

 4
21852 - NUT, THROTTLE LEVER SET
21852-30010

2SC..SA63

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

2SC..SA63

 1
21934 - SOLENOID, THROTTLE VALVE
21062-74010

2SC..SA63

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

2SC..SA63

 2
21934F - GASKET
21617-10010

2SC..SA63

 2
Common parts
21655-11040
21821-13310
21821-24030
21821-25010
21821-31140
21885-38310
93119-13012
94110-40800
94511-00500
94511-00800
94512-00600
