SA63R-BCMSCQ (1983)

Toyota Celica

Production Aug 1983 - Aug 1984
Engine 2SC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)2SC

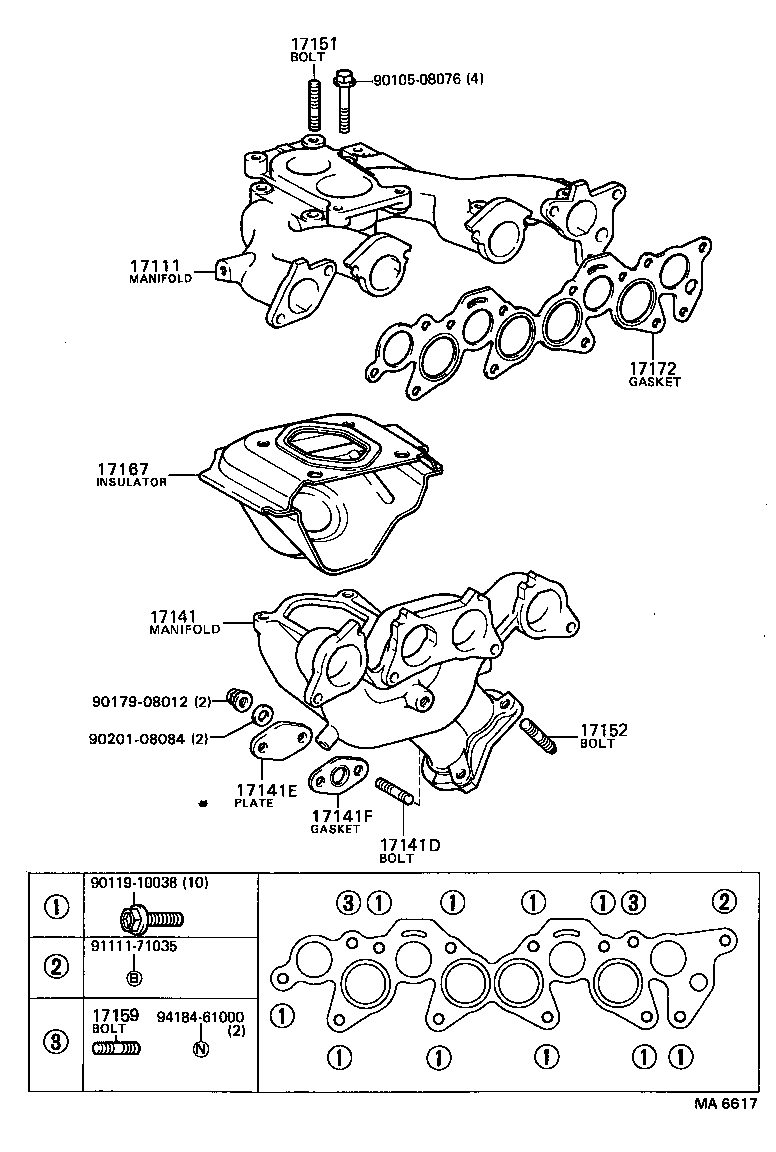

Click highlighted areas on diagram

diagram 17111 17141 17141D 17141E 17141F 17151 17152 17159 17167 17172 9010508076 9011910038 9017908012 9020108084 9111171035 9418461000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-74031

2SC..SA63

 1
17111-74030

2SC..SA63

 1
17141 - MANIFOLD, EXHAUST
17141-63030

2SC..SA63

 1
17141-63031

2SC..SA63

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-40832

2SC..SA63

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10123

2SC..SA63

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17902-74010

2SC..SA63

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-63010

2SC..SA63

 1
Common parts
90105-08076
90119-10038
90179-08012
90201-08084
91111-71035
94184-61000
