RA65R-BLPQEQ (1984)
Toyota Celica
Production
Aug 1984
-
Jul 1985
Engine
22REC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408-8502)22REC ; (8502-8507)22REC..5F

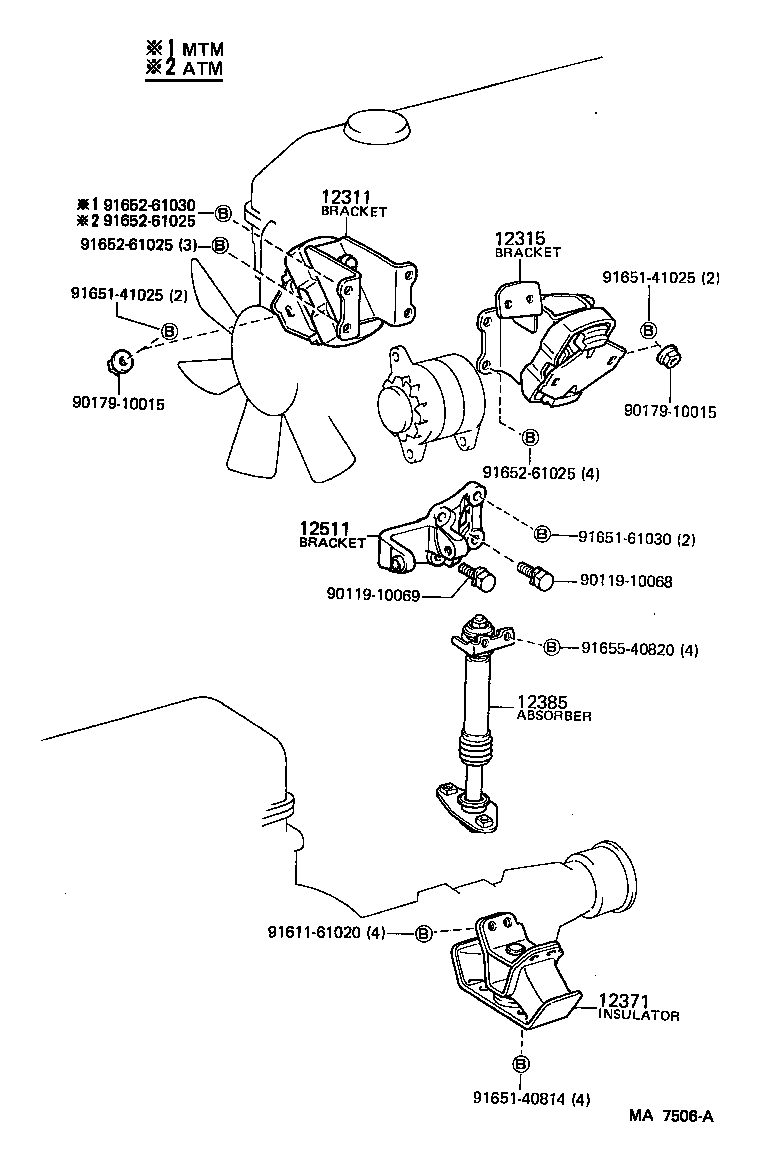

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-35150 |
22REC..RA65 |
1 | ||
| 12301-35170 |
22REC..RA65..4FC |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-35020 |
21R#,22REC..RA60,61,65 |
1 | ||
| 12302-35090 |
22REC..RA65..4FC |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
21R#,22REC..RA60,61,65 |
1 | ||
| 12385 - ABSORBER, ENGINE MOUNTING, NO.1 | ||||
| 12308-35030 |
22REC..RA65 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-35030 |
21R#,22REC..RA6# |
1 | ||
| Common parts | ||||
| 90119-10068 | ||||
| 90119-10069 | ||||
| 90179-10015 | ||||
| 91611-61020 | ||||
| 91651-40814 | ||||
| 91651-41025 | ||||
| 91651-61030 | ||||
| 91652-61025 | ||||
| 91652-61030 | ||||
| 91655-40820 | ||||
(8502-8507)21R# ; (8502-8507)22REC..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-35150 |
22REC..RA65 |
1 | ||
| 12301-35170 |
22REC..RA65..4FC |
1 | ||
| 12312 - BRACKET, ENGINE MOUNTING, FRONT NO.2 | ||||
| 12312-35010 |
22REC..RA65..4FC RH |
1 | ||
| 12316-35010 |
22REC..RA65..4FC LH |
1 | ||
| 12312 - BRACKET, ENGINE MOUNTING, FRONT NO.2 | ||||
| 12312-35010 |
22REC..RA65..4FC RH |
1 | ||
| 12316-35010 |
22REC..RA65..4FC LH |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-35020 |
21R#,22REC..RA60,61,65 |
1 | ||
| 12302-35090 |
22REC..RA65..4FC |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-63010 |
22REC..RA65..4FC |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-63010 |
22REC..RA65..4FC |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
21R#,22REC..RA60,61,65 |
1 | ||
| 12385 - ABSORBER, ENGINE MOUNTING, NO.1 | ||||
| 12308-35030 |
22REC..RA65 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-35030 |
21R#,22REC..RA6# |
1 | ||
| Common parts | ||||
| 90119-10068 | ||||
| 90119-10069 | ||||
| 90179-10015 | ||||
| 91611-61020 | ||||
| 91651-40814 | ||||
| 91651-41025 | ||||
| 91651-61030 | ||||
| 91652-61025 | ||||
| 91652-61030 | ||||
| 91655-40820 | ||||
