RA65R-BCMSEQ (1984)

Toyota Celica

Production Aug 1984 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP

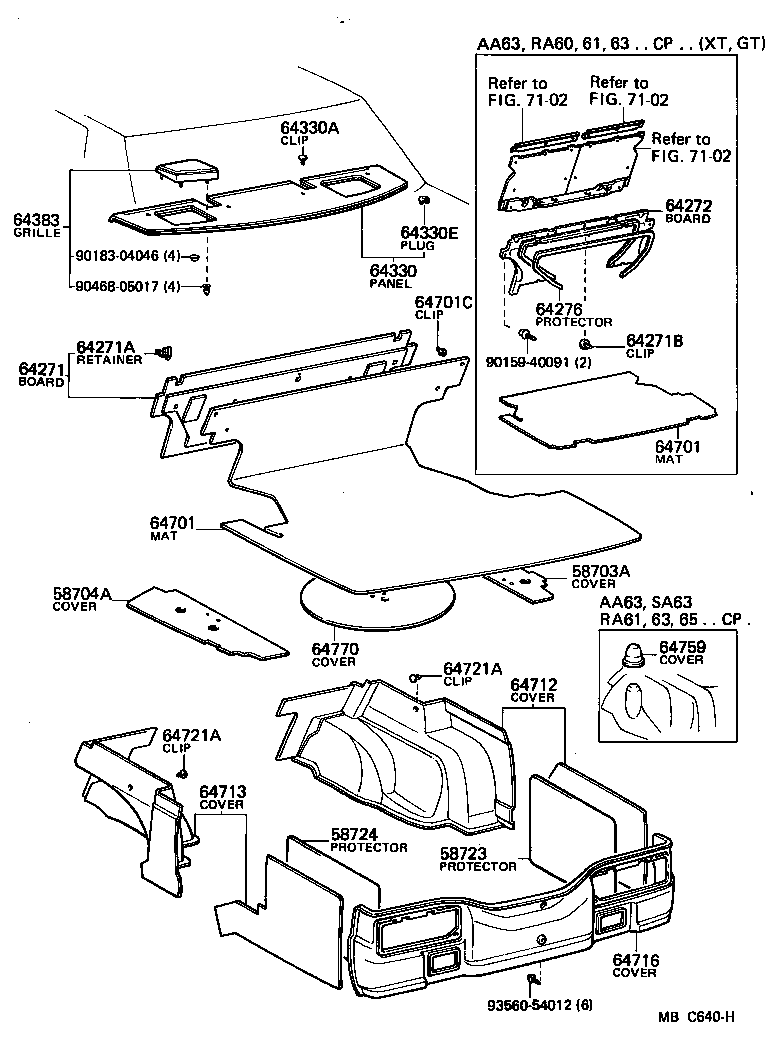

Click highlighted areas on diagram

diagram 58703A 58704A 58723 58724 64271 64271A 64271B 64272 64276 64330 64330A 64330E 64383 64701 64701 64701C 64712 64713 64716 64721A 64721A 64759 64770 7102 7102 7102 9015940091 9018304046 9046805017 9356054012
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-14030

AA63,RA6#,SA63,TA60..CP

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-14050

AA63,RA6#,SA63,TA60..CP

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-1434001

RA60,65,SA63..ST..ARL

BLACK,BLACK,TRIM2#

 1
64330-1434006

RA60,65,SA63..ST..ARL

DARK BROWN,BROWN,TRIM4#

 1
64330-1434004

RA60,65,SA63..ST..ARL

BLUE,BLUE,TRIM8#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0914416

RA6#,TA60..CP

DARK BROWN,BROWN,TRIM4#

 4
90467-0914401

RA6#,TA60..CP

BLACK,BLACK,TRIM2#

 4
90467-0914414

RA6#,TA60..CP

BLUE,BLUE,TRIM8#

 4
64330E - PLUG(FOR PACKAGE TRAY TRIM PANEL)
90950-0119814

RA60,65,SA63..ST..ARL

BLUE,BLUE,TRIM8#

 2
90950-0119826

RA60,65,SA63..ST..ARL

DARK BROWN,BROWN,TRIM4#

 2
90950-0119801

RA60,65,SA63..ST..ARL

BLACK,BLACK,TRIM2#

 2
64701C - CLIP(FOR LUGGAGE COMPARTMENT MAT)
90467-0715803

AA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)

GRAY,GRAY

 2
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64071-14060

AA63,RA61,65,SA63..CP..(GTS,ST)

 1
64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH
64072-14040

AA63,RA61,65,SA63..CP..(GTS,ST)

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0715803

AA63,RA6#,SA63,TA60..CP

GRAY,GRAY

 2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0715803

AA63,RA6#,SA63,TA60..CP

GRAY,GRAY

 2
64759 - COVER, SHOCK ABSORBER HEAD
58731-22020

AA63,RA61,63,65,SA63..CP

 2
64770 - COVER ASSY, SPARE WHEEL
64770-14010

AA63,RA6#,TA60..CP

 1
Common parts
90159-40091
90183-04046
90468-05017
93560-54012
Linked diagrams
7102
